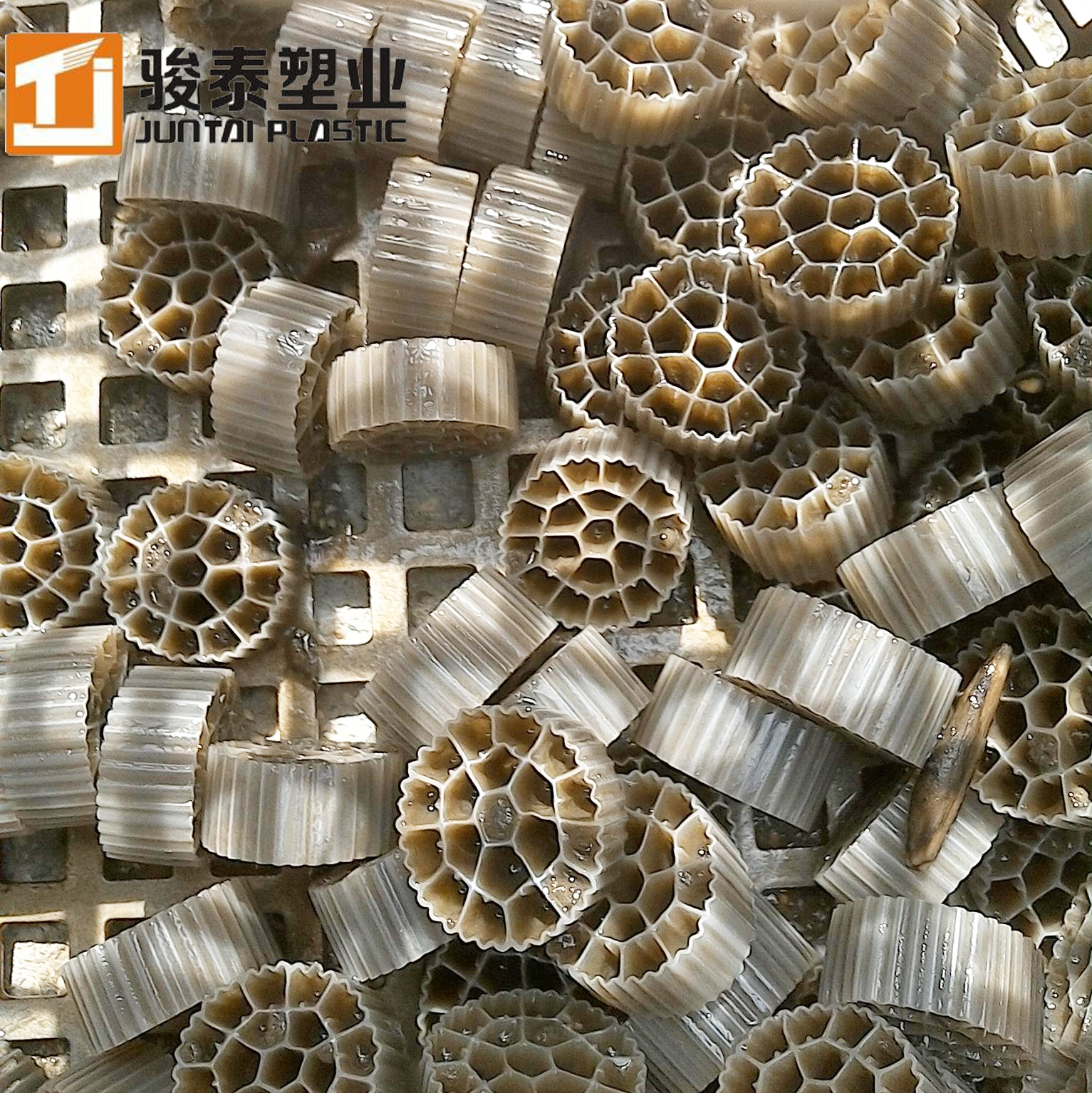

- Type:MBBR06
- Hole:6rooms
- Surface Area:more than 1000m2/m3
- Porosity:85%
- Material:HDPE
- Color:White
- Usage:Wastewater treatment
- Condition:New
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:More than 5 years
- Warranty:More than 5 years
- After-sales Service Provided:Online support
- Place of Origin:CN;ANH
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Retail
- Applicable Industries:Construction works
- Applicable Industries:Sewage treatment plant
- Core Components:HDPE
- Brand Name:JUNTAI
- Material:woven bag
- Weight:125kg/cbm
- Size:16*10mm
- Productivity:70000m3/year

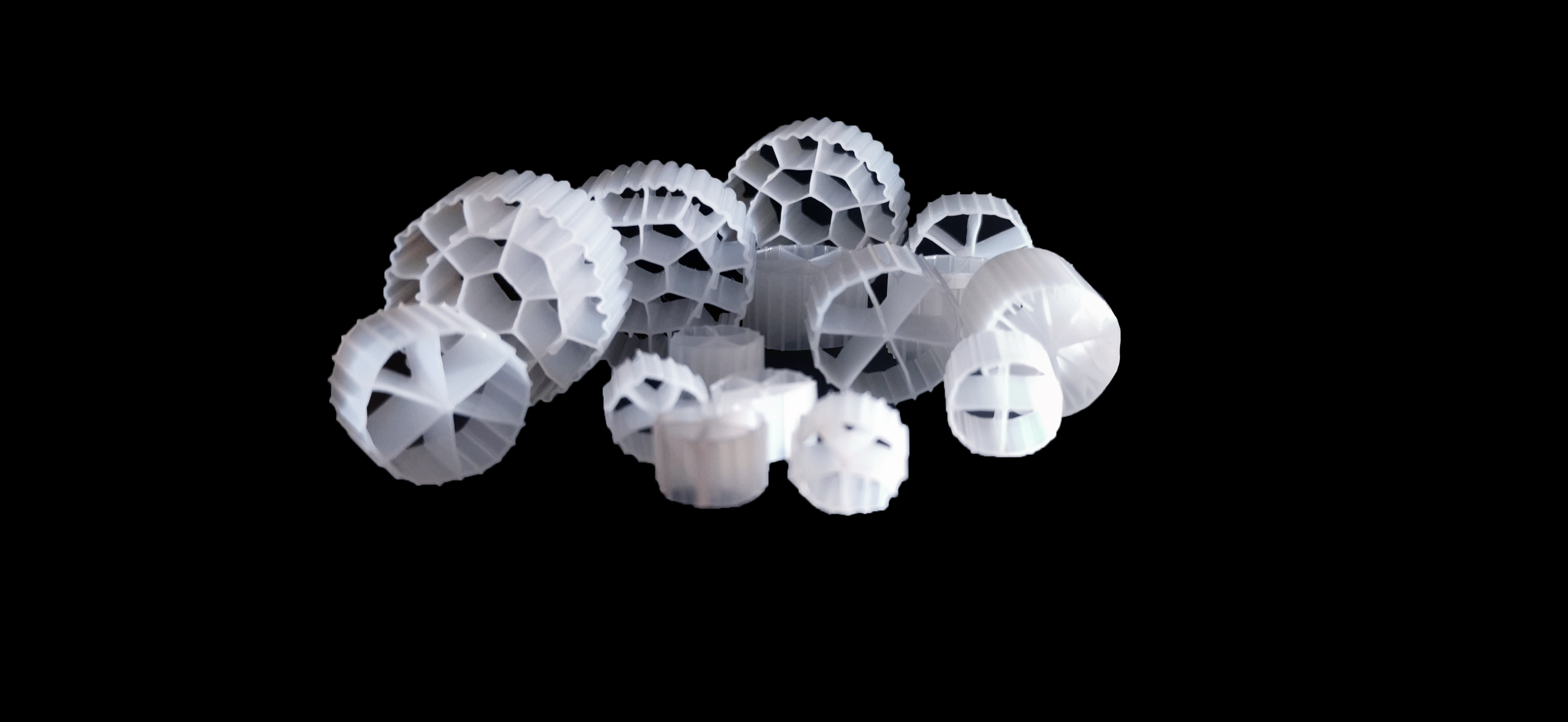

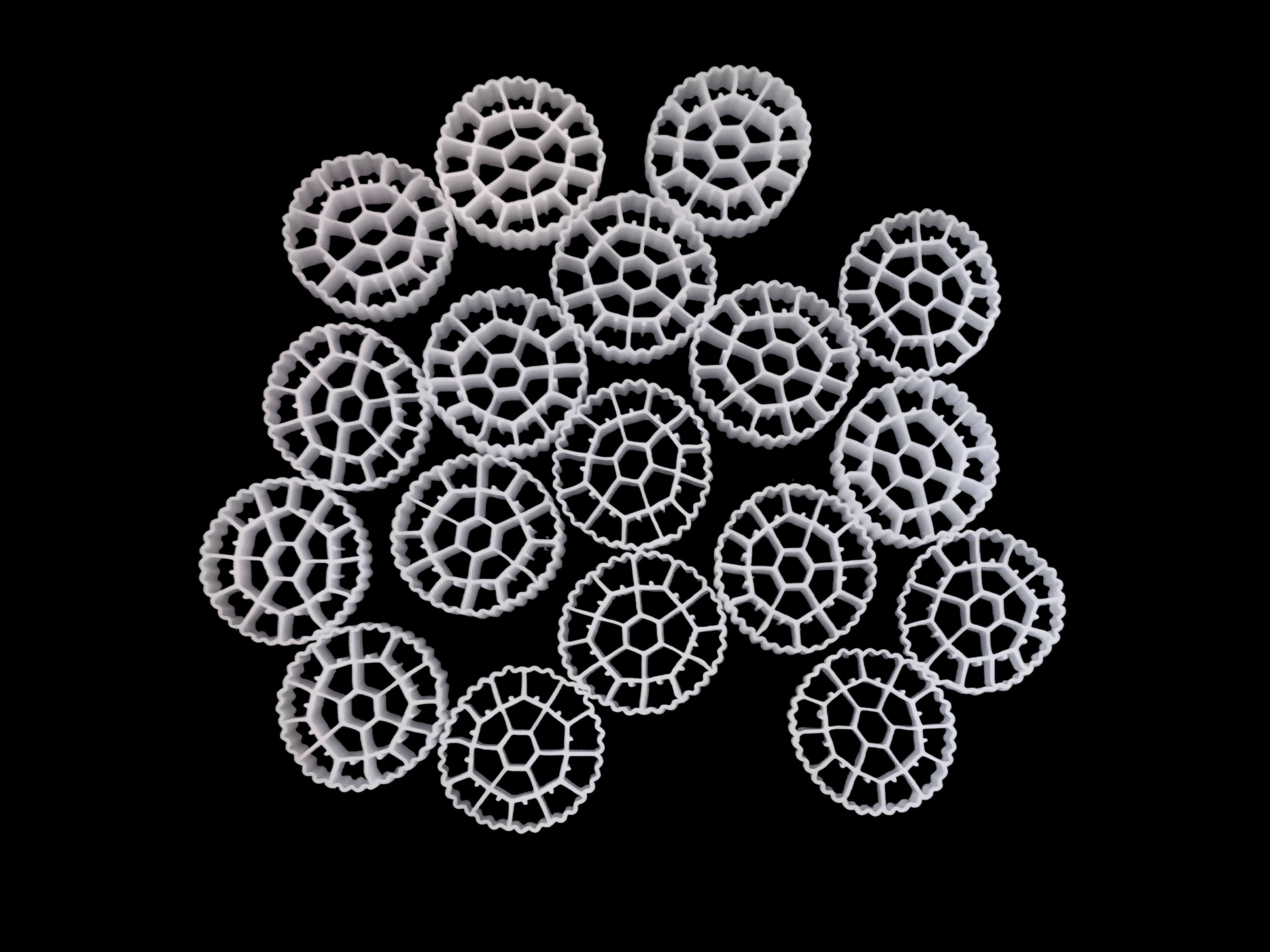

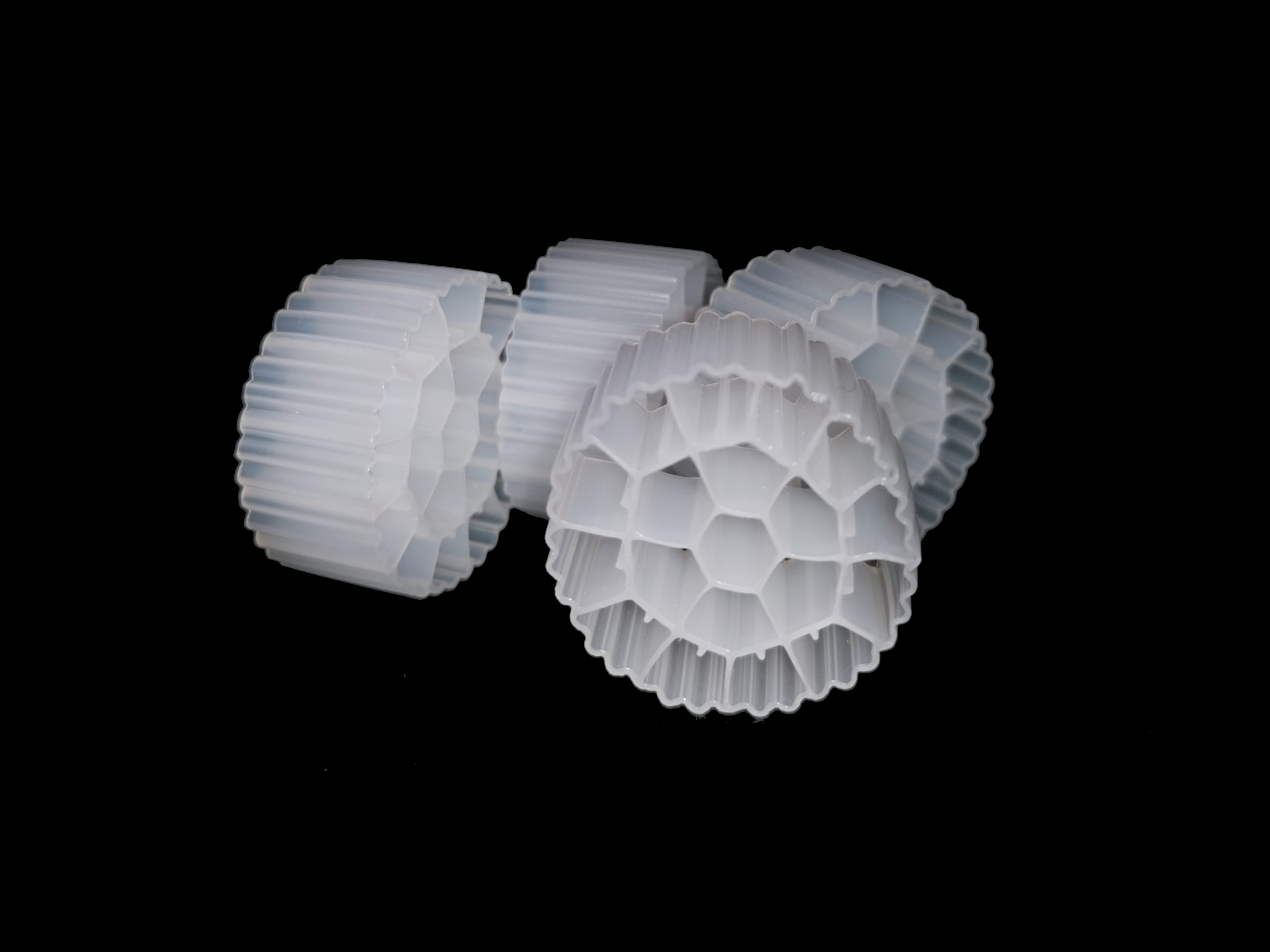

Product Description

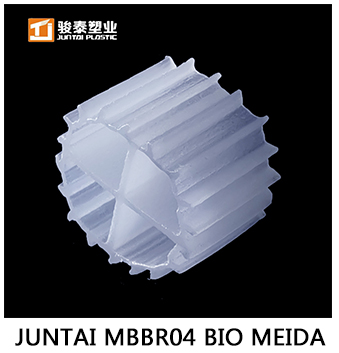

Product Parameter
Size:11*7mm
Hole:4 rooms
Surface Area: More than 900m2/m3

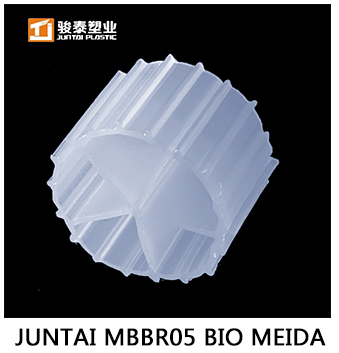

Size:11*7mm
Hole:5 rooms
Surface Area: More than 1000m2/m3

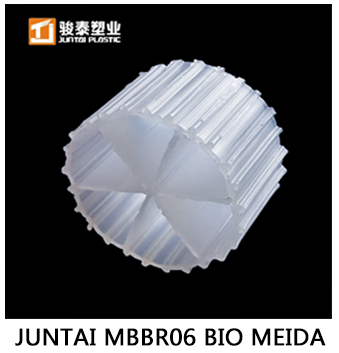

Size:16*10mm
Hole:6rooms
Surface Area:More than 800m2/m3

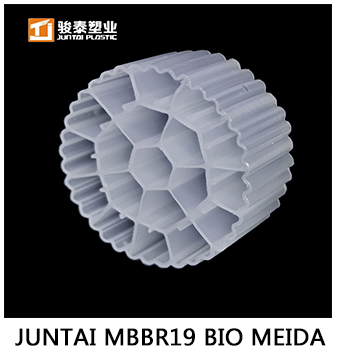

Size:25*10mm
Hole:19 rooms
Surface Area:More than550m2/m3
Size:15*15mm
Hole: 40 rooms
Surface Area: More than900m2/m3
Size:25*10mm
Hole: 19 rooms
Surface Area: More than550m2/m3
Porosity: | 85% |
Doing Ritio: | 15-65% |
Membrane-formng Time: | 3-15days |
gNH4N/M3.d | 400-1200 |
gBOD5/M3.d | 2000-10000 |
gCOD5/M3.d | 2000-15000 |
Applicable temperature: | 5-60℃ |
Life-span: | >15years |
Material: | HDPE |
Product Advantages
1.Characteristics of fillers
2.Good denitrification ability
3.High sludge concentration in the reactor
4.Easy to maintain and manage

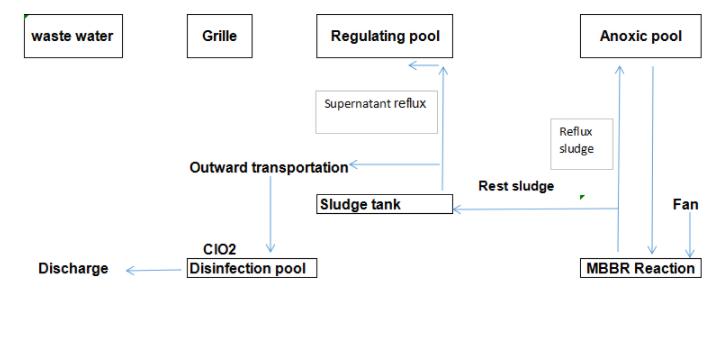

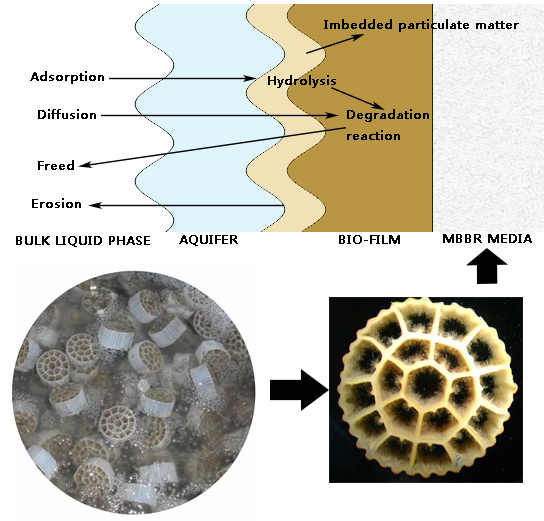

Working Principle
The principle of MBBR process is to use the basic principle of biofilm method, by adding a certain number of suspended carriers to the reactor to improve the biomass and biological species in the reactor, so as to improve the treatment efficiency of the reactor. Because the density of the filler is close to that of water, it is completely mixed with water during aeration, and the growth environment of microorganisms is gas, liquid and solid.The collision and shearing of the carrier in water make the air bubbles smaller and increase the utilization rate of oxygen. In addition, there are different biological species inside and outside each carrier, with some anaerobes or facultative bacteria growing inside and aerobic bacteria on the outside, so that each carrier is a micro-reactor, so that nitrification and denitrification exist at the same time. As a result, the treatment effect is improved.
Application Field
1. Industrial Sewage

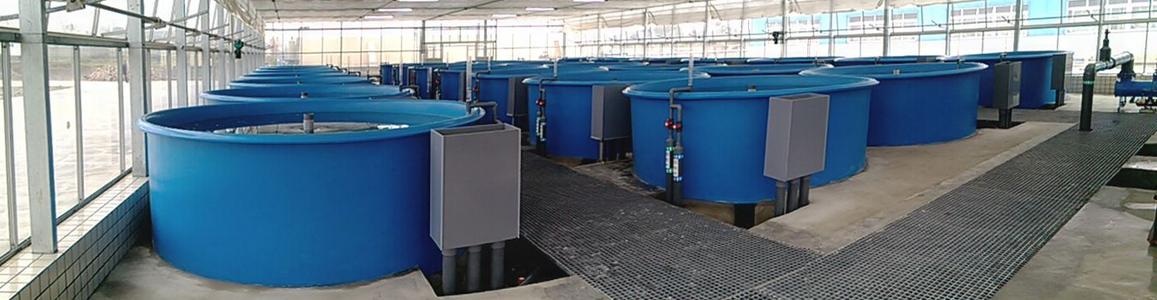

2.Recirculating Aquaculture Systems(RAS)

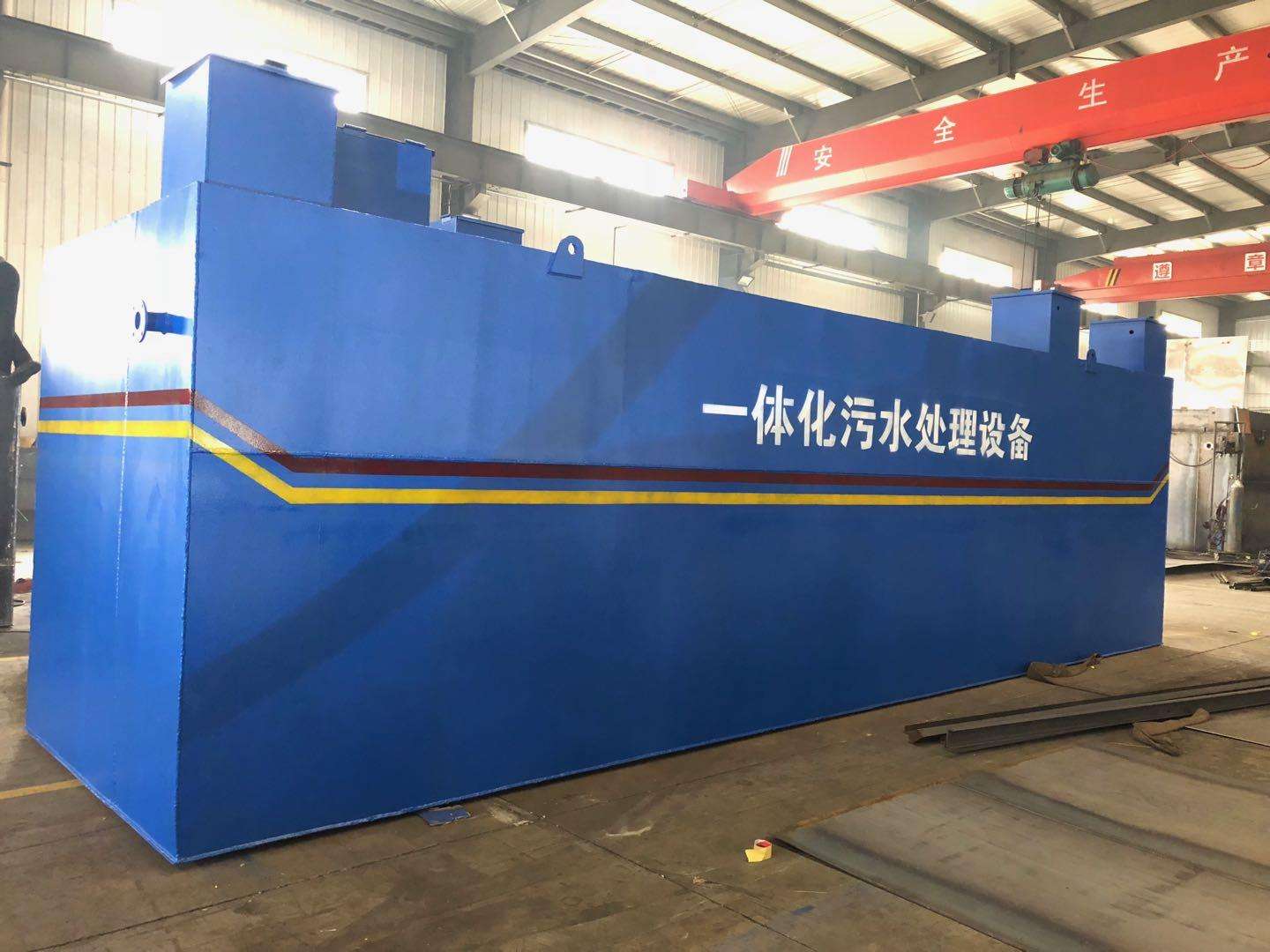

3.Integrated Equipment
4.Oxidation Ditch Process
5.Activated Sludge Modification Process

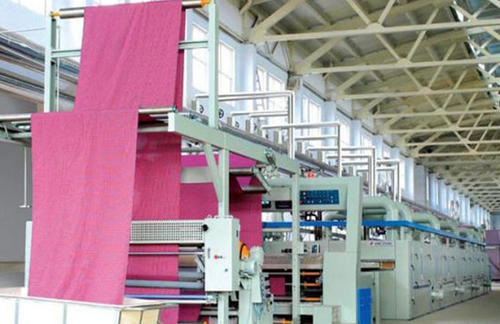

6.Textile Dyeing Industry

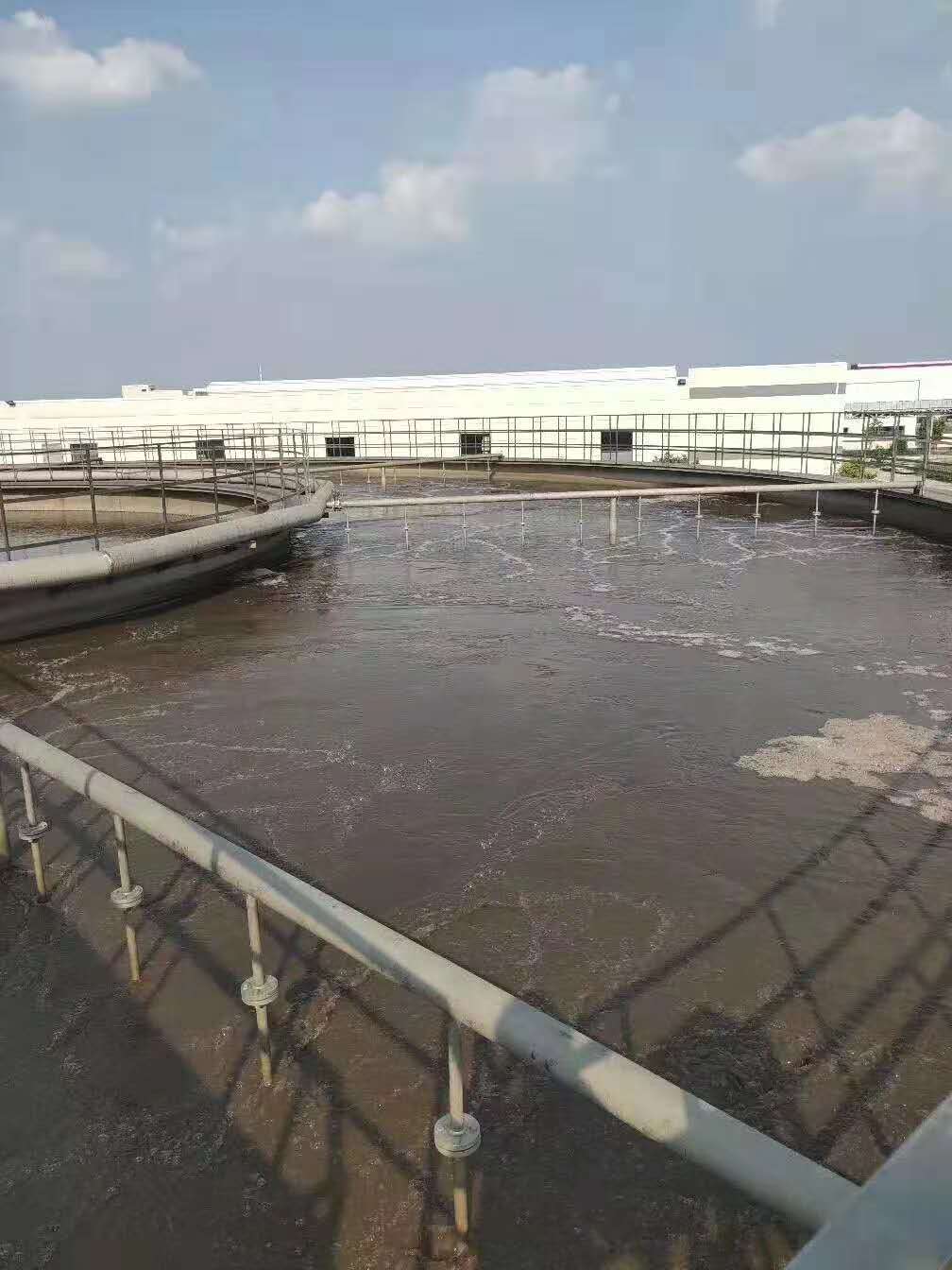

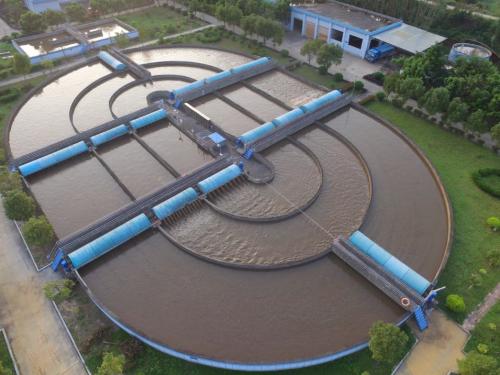

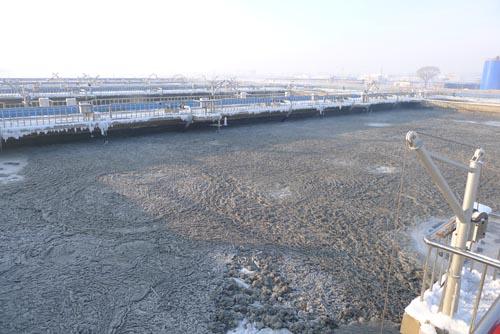

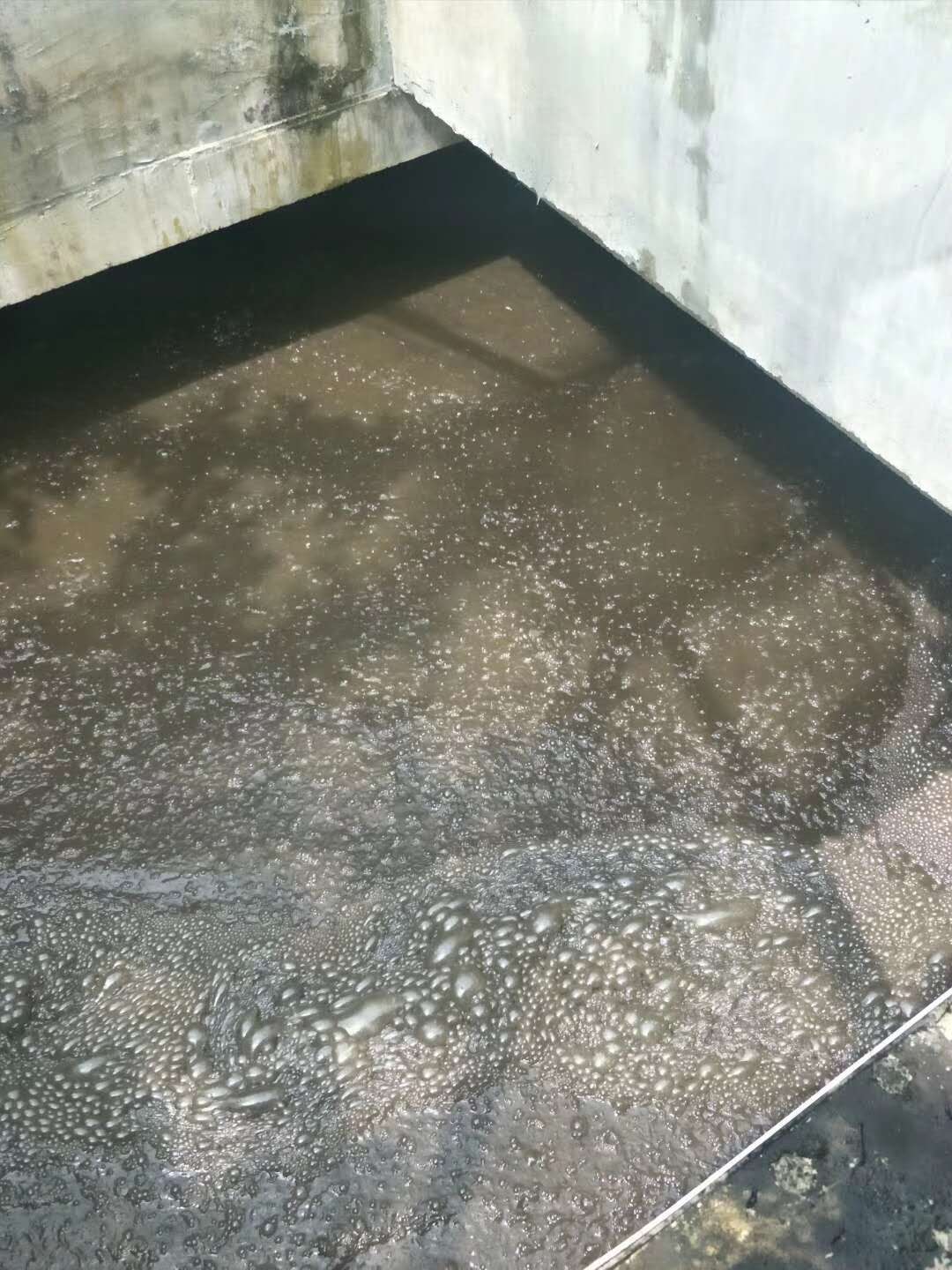

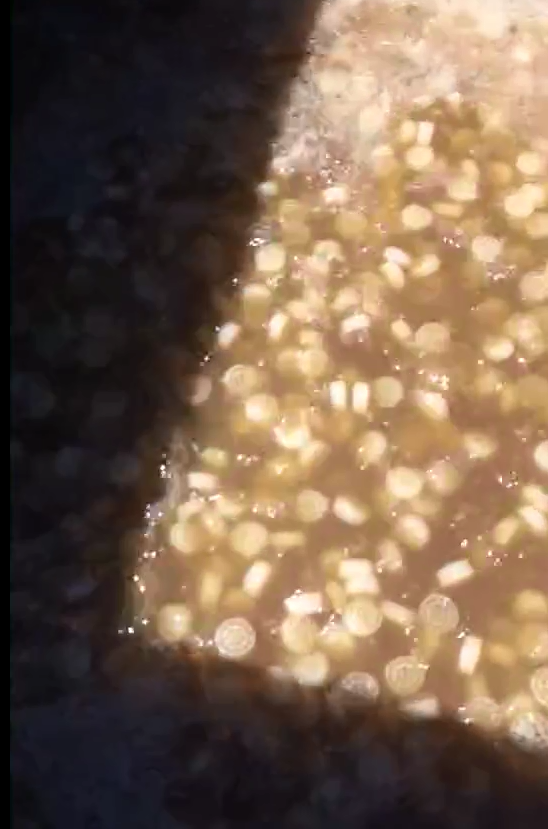

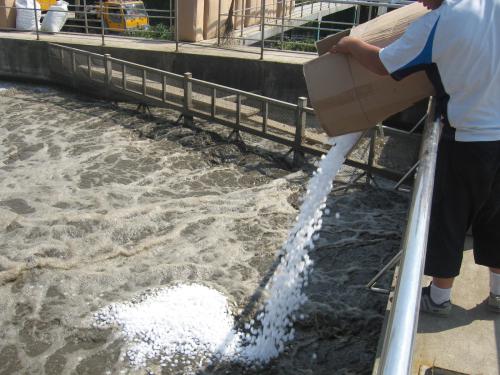

Project Cases

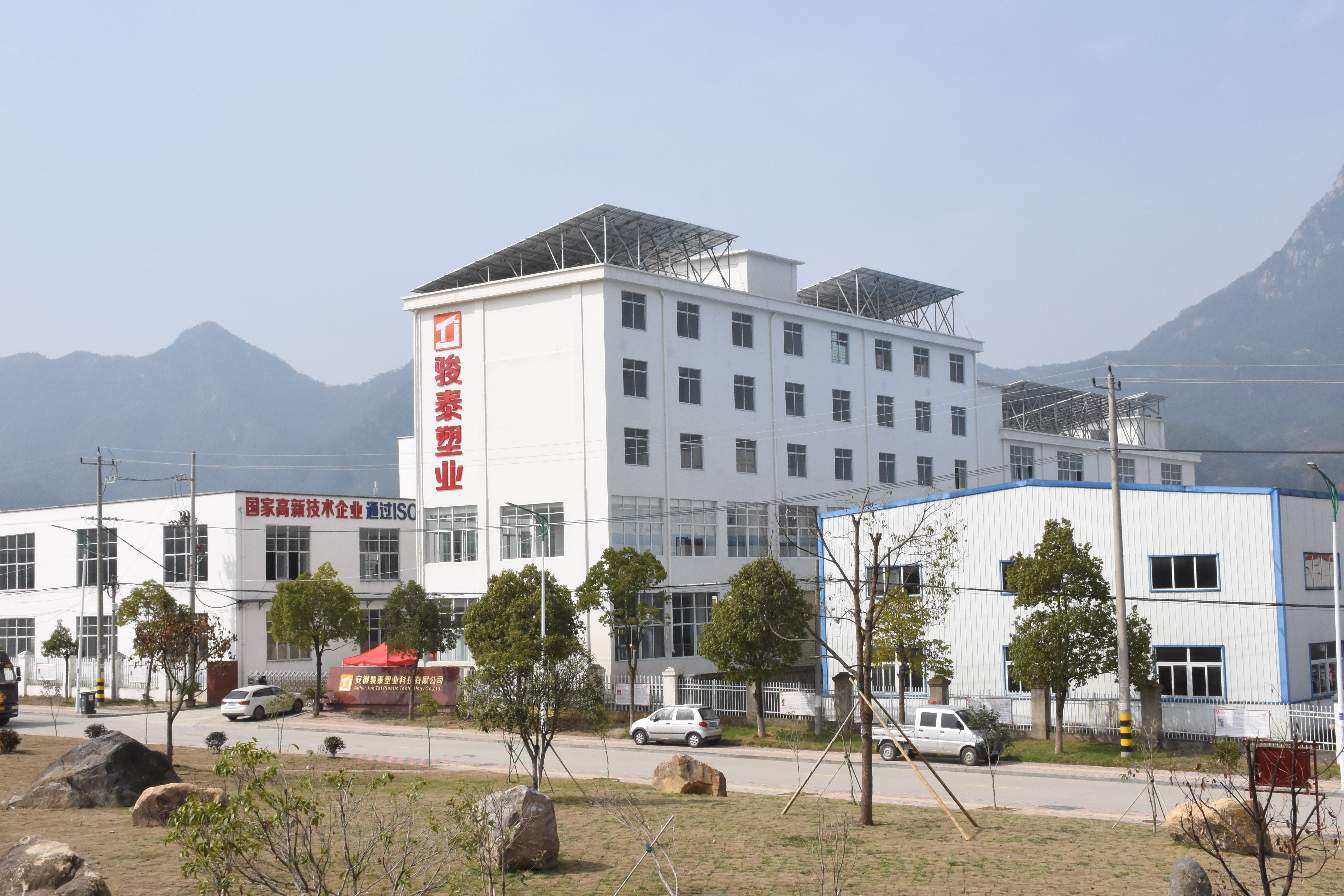

Company Profile
ABOUT COMPANY
Hangzhou Juntai Plastic Products Co. Ltd. , was founded in 2013 in Hangzhou.After Three years,We established factory Anhui Juntai Technology Co., Ltd in Anhui. we won the National high-tech enterprise in 2019 and has 29 patents for MBBR and pvc profiles.Now we become one of leader manufacturer for MBBR Bio Filter Media and PVC profiles.With 21000 m2 factory in Yuexi Anhui; 105 High speed automatic extruded lines and 30 injection lines, The annual capacity of MBBR is more than 70000 CBM; the annual Capacity of PVC profiles and injection parts is more than 5000 tons. High quality with ISO9001-2015, SGS, ROHS and other certifications. With 63 young people with full of passion of Juntai company and try to offer the best plastic goods to the world. Here we have 11 engineers teams of plastic and water treatment, we can design the plastic items for customers. Juntai MBBR Biofilter media widely used in waste water treatment; RAS and other field. With professional environmental engineers , cooperated with three China Universities to ensure high quality while ensuring better service. Juntai products have been exported more than 36 countries, including USA, Sweden, Malaysia, etc. The annual sale more is $15 million. Choose Juntai, and Juntai people will return back you full satisfied.

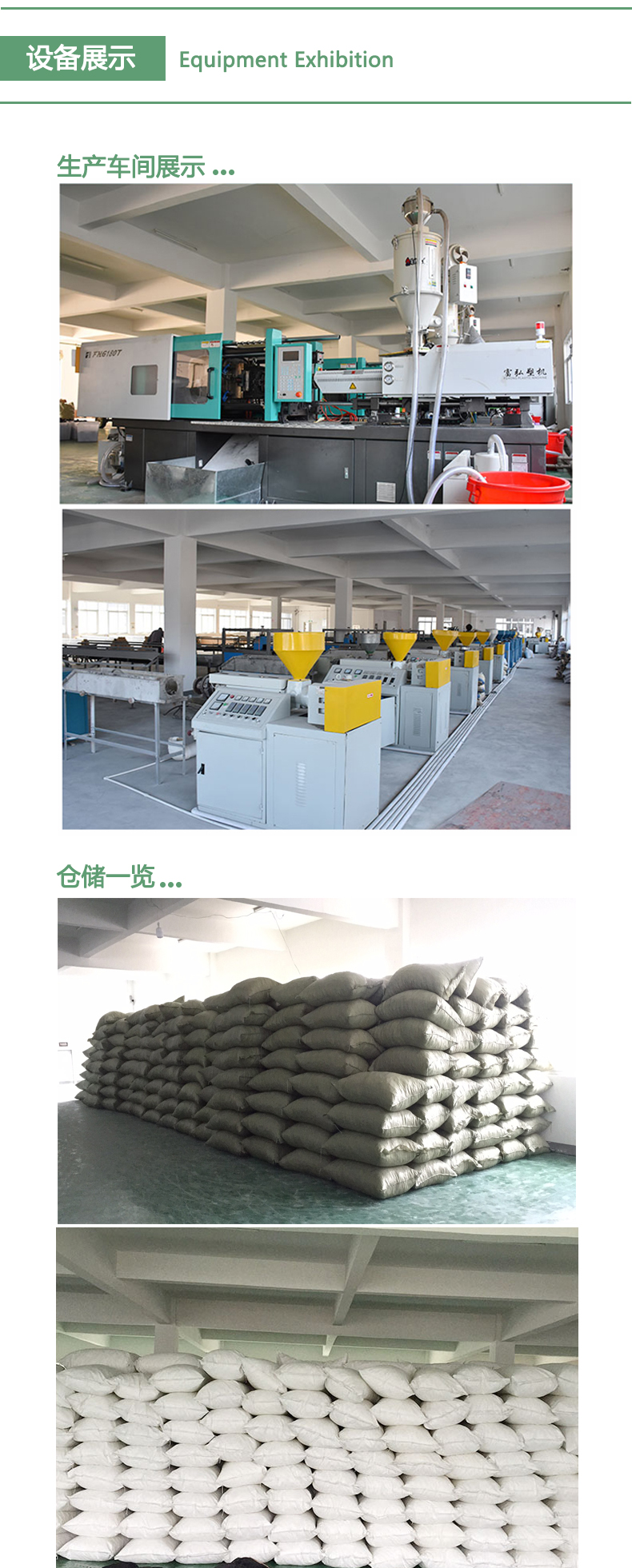

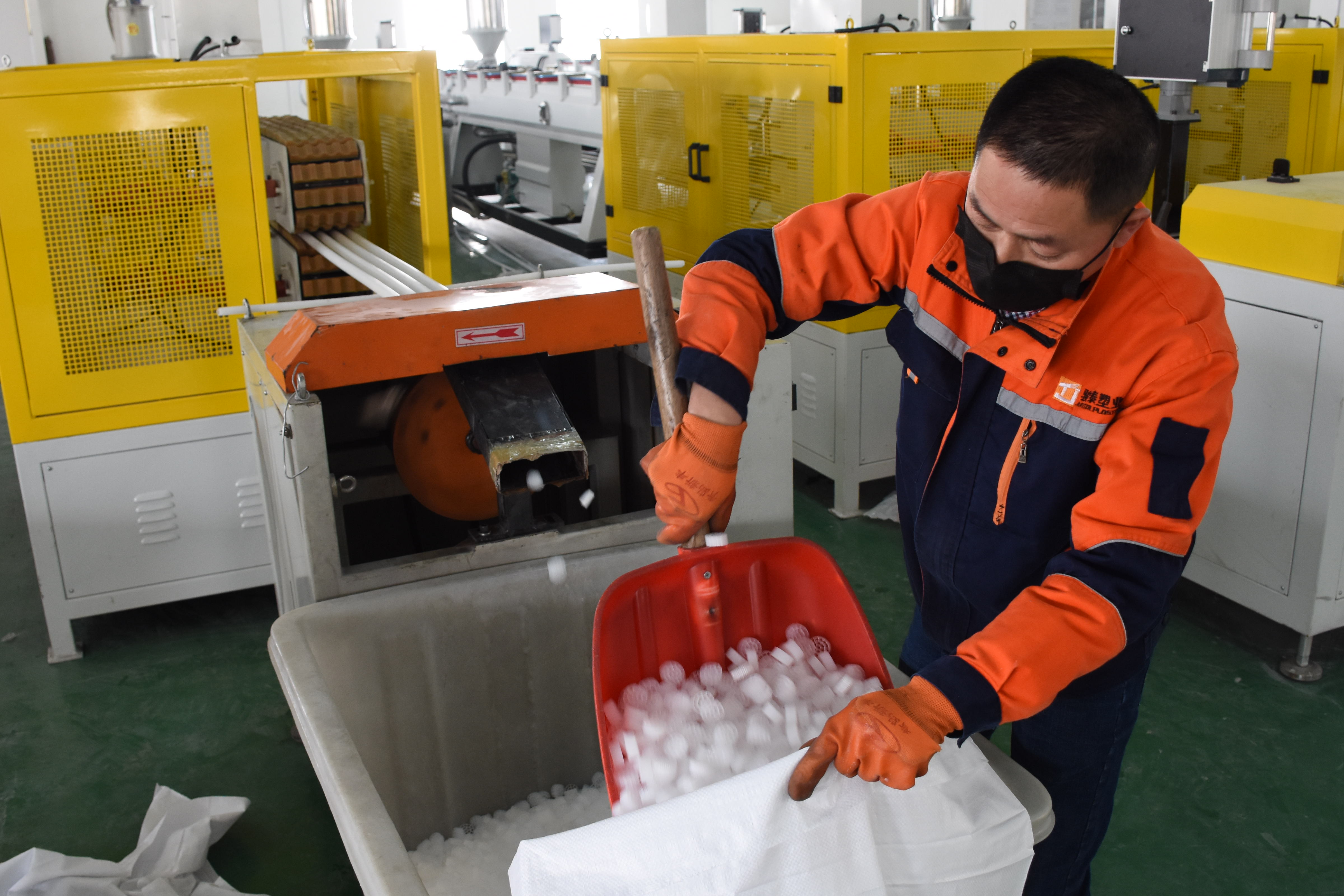

Equipments Exhibition

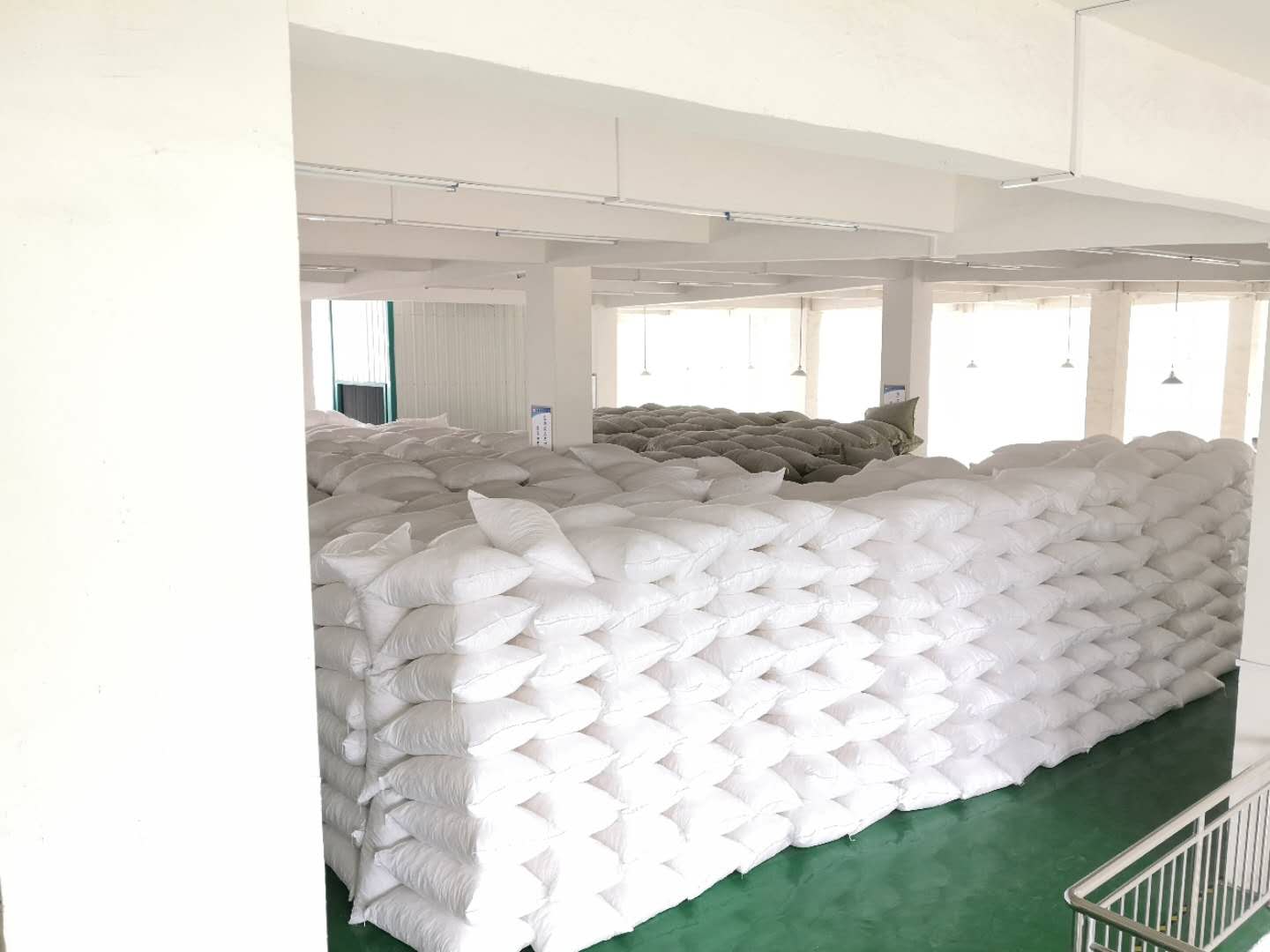

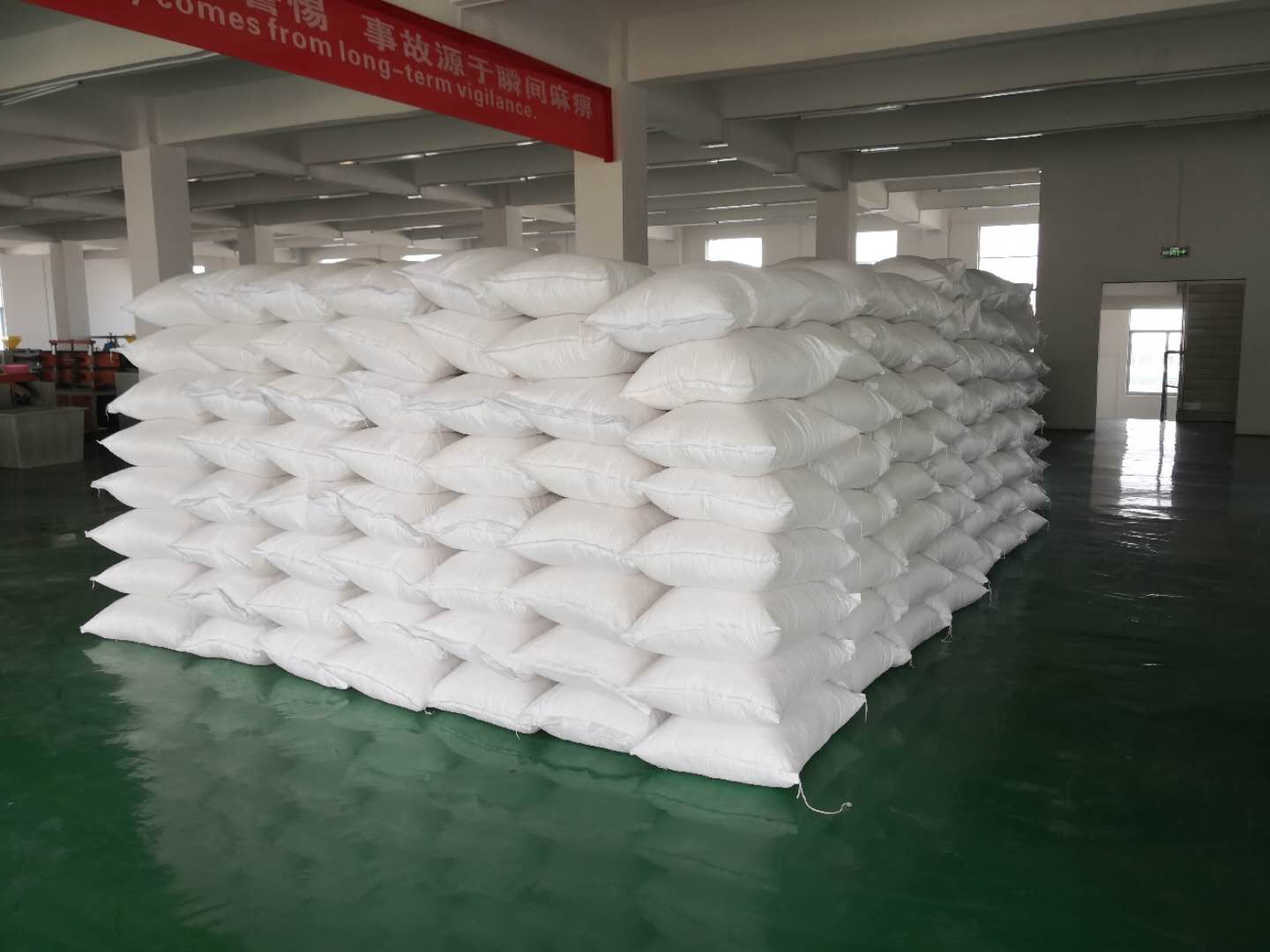

Inventory Display

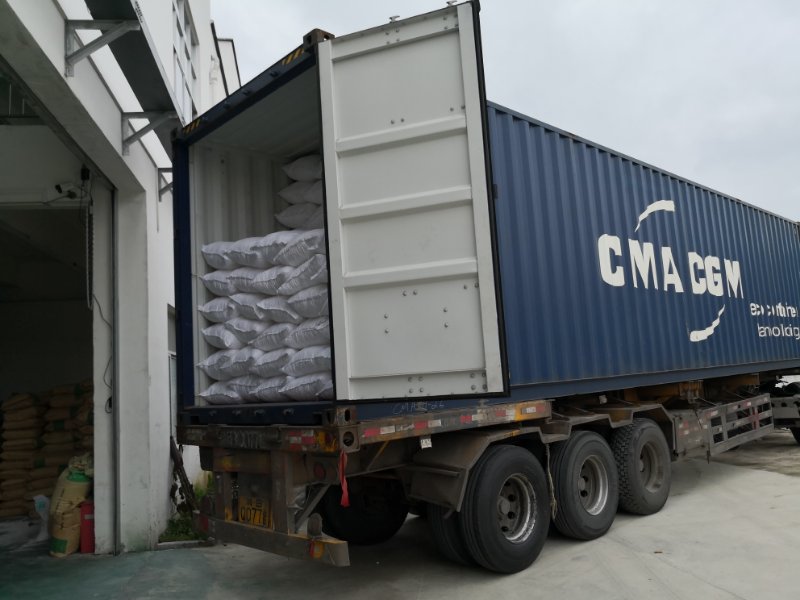

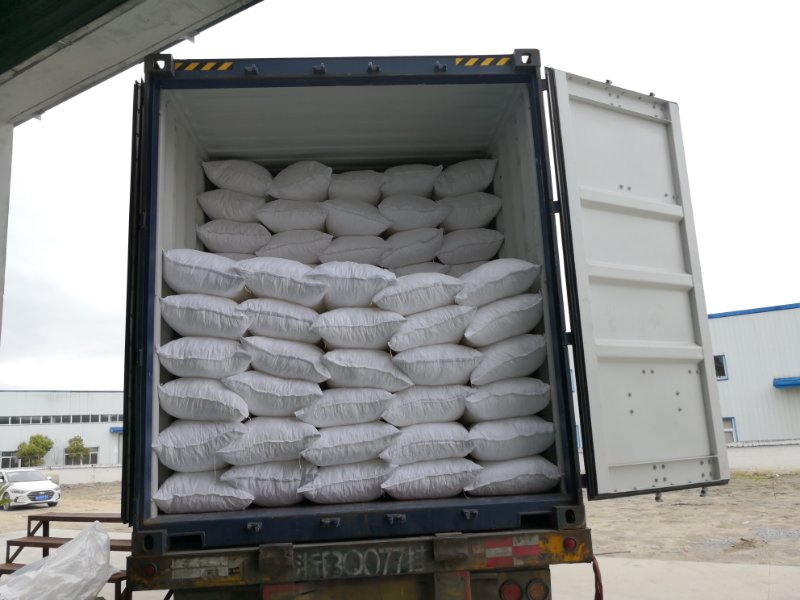

Transport Logistics

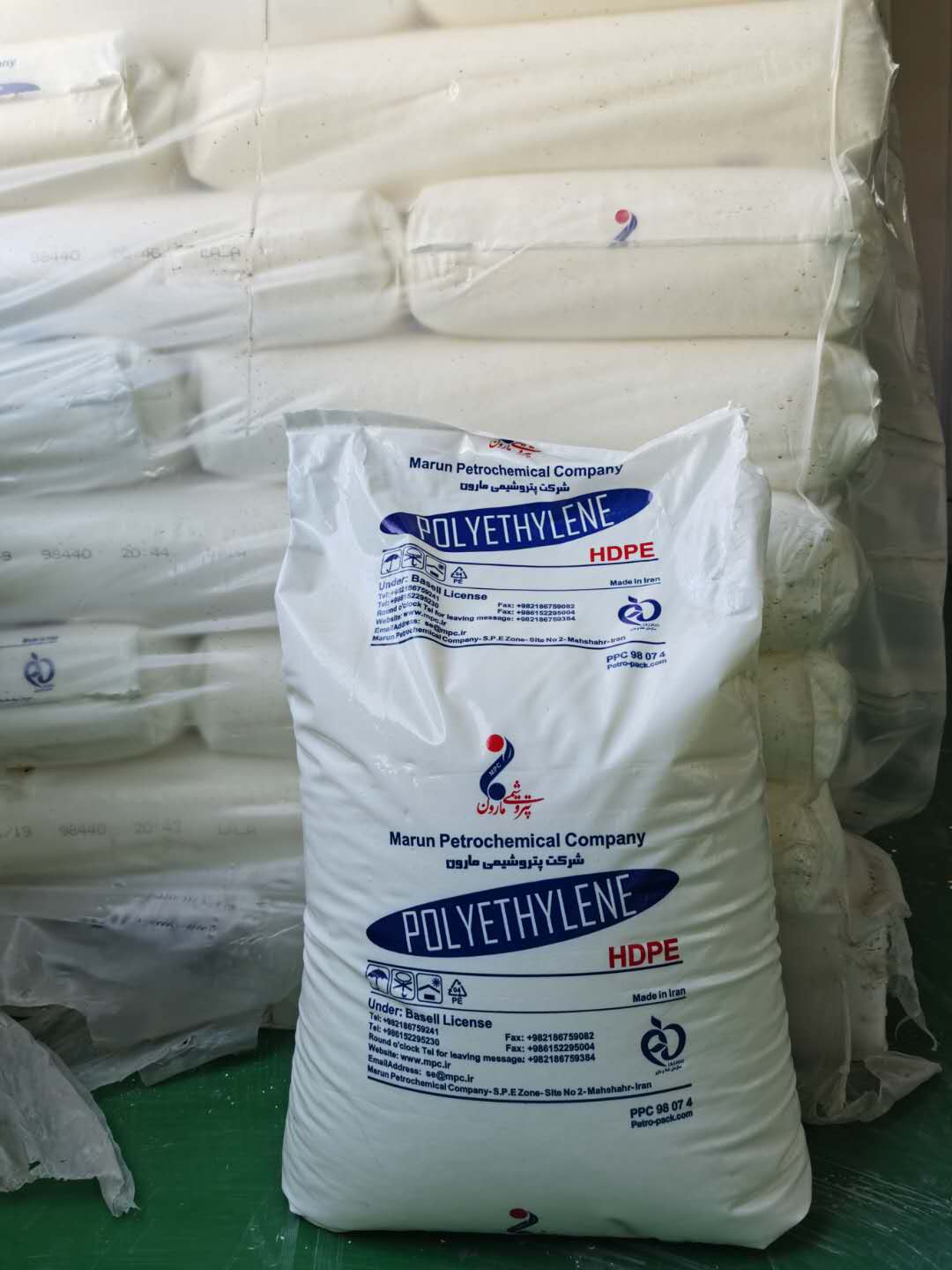

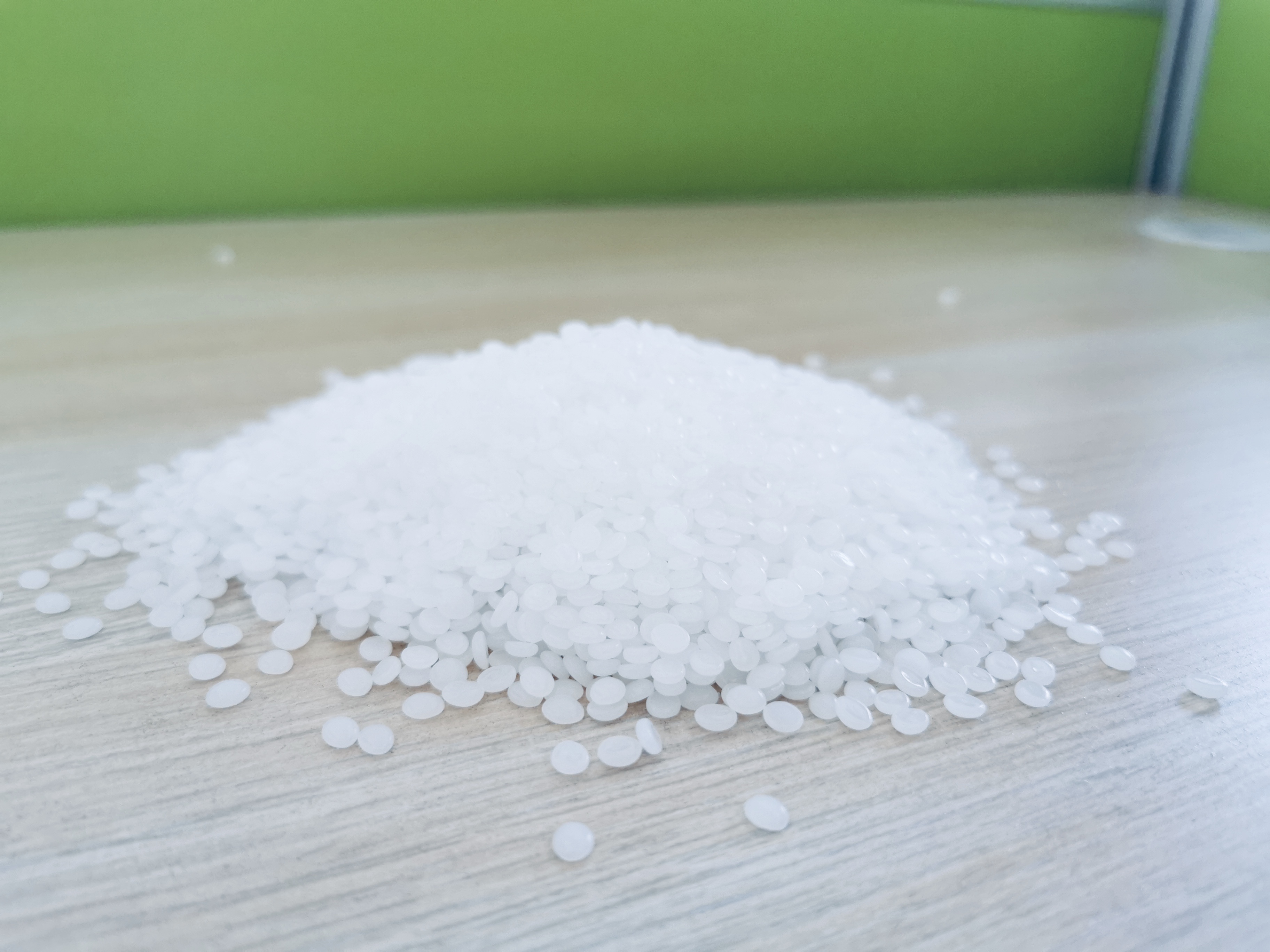

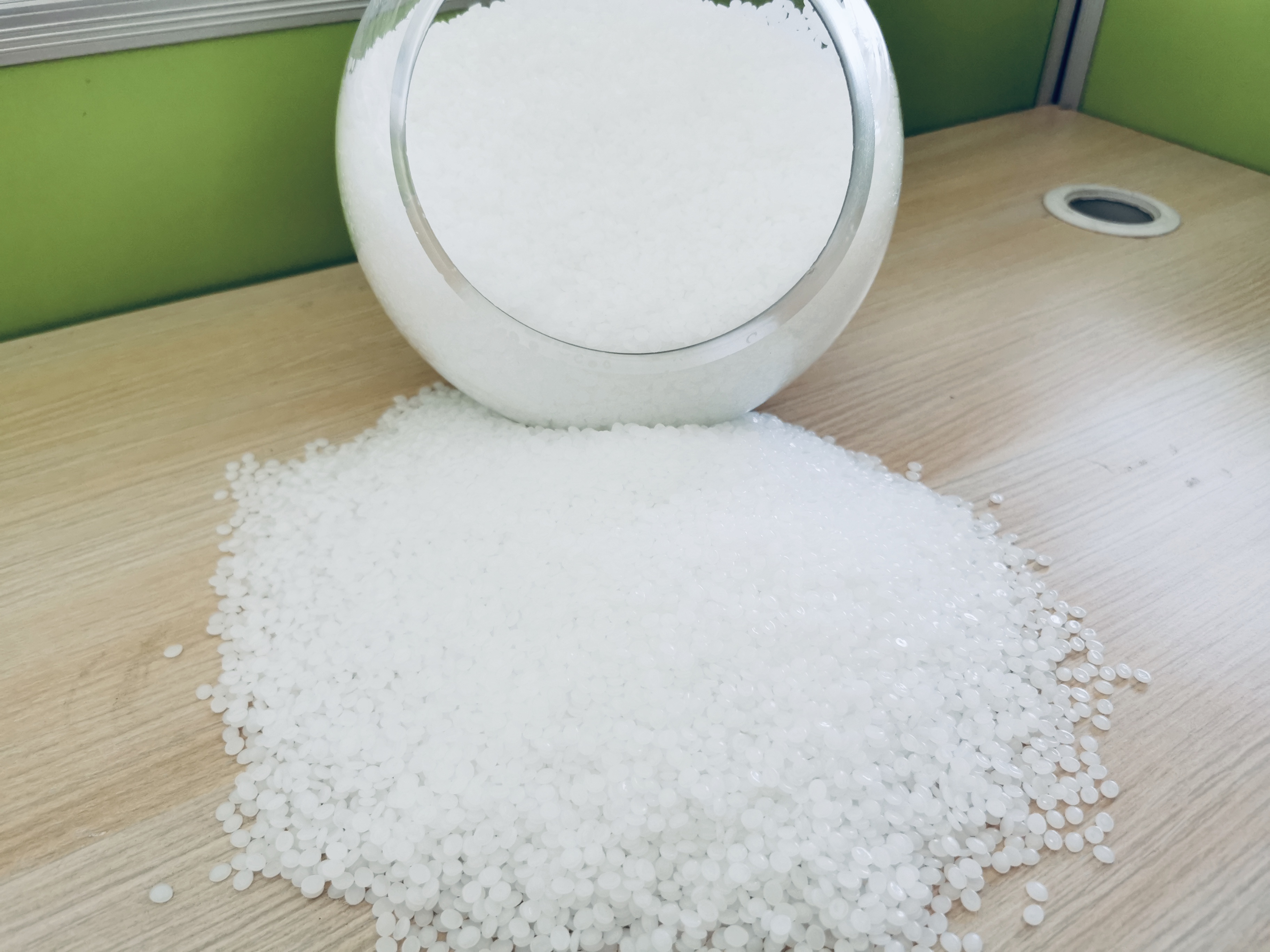

Raw Material Display
Certificate
Patent
FAQ
1.Can we get samples?
Yes, 1kg free samples can supply .
2.What's Your Delivery Time?
Normally 15-20days afater order confirm.
3.What is MOQ?
Our MOQ is 5CBM .
4.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
5.How About Container Quantity?
1*20GP can load 28CBM
1*40HQ can load 68cbm
6.What's Your Packing?
Packing is woven bag;0.1m3/1m3 per bag
