- Condition:New
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:More than 5 years
- Warranty:More than 5 years
- After-sales Service Provided:Free spare parts
- Productivity:500L/Hour
- Place of Origin:CN;ZHE
- Applicable Industries:Water treatment
- Core Components:HDPE
- Brand Name:Juntai
- Material:bulk cargo
- Size:25mm,35mm,50mm,80mm
Product Description

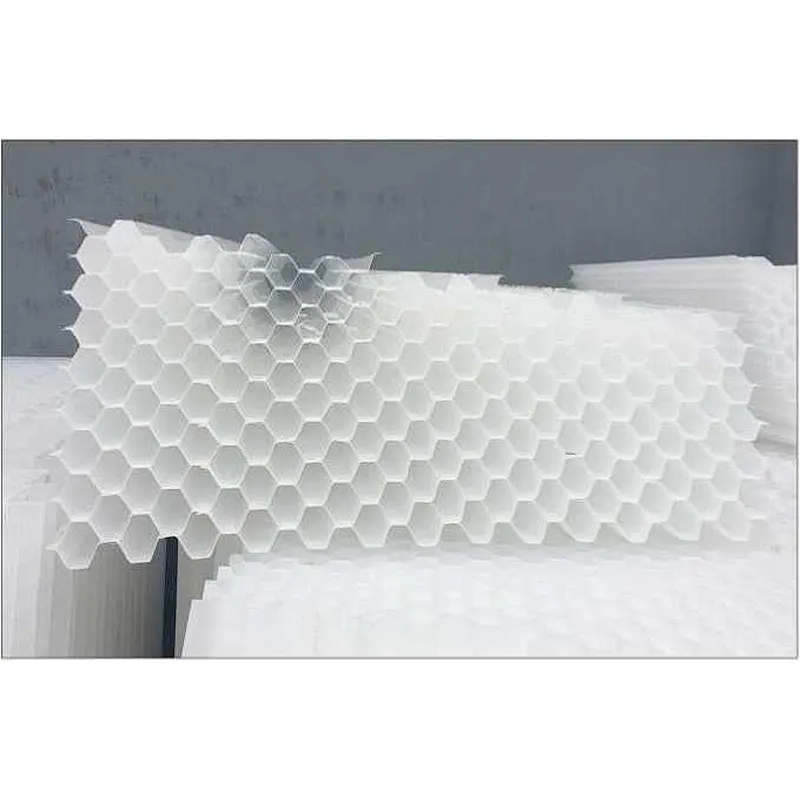

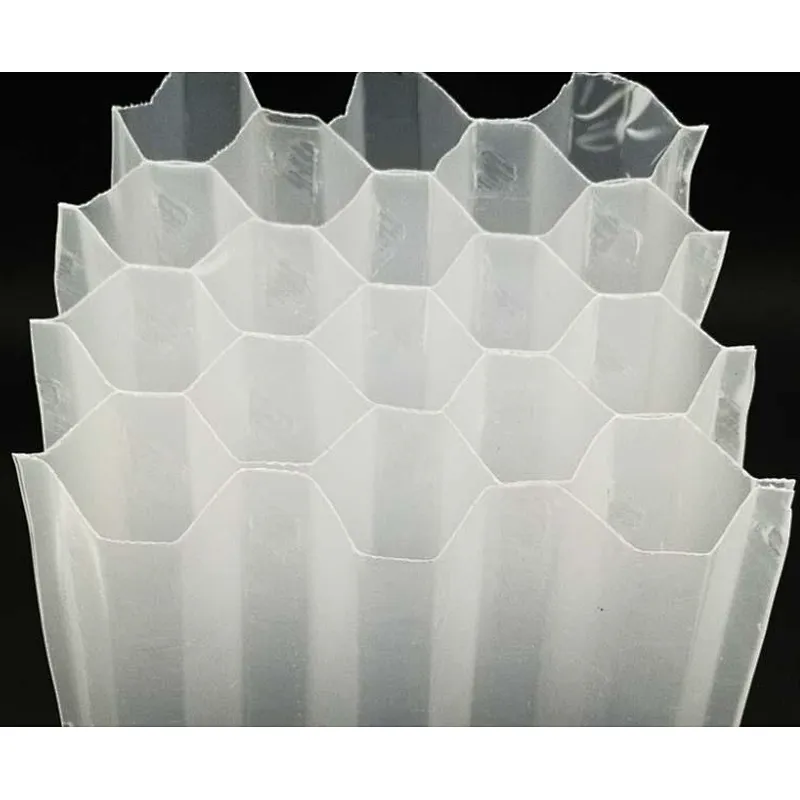

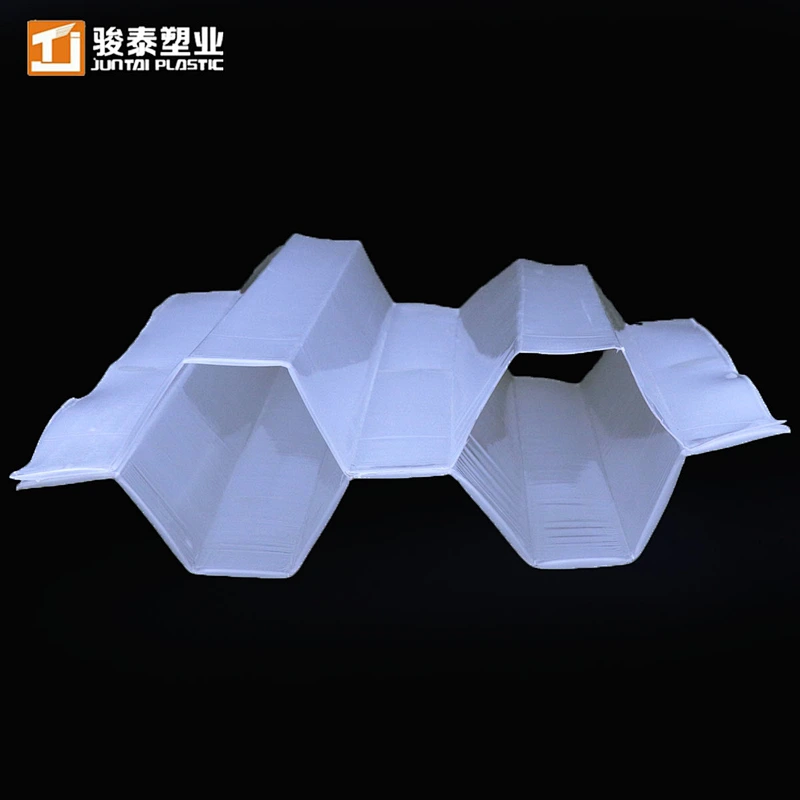

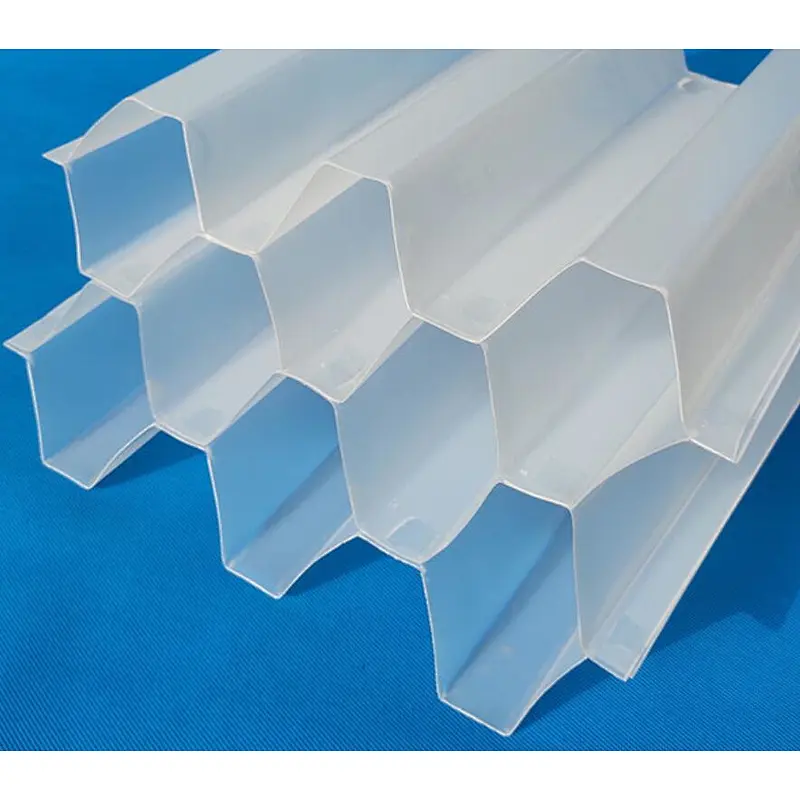

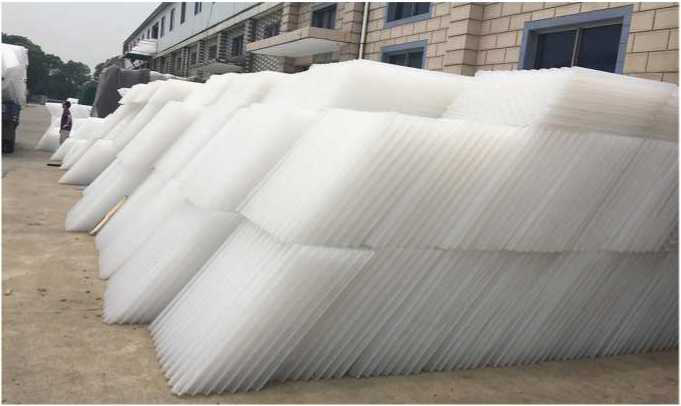

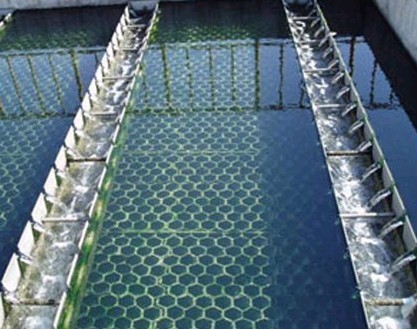

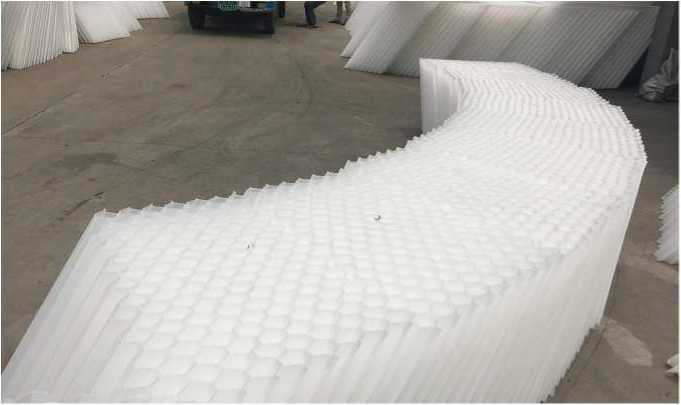

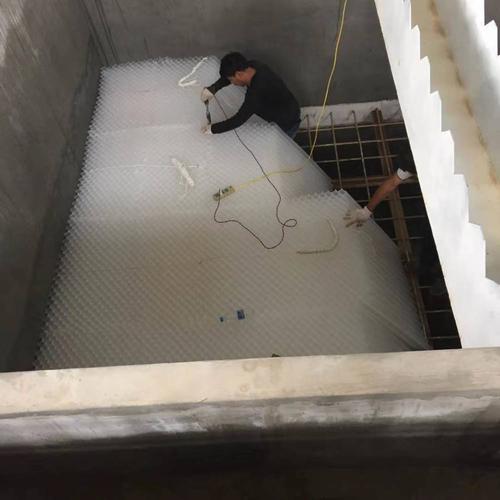

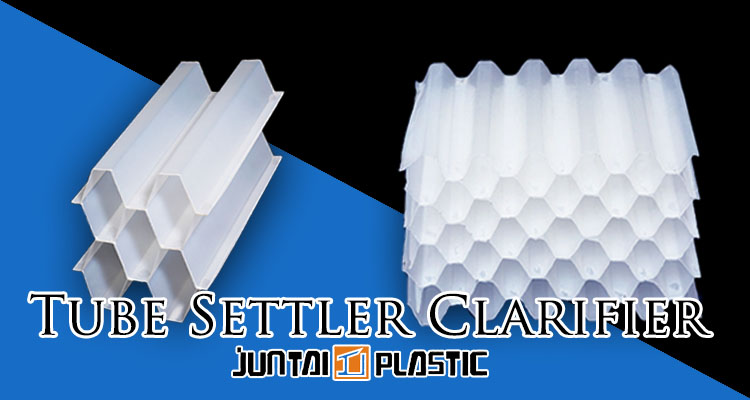

Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment. Tube settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area.

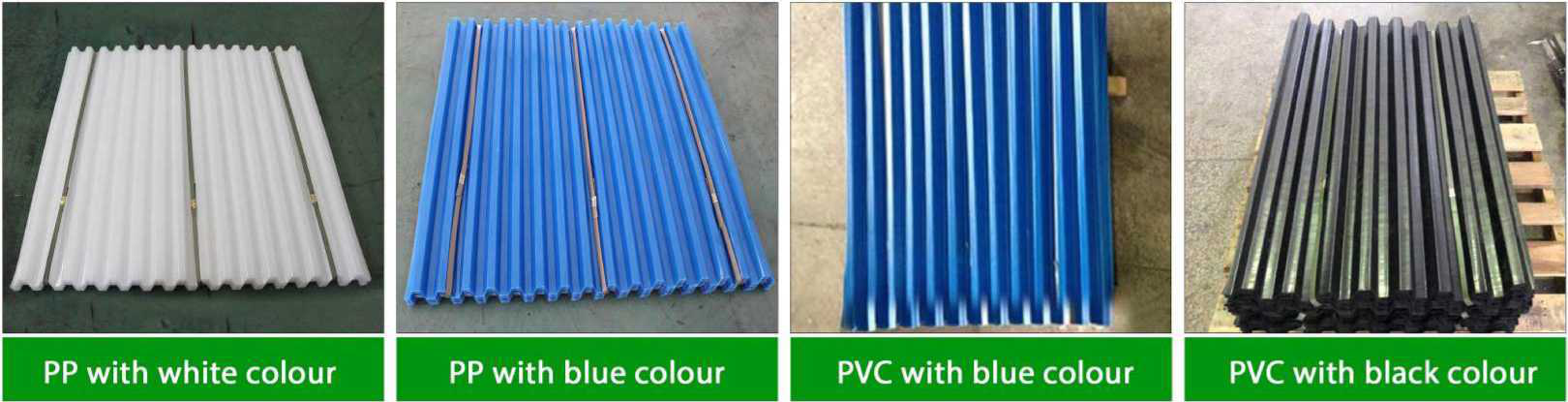

Tube Settler Can be Made intoPPand PVC Material
PP material Tube Settler is food grade, it can be blue and white color.
PVC material can be blue and black color.
Both of PP and PVC material can add UV protection.

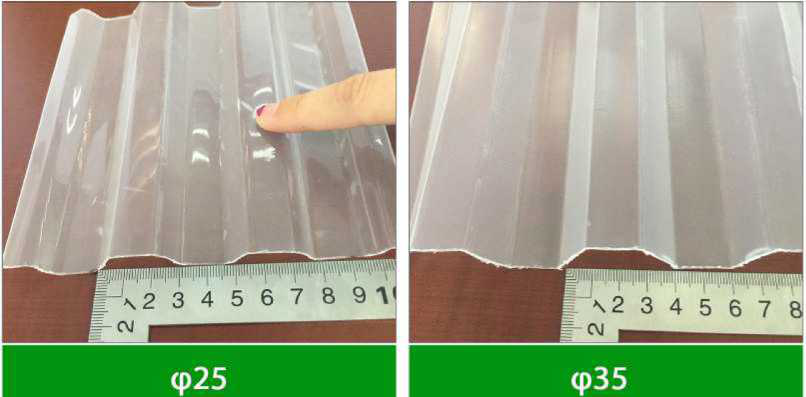

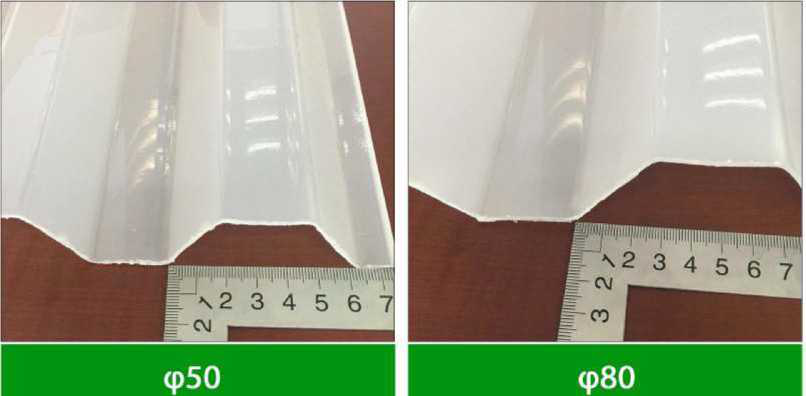

Tube Settlers with different sizes:25mm,35mm,50mm,80mm.

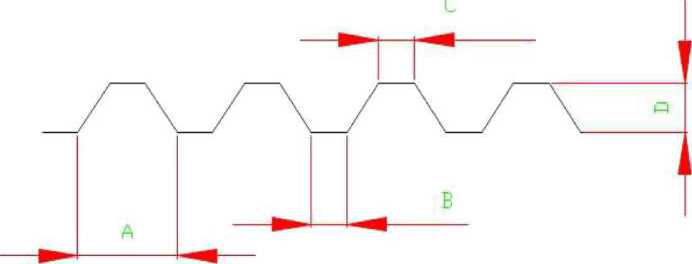

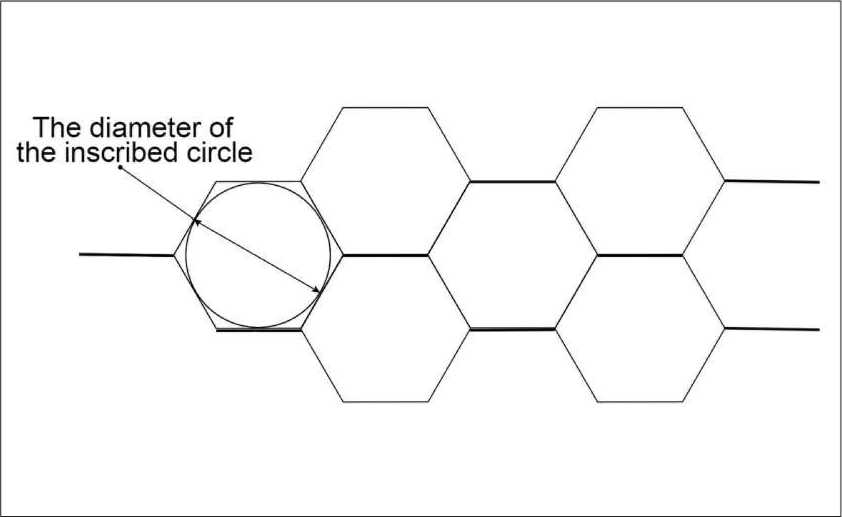

Iterm | A | B | C | D (Theoretically) | D (Actually) |
Dia25mm | 30mm | 15mm | 15mm | 12mm | <15mm |
Dia35mm | 40 mm | 20mm | 20mm | 17.5mm | <20mm |
Dia50mm | 60mm | 28mm | 28mm | 25mm | <30mm |
Dia80mm | 80mm | 35mm | 35mm | 40mm | <45mm |
Size (mm) | Thickness(mm) | Quantity (pcs/m2) | Weight (kgs/m2) | Specific Surface Area (m2/m3) |
φ25 | 0.40 | 62 | 30 | 139 |
0.45 | 62 | 35 | 139 | |
φ35 | 0.40 | 42 | 22 | 109 |
0.45 | 42 | 25 | 109 | |
φ50 | 0.50 | 42 | 28 | 109 |
0.40 | 30 | 16.5-17 | 87 | |
0.45 | 30 | 175-18 | 87 | |
0.50 | 30 | 185-19 | 87 | |
0.60 | 30 | 22 | 37 | |
φ80 | 0.70 | 20 | 19.5 | 50 |
0.80 | 20 | 22 | 50 |
Application Field

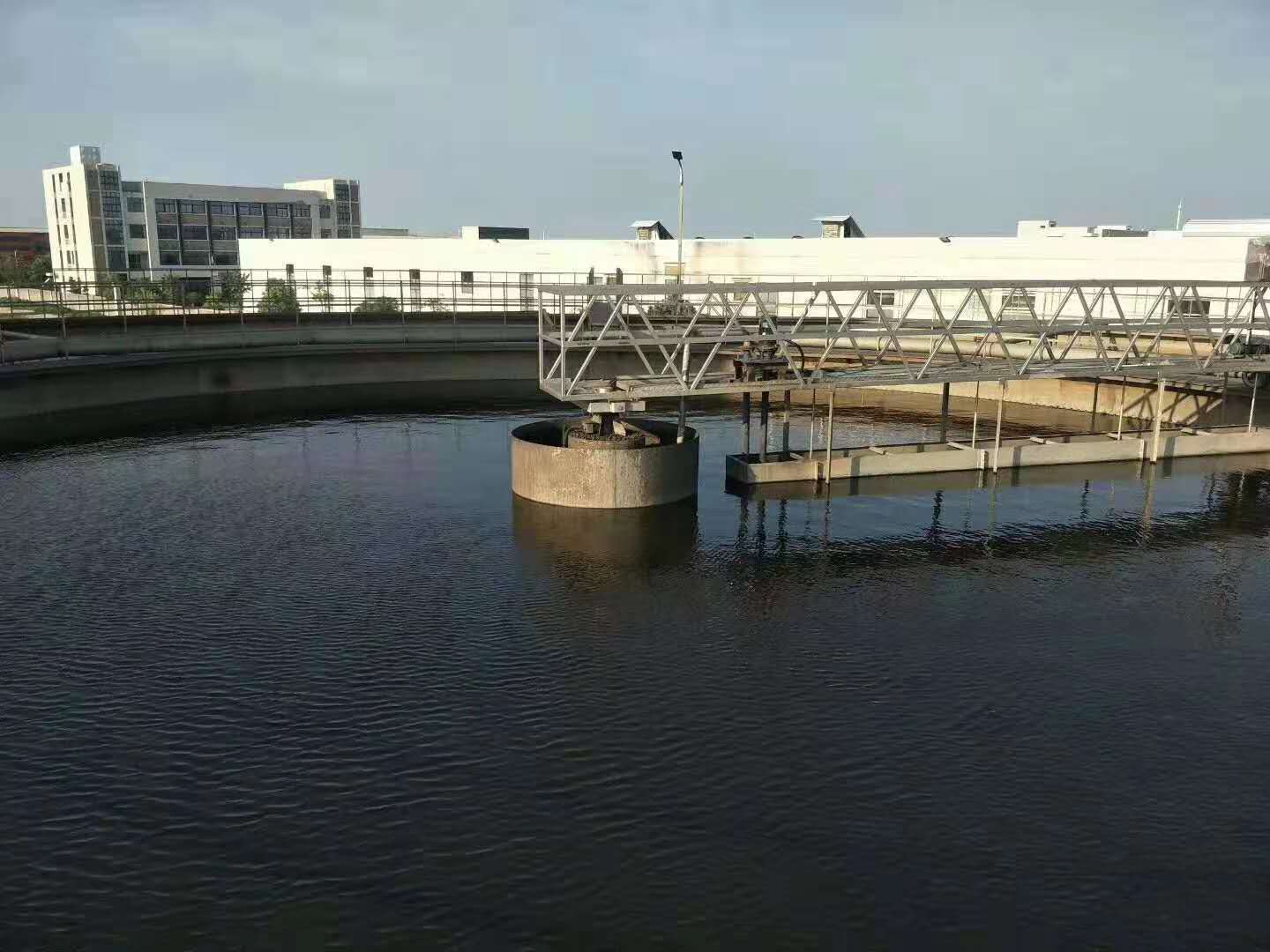

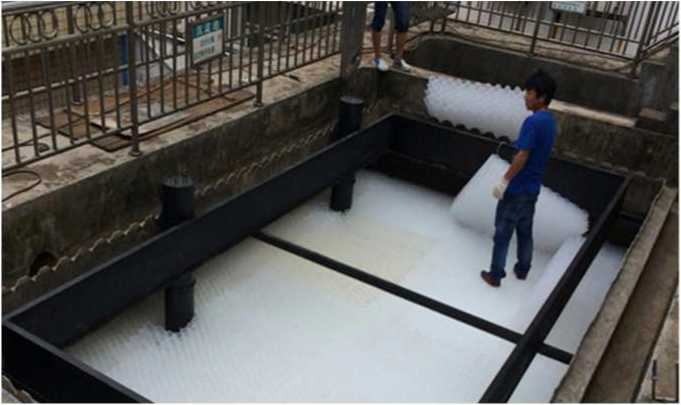

1.Waste Water Treatment

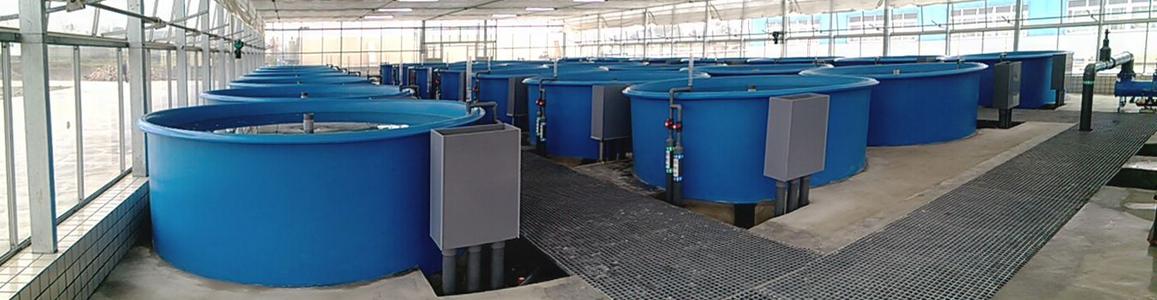

2.Re-circulation Systems
3.Drinking Water Treatment

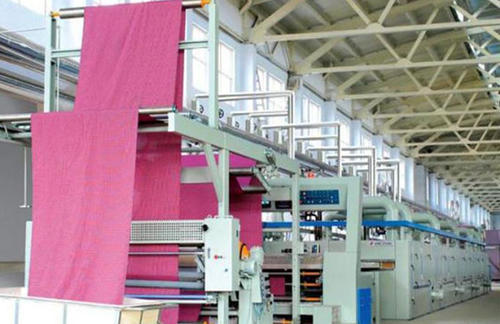

6.Industrial Water Treatment
Company Profile
ABOUT COMPANY
Hangzhou Juntai Plastic Products Co. Ltd. , was founded in 2013 in Hangzhou.After Three years,We established factory Anhui Juntai Technology Co., Ltd in Anhui. we won the National high-tech enterprise in 2019 and has 29 patents for MBBR and pvc profiles.Now we become one of leader manufacturer for MBBR Bio Filter Media and PVC profiles.With 21000 m2 factory in Yuexi Anhui; 105 High speed automatic extruded lines and 30 injection lines, The annual capacity of MBBR is more than 70000 CBM; the annual Capacity of PVC profiles and injection parts is more than 5000 tons. High quality with ISO9001-2015, SGS, ROHS and other certifications. With 63 young people with full of passion of Juntai company and try to offer the best plastic goods to the world. Here we have 11 engineers teams of plastic and water treatment, we can design the plastic items for customers. Juntai MBBR Biofilter media widely used in waste water treatment; RAS and other field. With professional environmental engineers , cooperated with three China Universities to ensure high quality while ensuring better service. Juntai products have been exported more than 36 countries, including USA, Sweden, Malaysia, etc. The annual sale more is $15 million. Choose Juntai, and Juntai people will return back you full satisfied.

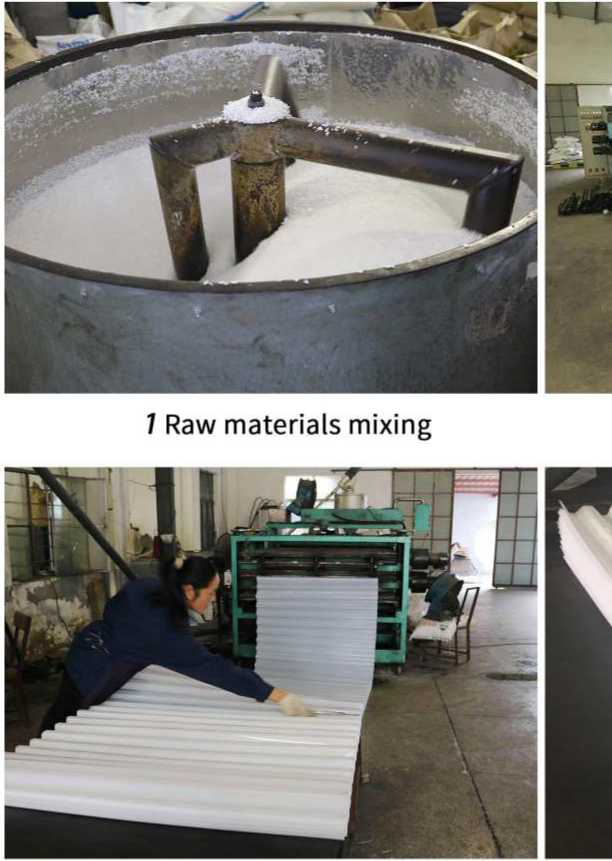

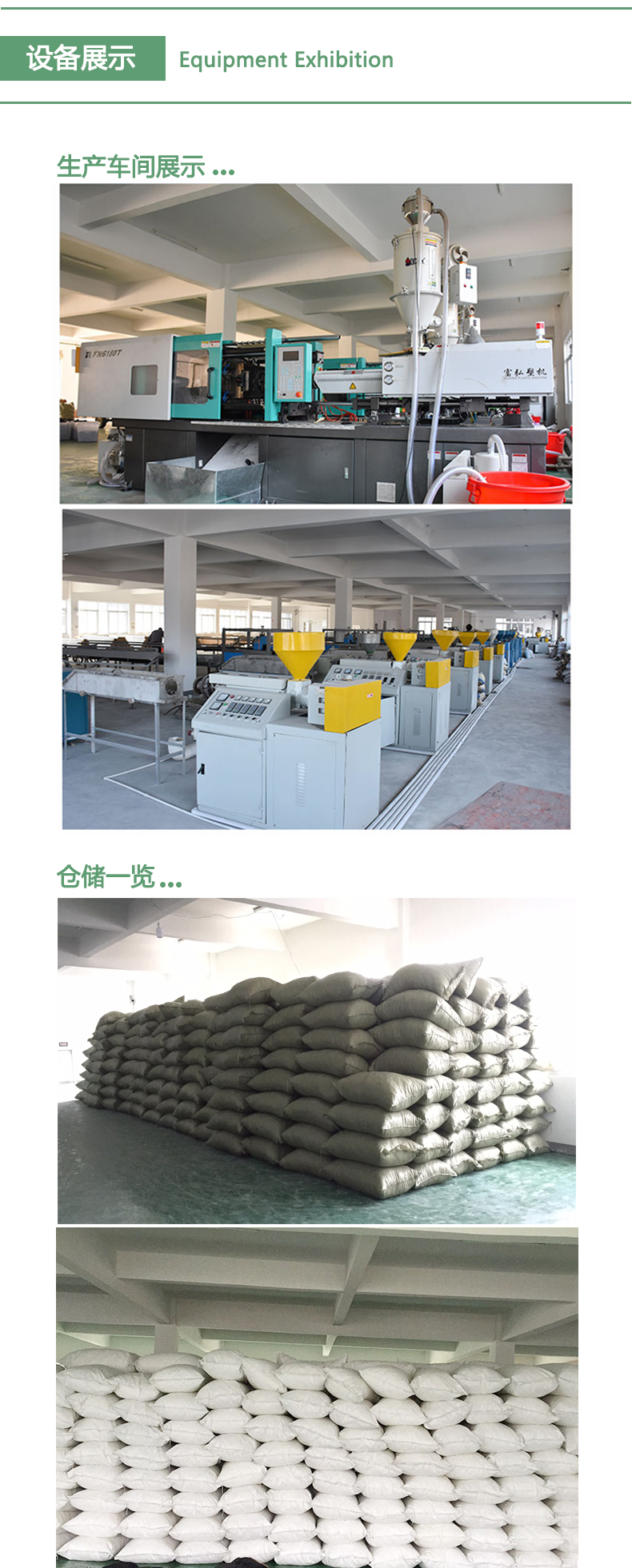

Equipments Exhibition

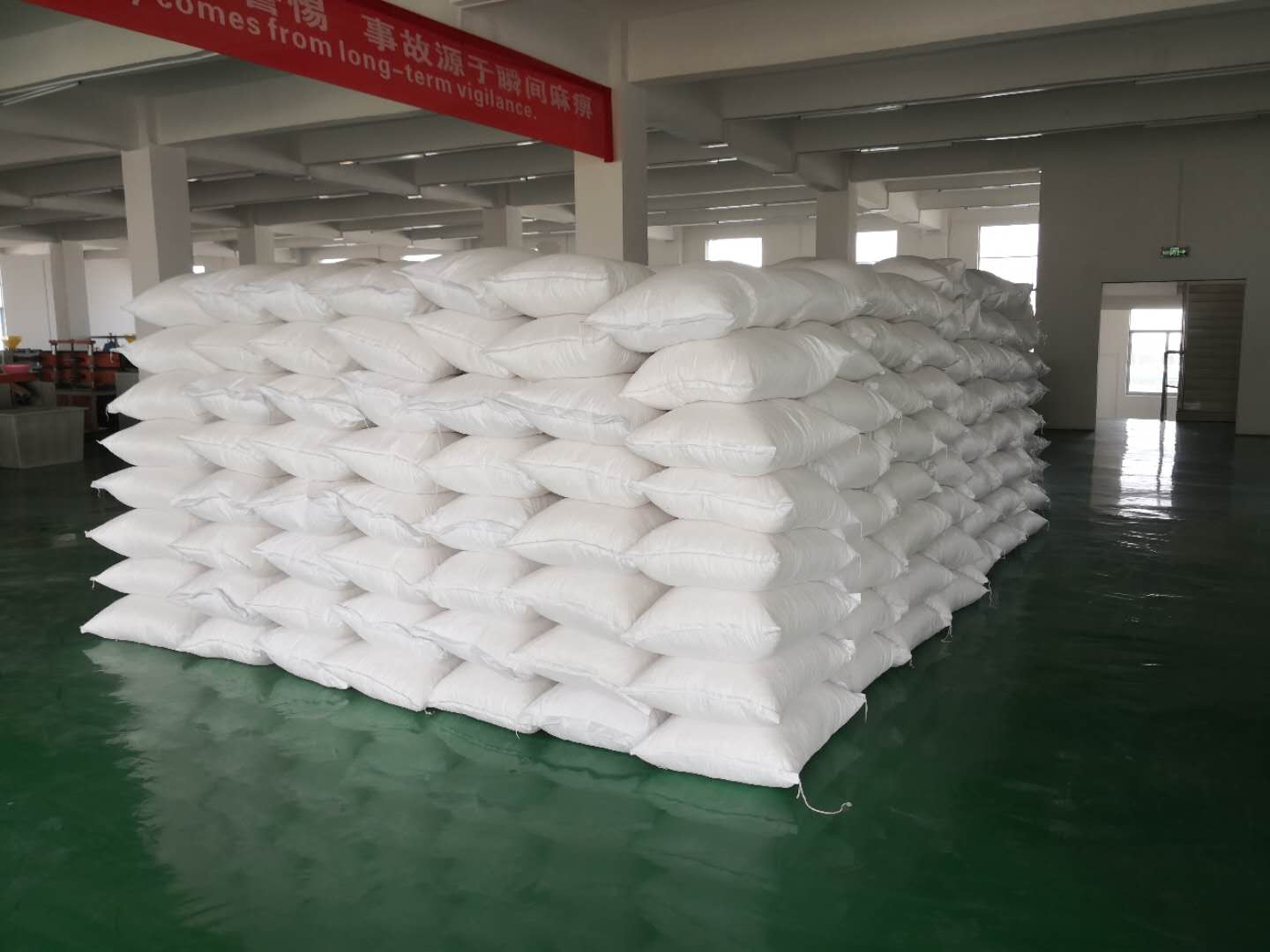

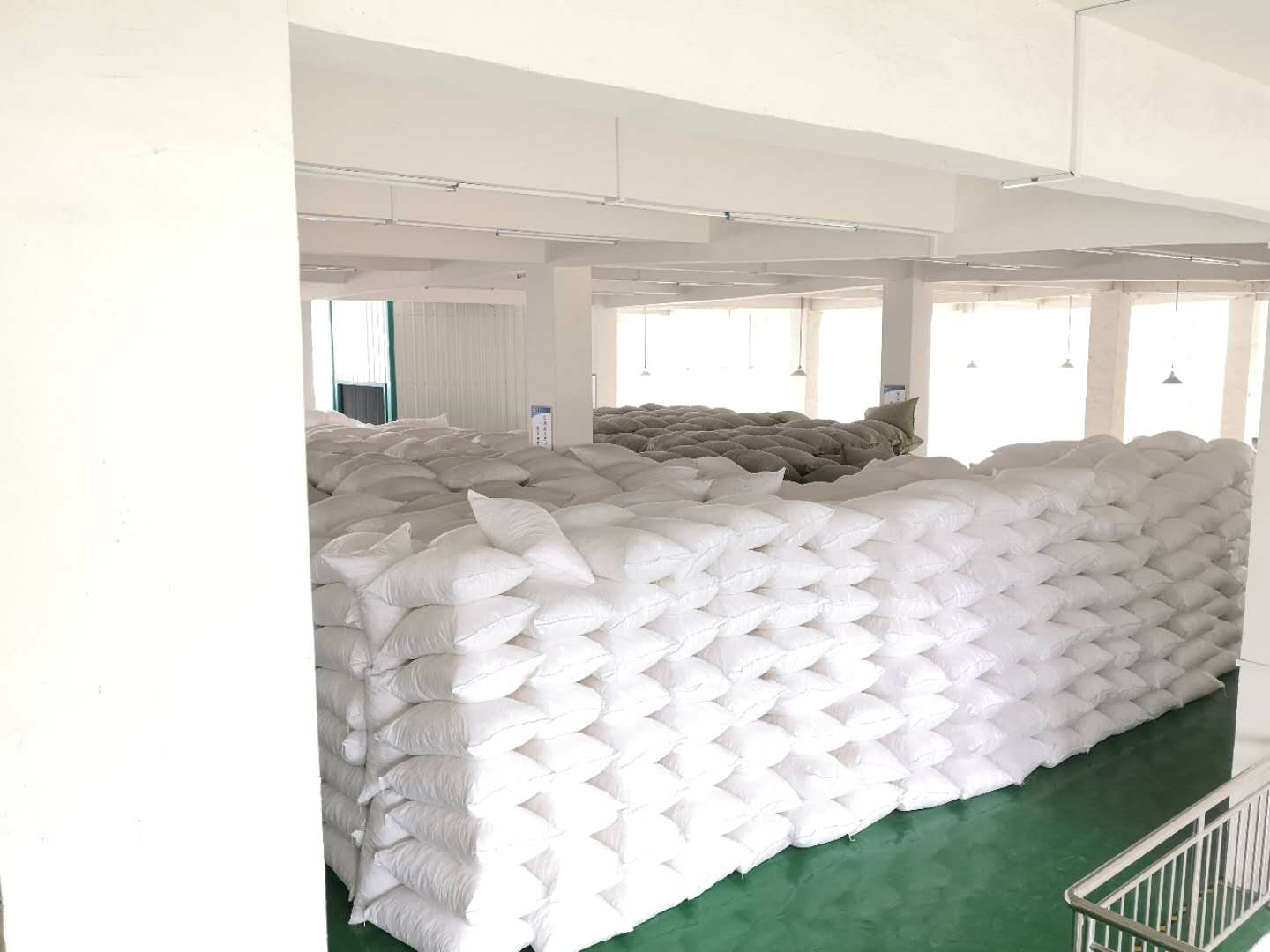

Inventory Display

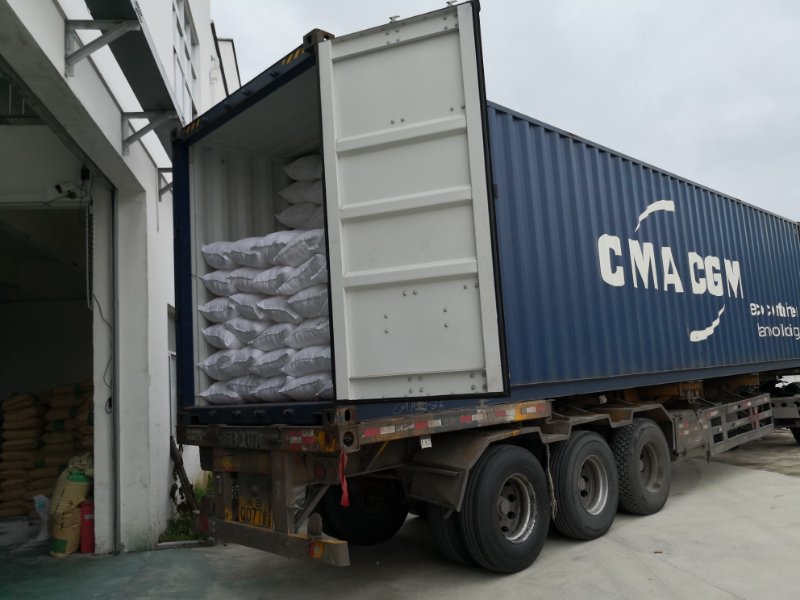

Transport Logistics

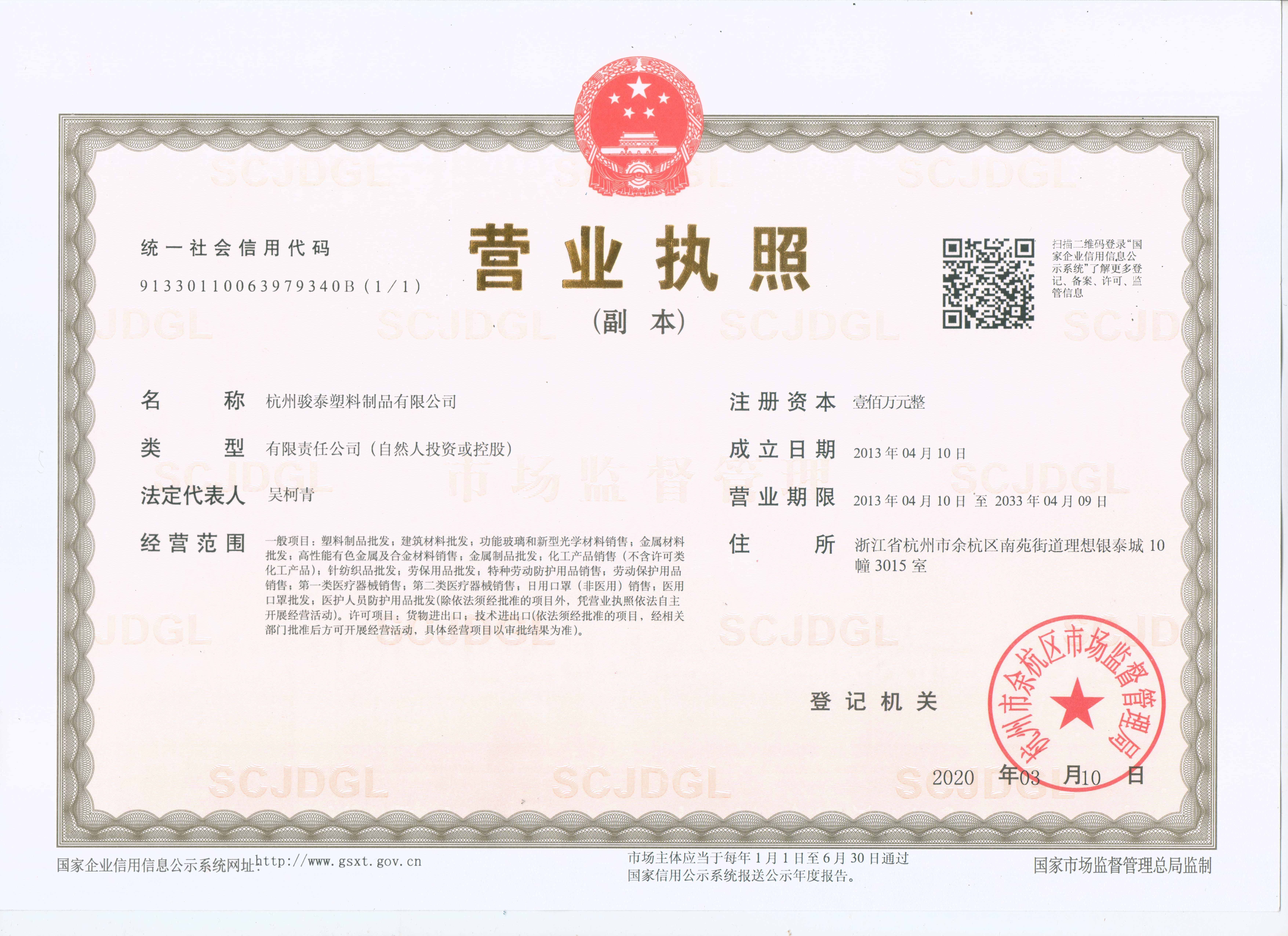

Certificate

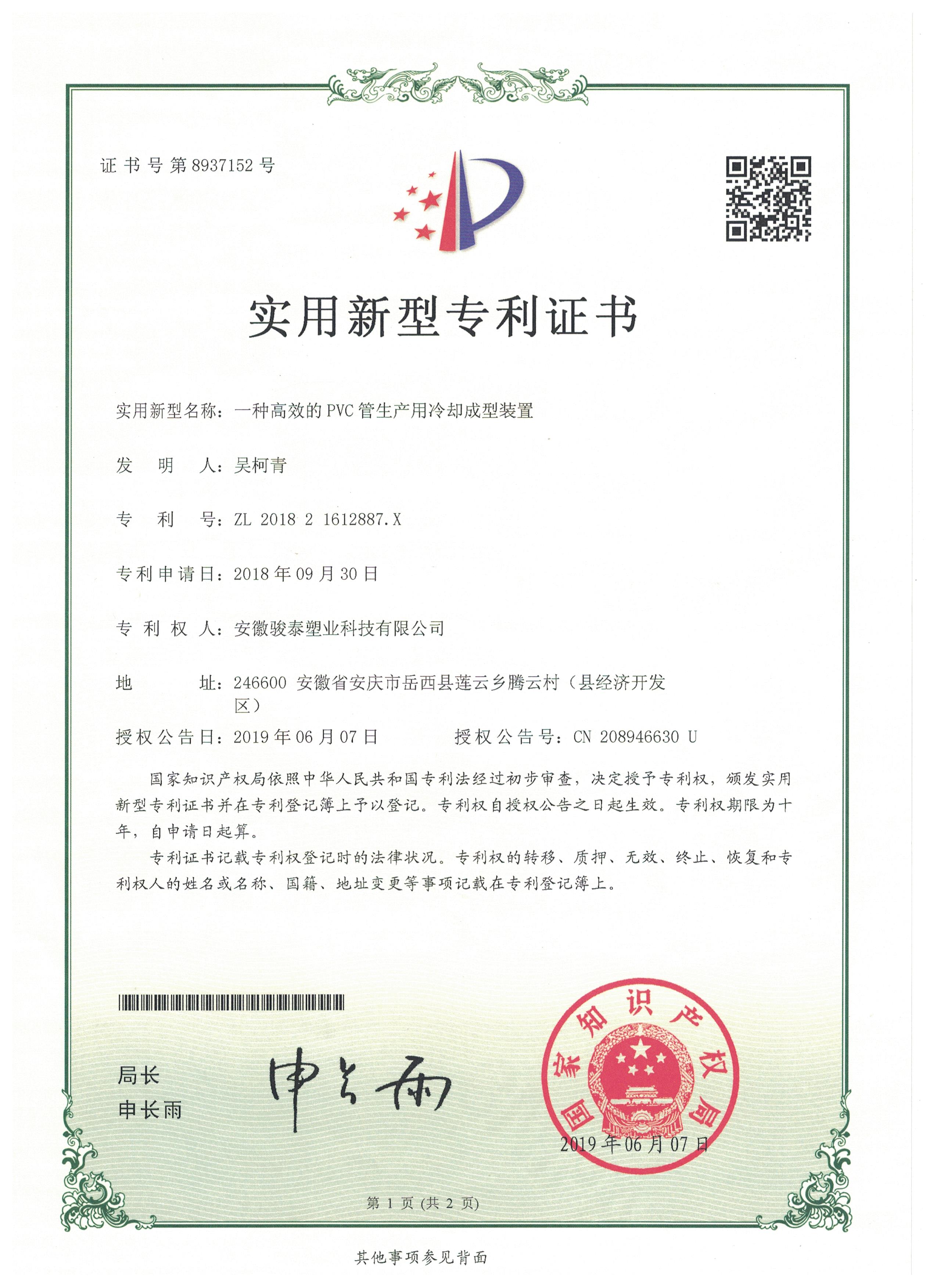

Patent
FAQ
1.Can we get samples?
Yes, 1kg free samples can supply .
2.What's Your Delivery Time?
Normally 15-20days afater order confirm.
3.What is MOQ?
Our MOQ is 1CBM .
4.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
5.How About Container Quantity?
1*20GP can load 30CBM
1*40HQ can load 70CBM
6.What's Your Packing?
Packing is woven bag;0.1m3/1m3 per bag
