- Color:natural white
- Certification:ISO9001:2015
- Molding type:extrusion
- Application:Filtration
- Sample:free
- size:25*12
- Hole Numbers:19
- Density:0.95-0.98
- Surface Areas:>550
- Condition:New
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Warranty of core components:More than 5 years
- Warranty:More than 5 years
- After-sales Service Provided:Online support
- Place of Origin:CN;ANH
- Applicable Industries:Hotels
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:waste water treatment
- Marketing Type:New Product 2021
- Core Components:MBBR
- Brand Name:Juntai
- Material:woven bag,HDPE
- Weight:95
- Size:25*12mm
- Productivity:70000m3/year

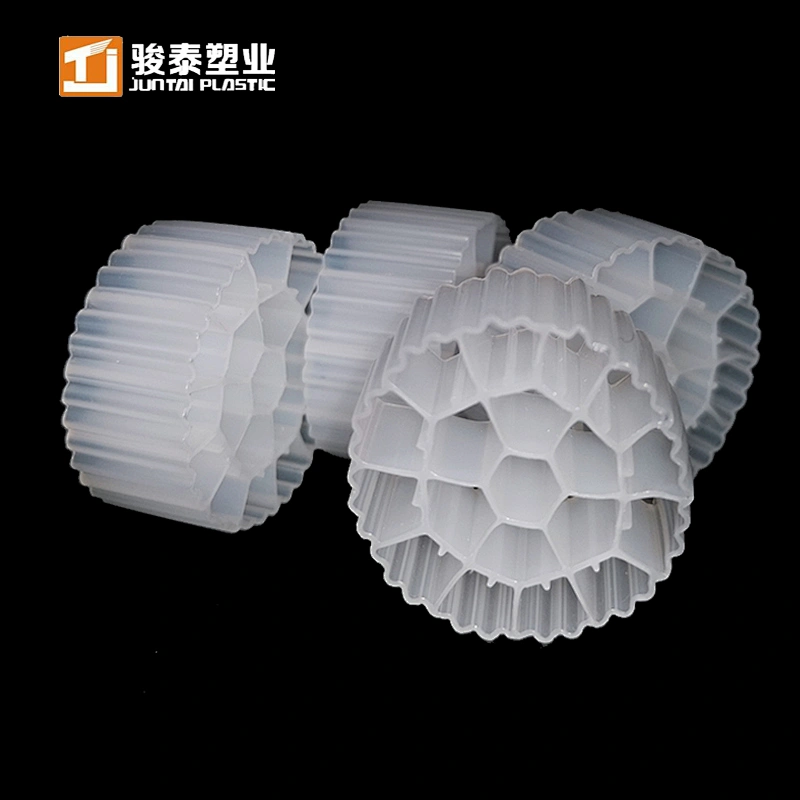

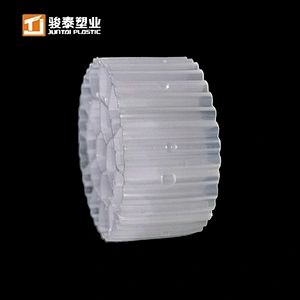

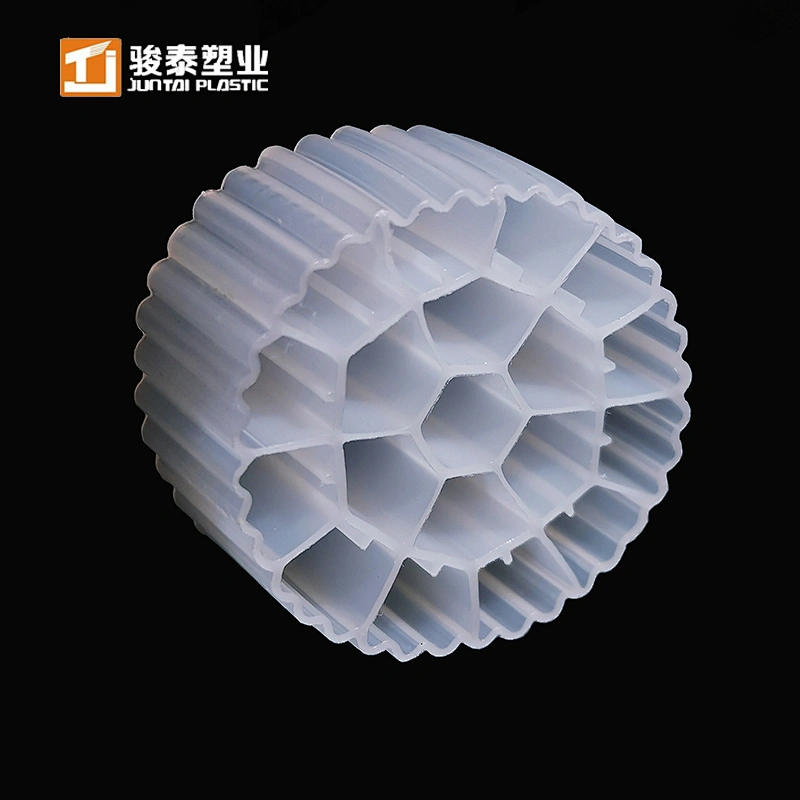

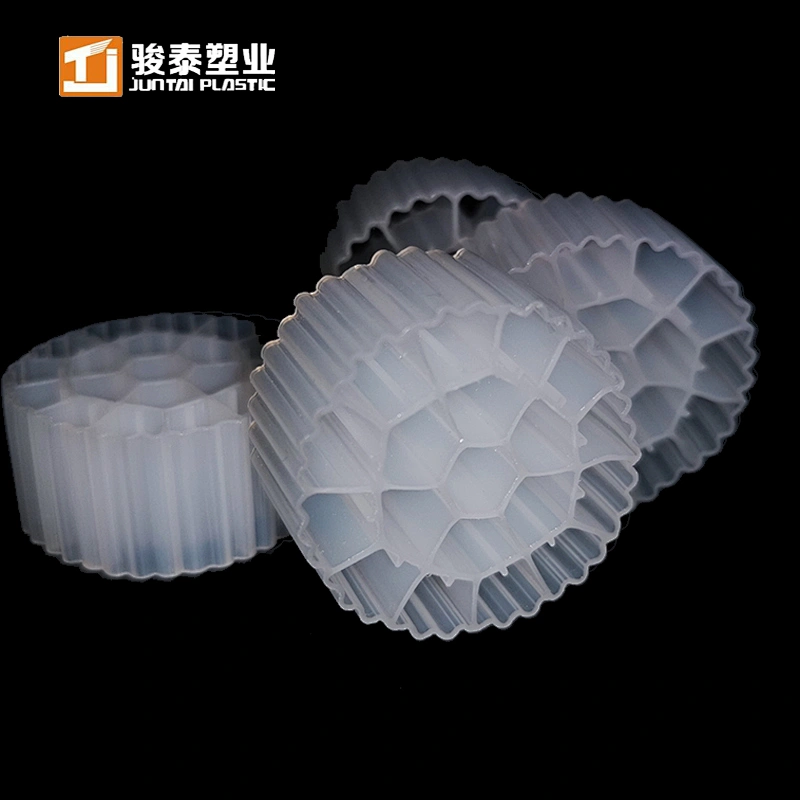

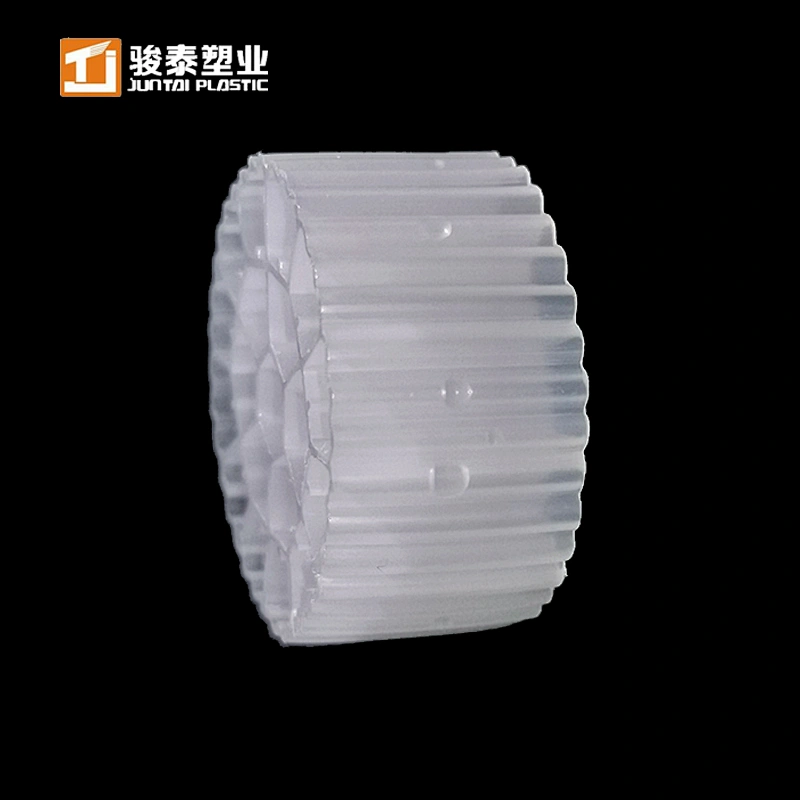

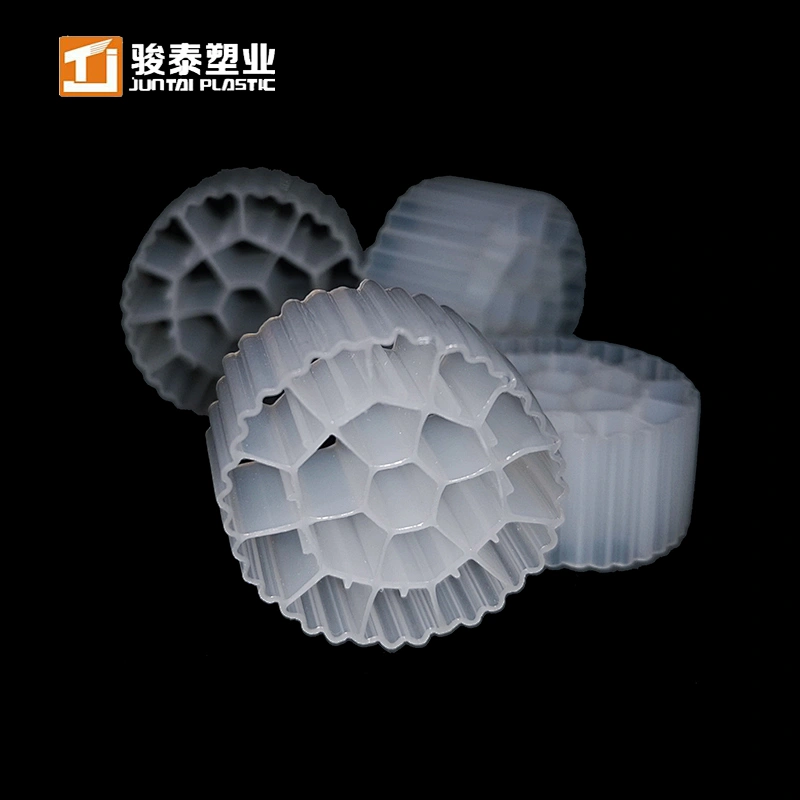

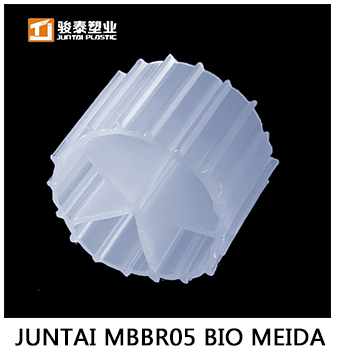

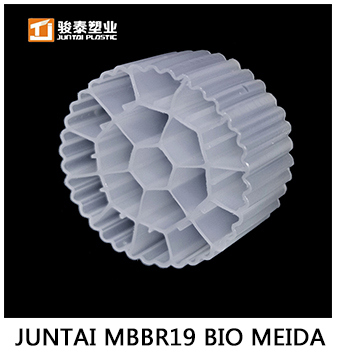

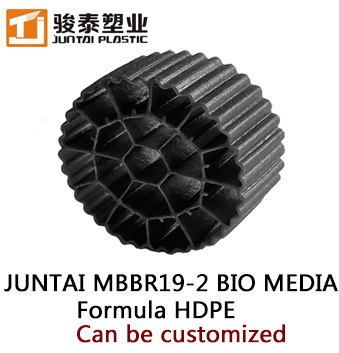

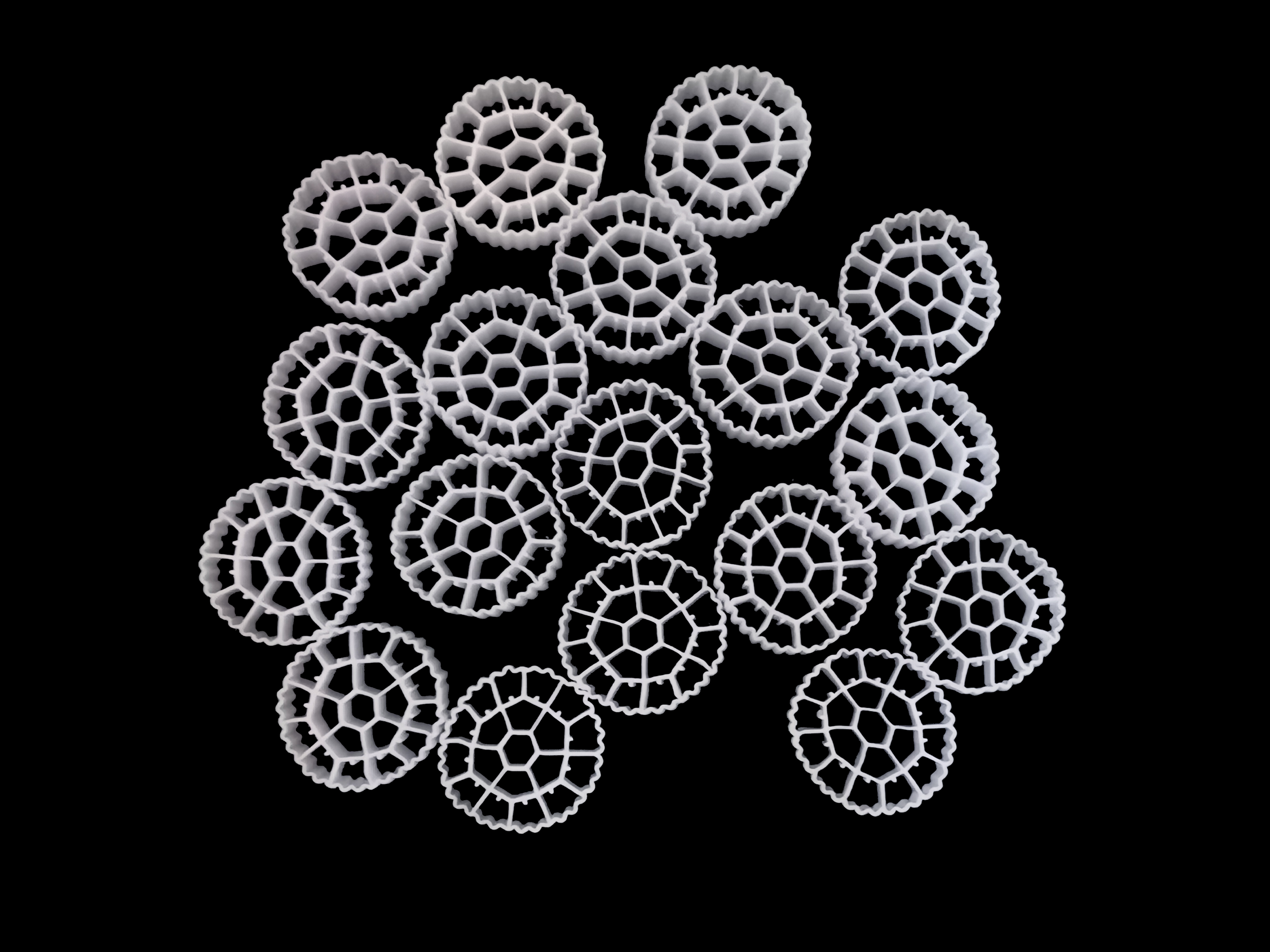

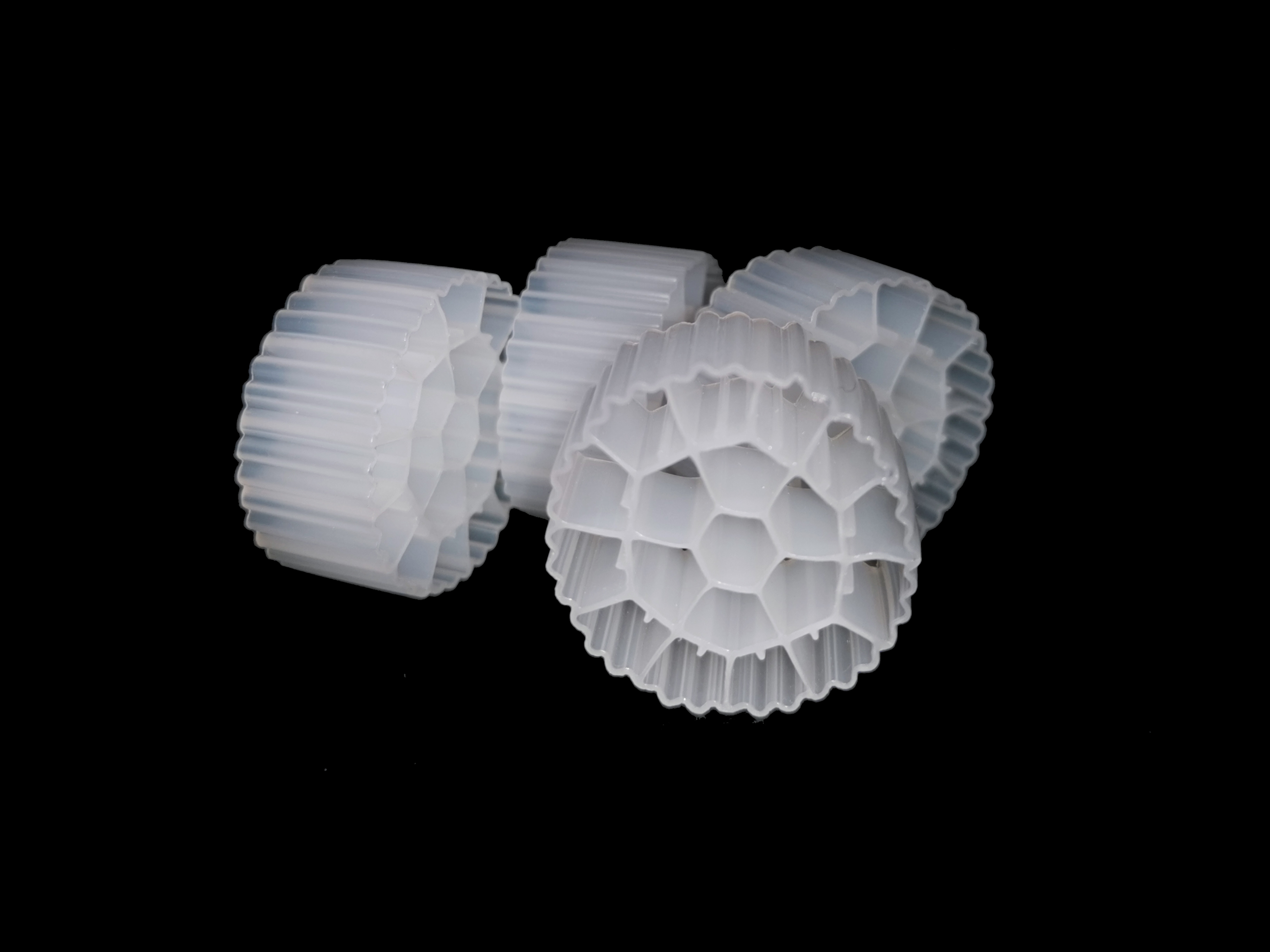

Product Description

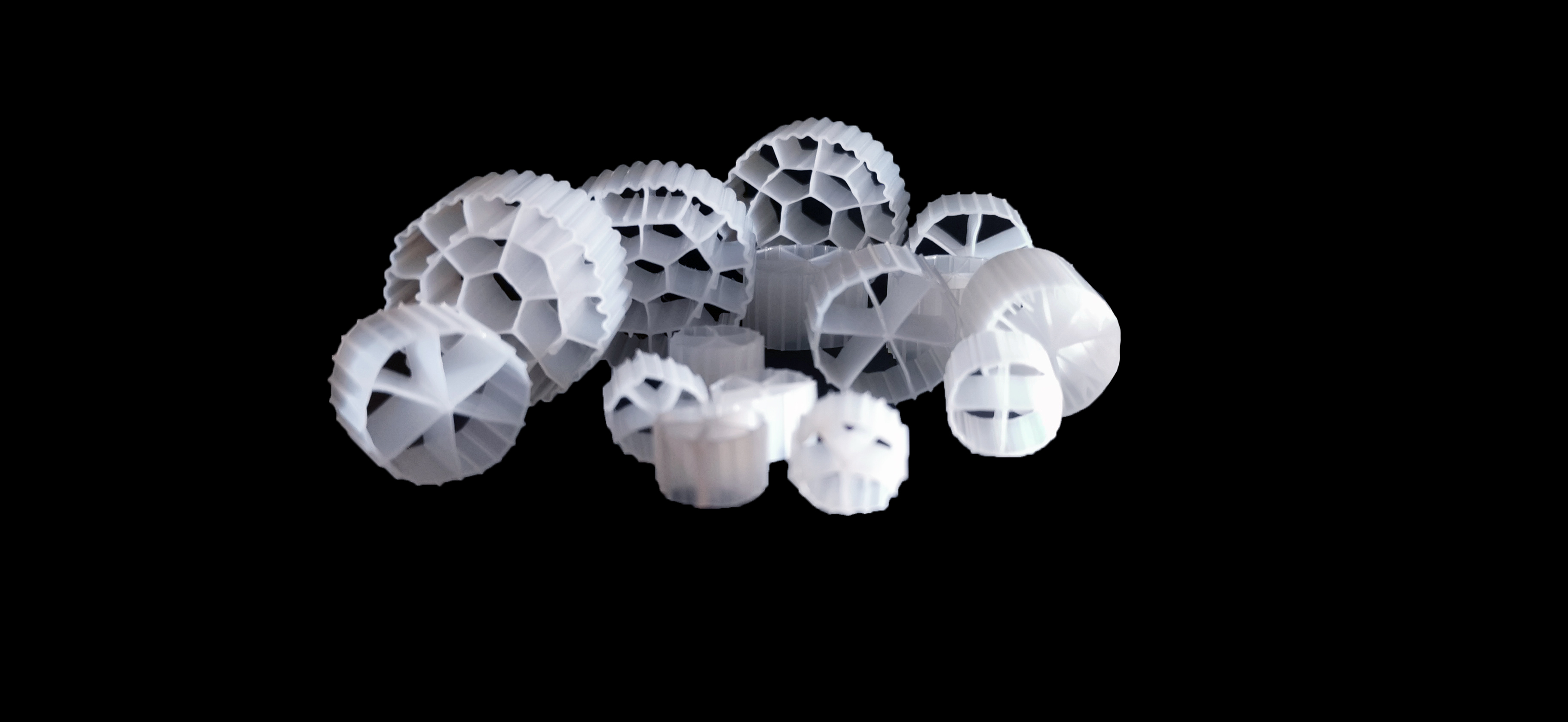

Product Parameter

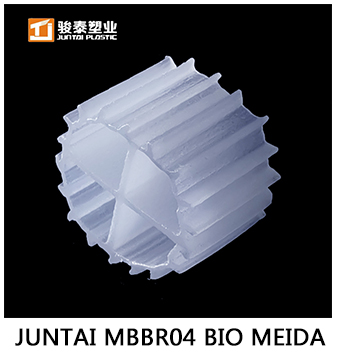

Size:11*7mm
Hole:4 rooms
Surface Area: More than 900m2/m3
Size:11*7mm
Hole:5 rooms
Surface Area: More than 1000m2/m3

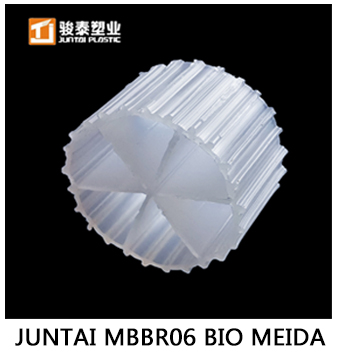

Size:16*10mm
Hole:6rooms
Surface Area:More than 800m2/m3
Size:25*10mm
Hole:19 rooms
Surface Area:More than550m2/m3

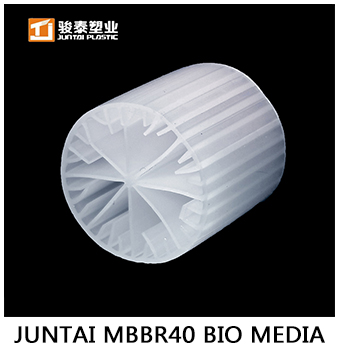

Size:15*15mm
Hole: 40 rooms
Surface Area: More than900m2/m3
Size:25*10mm
Hole: 19 rooms
Surface Area: More than550m2/m3
Porosity: | 85% |
Doing Ritio: | 15-65% |
Membrane-formng Time: | 3-15days |
gNH4N/M3.d | 400-1200 |
gBOD5/M3.d | 2000-10000 |
gCOD5/M3.d | 2000-15000 |
Applicable temperature: | 5-60℃ |
Life-span: | >15years |
Material: | HDPE |
Product Advantages
1.Characteristics of fillers
2.Good denitrification ability
3.High sludge concentration in the reactor
4.Easy to maintain and manage

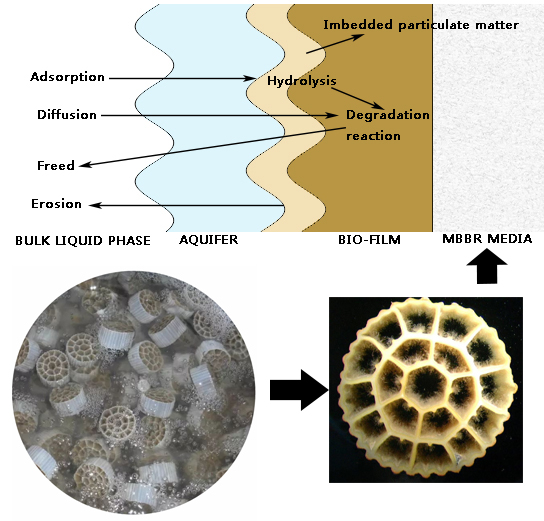

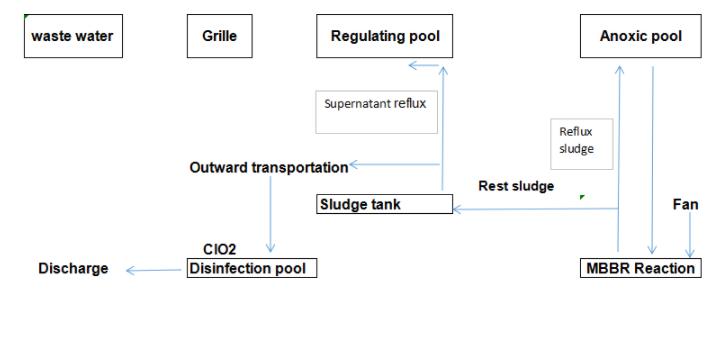

Working Principle
The principle of MBBR process is to use the basic principle of biofilm method, by adding a certain number of suspended carriers to the reactor to improve the biomass and biological species in the reactor, so as to improve the treatment efficiency of the reactor. Because the density of the filler is close to that of water, it is completely mixed with water during aeration, and the growth environment of microorganisms is gas, liquid and solid.The collision and shearing of the carrier in water make the air bubbles smaller and increase the utilization rate of oxygen. In addition, there are different biological species inside and outside each carrier, with some anaerobes or facultative bacteria growing inside and aerobic bacteria on the outside, so that each carrier is a micro-reactor, so that nitrification and denitrification exist at the same time. As a result, the treatment effect is improved.
Application Field
1. Industrial Sewage

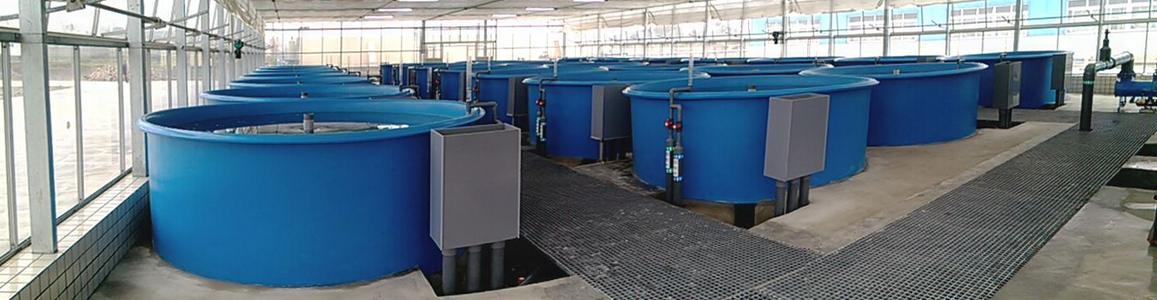

2.Recirculating Aquaculture Systems(RAS)

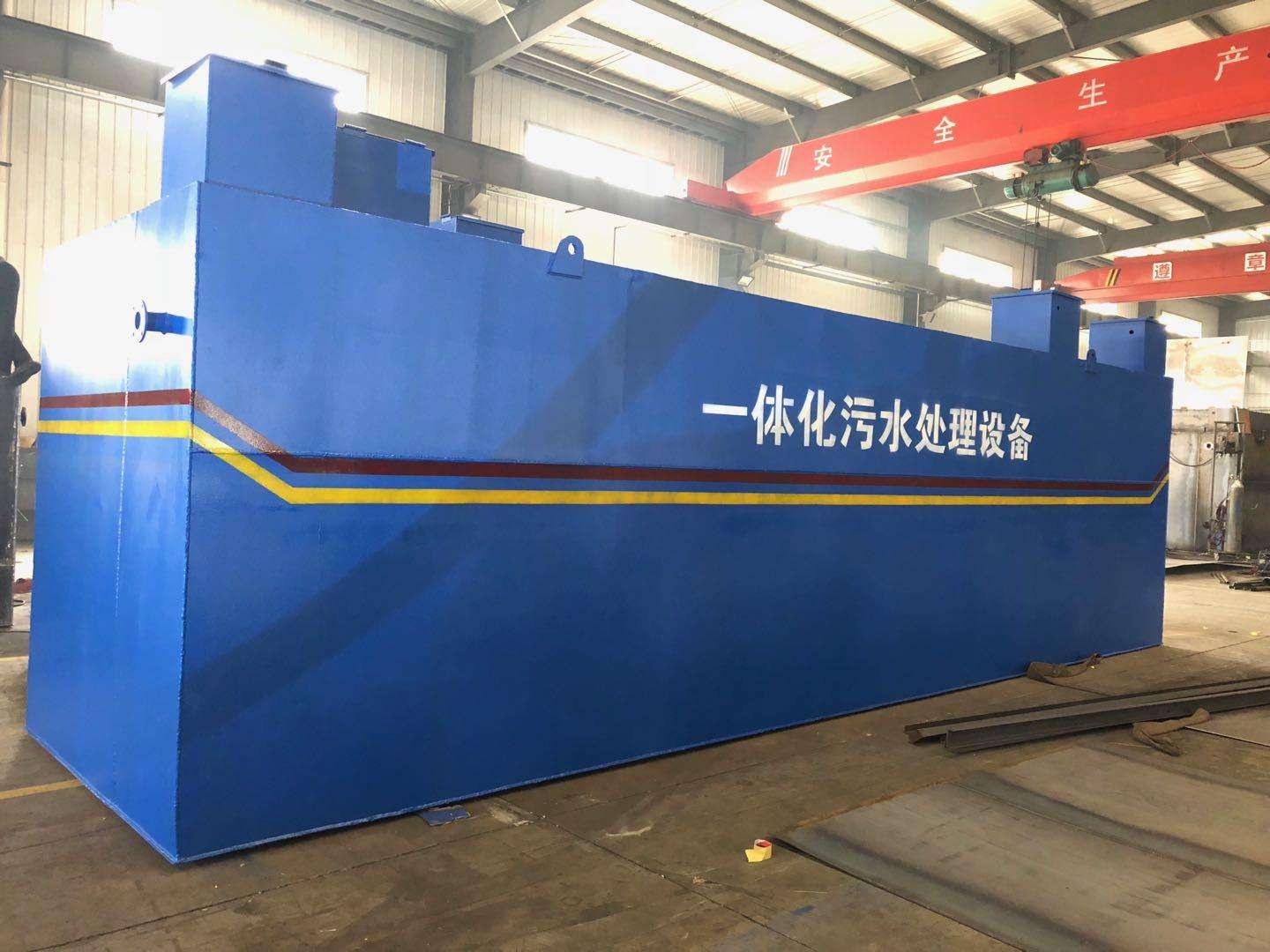

3.Integrated Equipment
4.Oxidation Ditch Process
5.Activated Sludge Modification Process

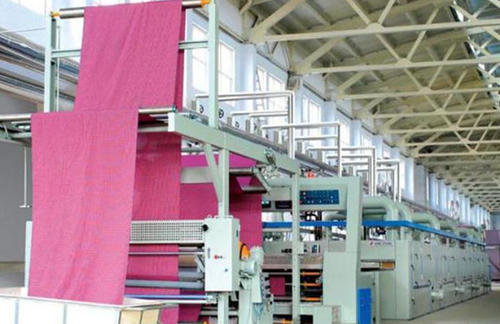

6.Textile Dyeing Industry

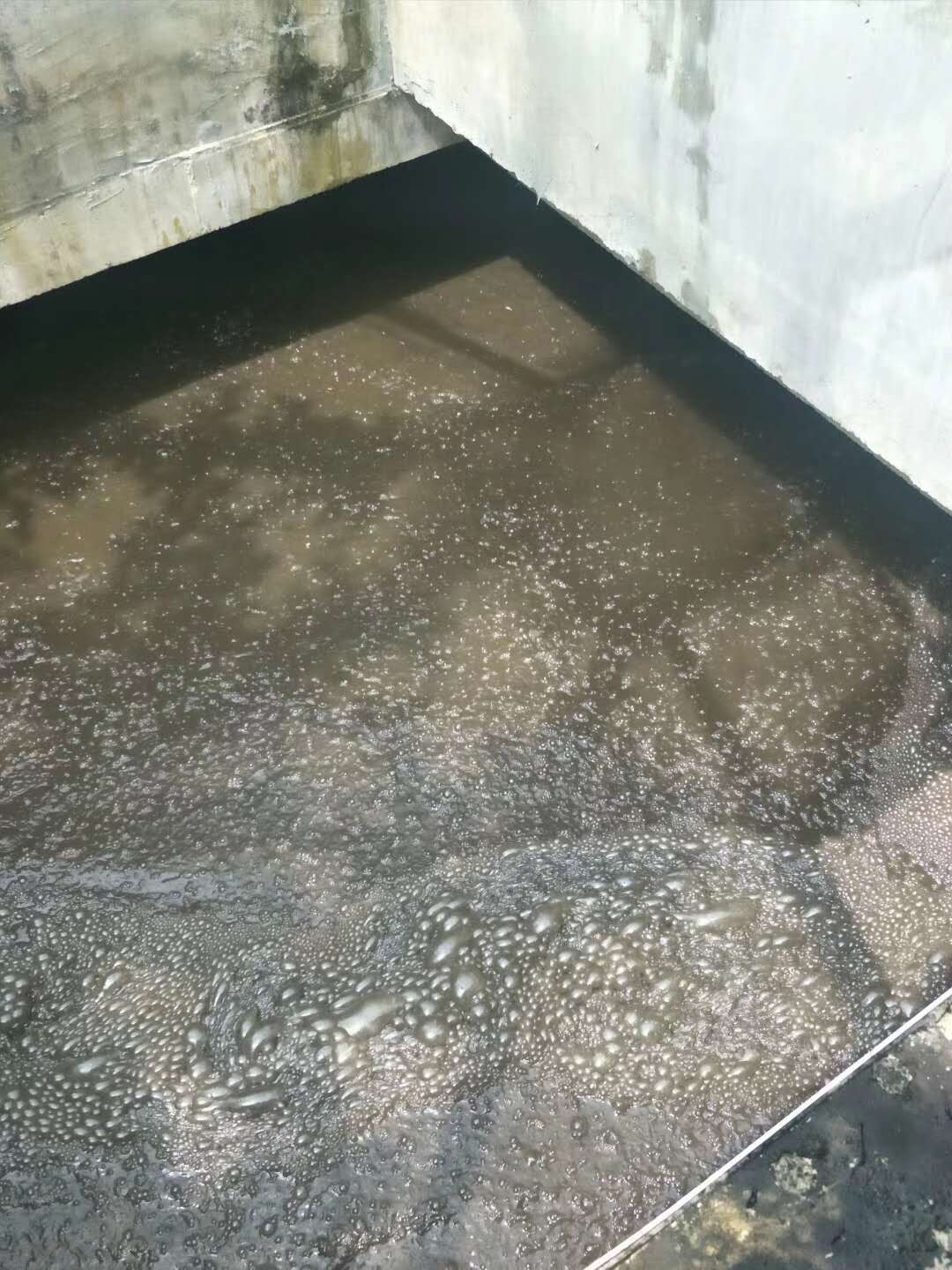

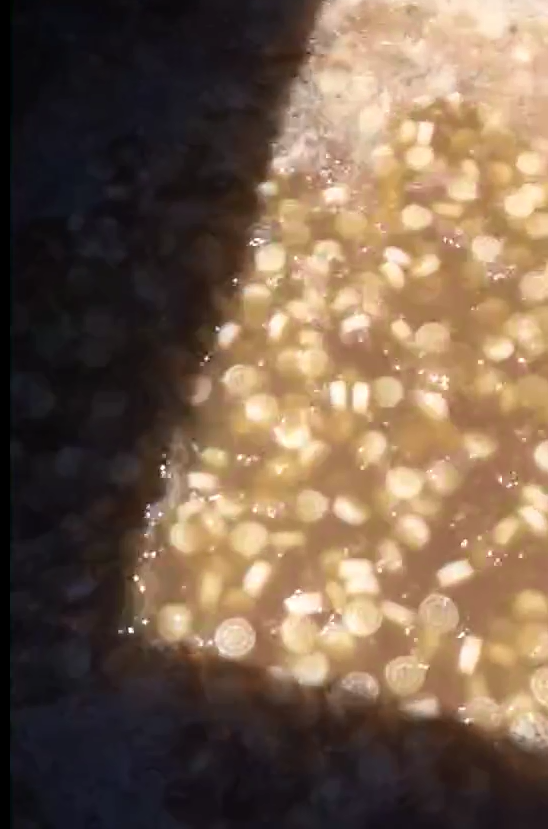

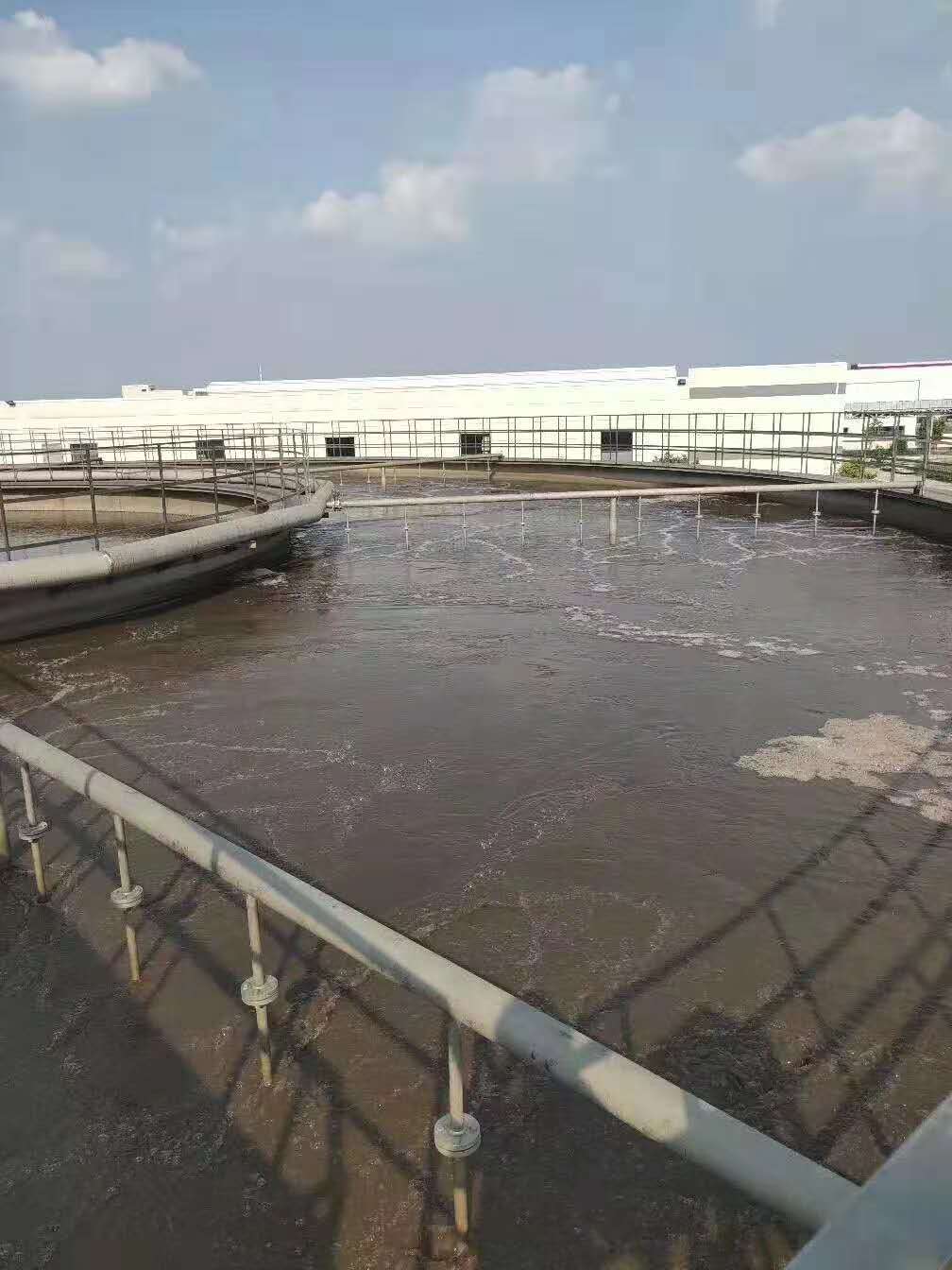

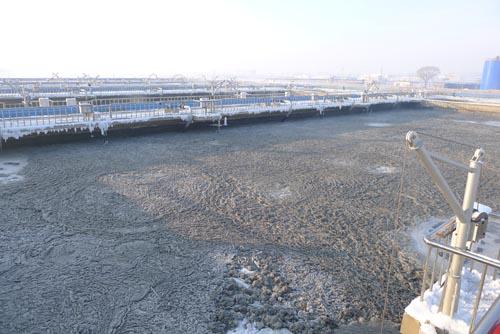

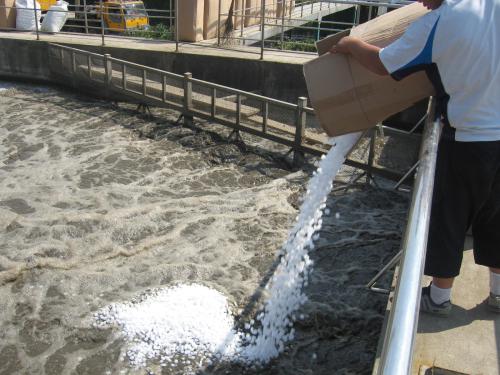

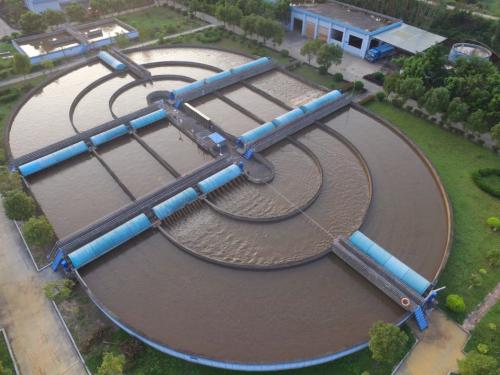

Project Cases
Company Profile

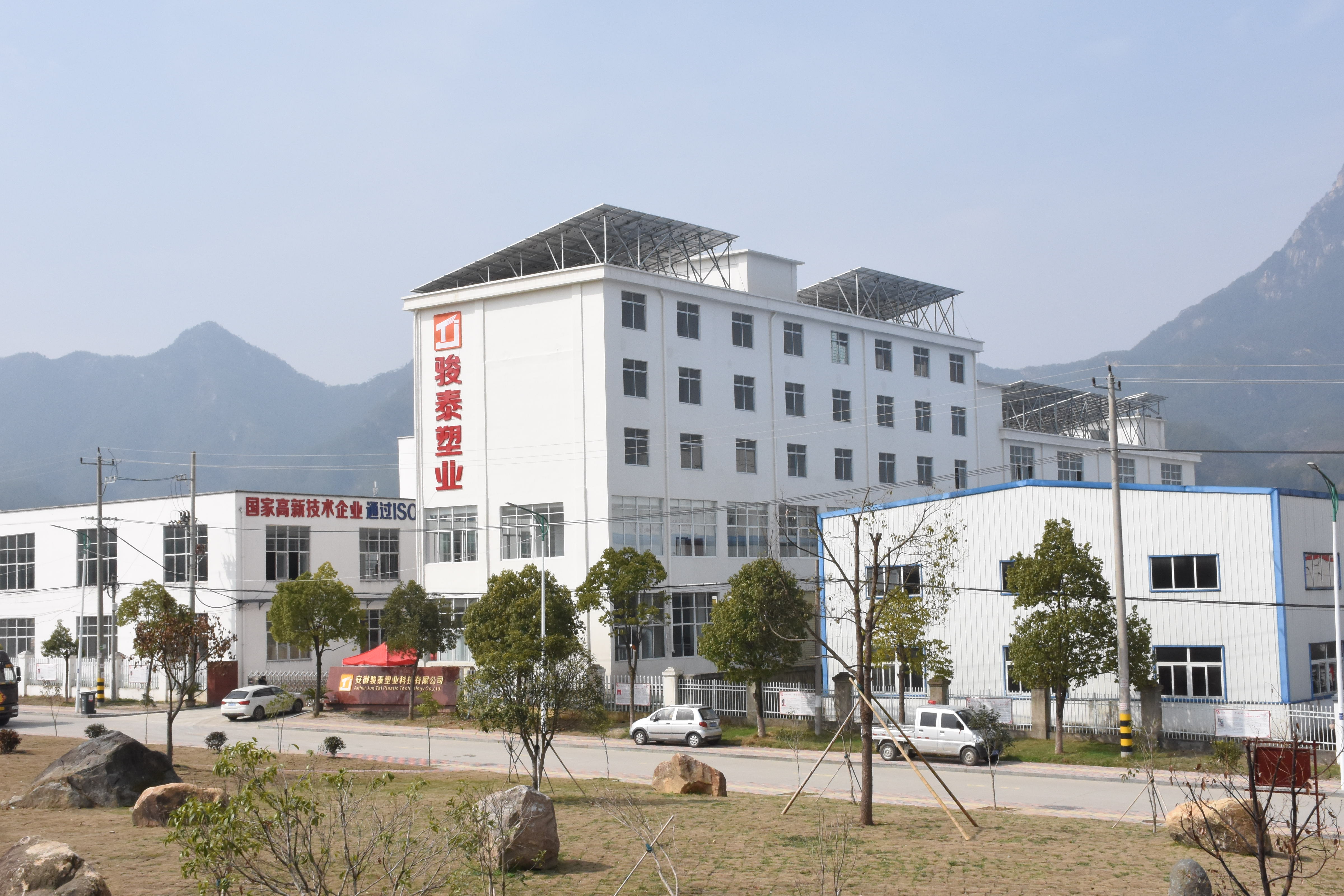

ABOUT COMPANY
Hangzhou Juntai Plastic Products Co. Ltd. , was founded in 2013 in Hangzhou.After Three years,We established factory Anhui Juntai Technology Co., Ltd in Anhui. we won the National high-tech enterprise in 2019 and has 29 patents for MBBR and pvc profiles.Now we become one of leader manufacturer for MBBR Bio Filter Media and PVC profiles.With 21000 m2 factory in Yuexi Anhui; 105 High speed automatic extruded lines and 30 injection lines, The annual capacity of MBBR is more than 70000 CBM; the annual Capacity of PVC profiles and injection parts is more than 5000 tons. High quality with ISO9001-2015, SGS, ROHS and other certifications. With 63 young people with full of passion of Juntai company and try to offer the best plastic goods to the world. Here we have 11 engineers teams of plastic and water treatment, we can design the plastic items for customers. Juntai MBBR Biofilter media widely used in waste water treatment; RAS and other field. With professional environmental engineers , cooperated with three China Universities to ensure high quality while ensuring better service. Juntai products have been exported more than 36 countries, including USA, Sweden, Malaysia, etc. The annual sale more is $15 million. Choose Juntai, and Juntai people will return back you full satisfied.

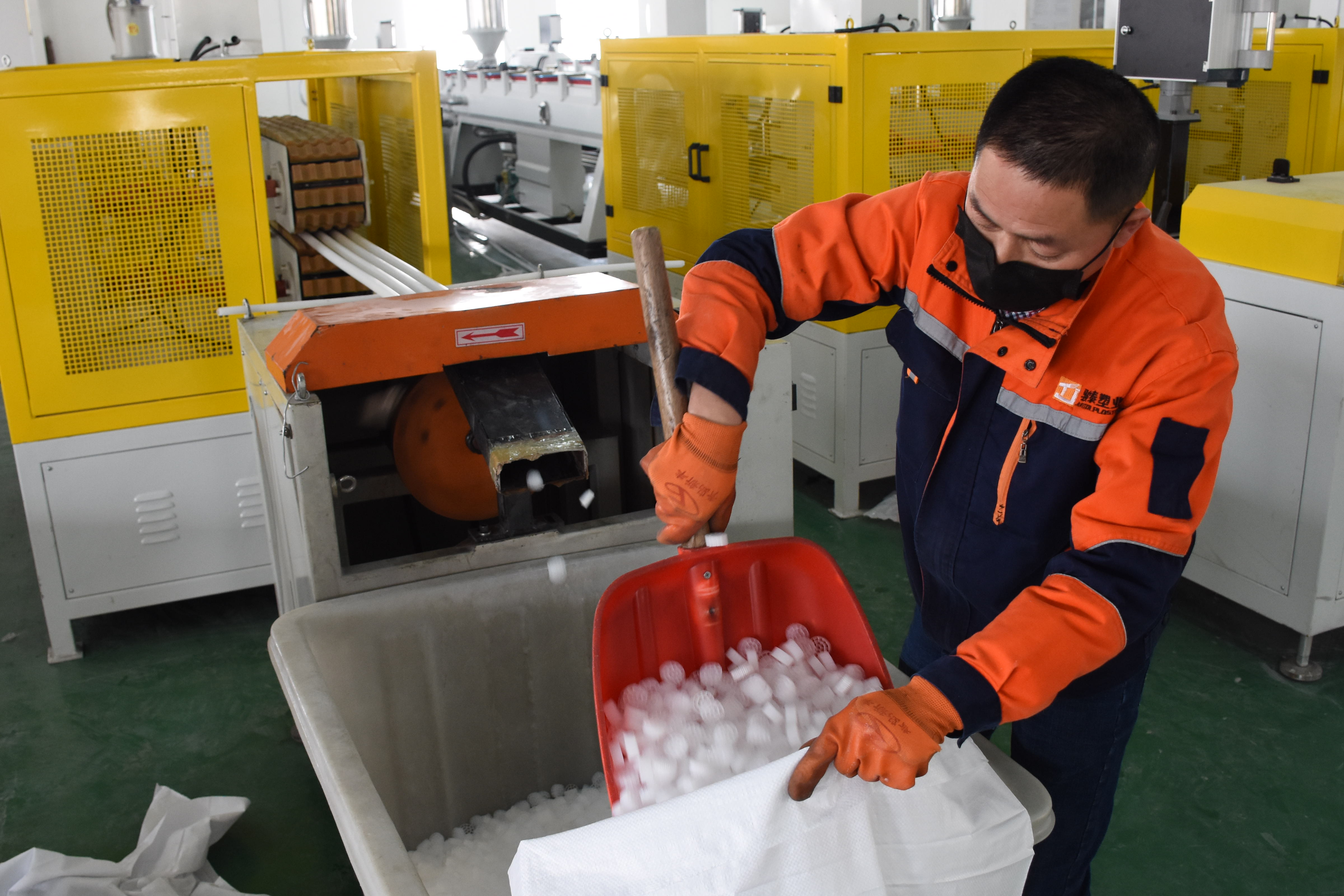

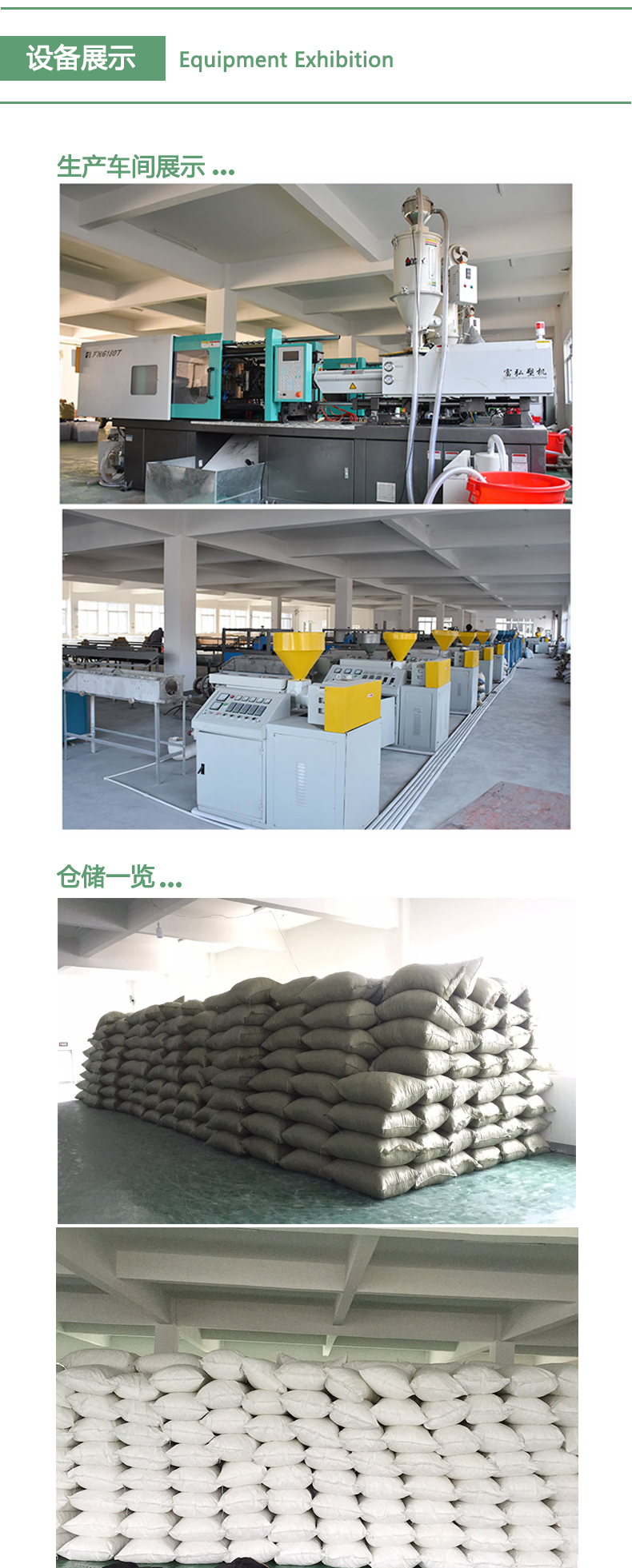

Equipments Exhibition

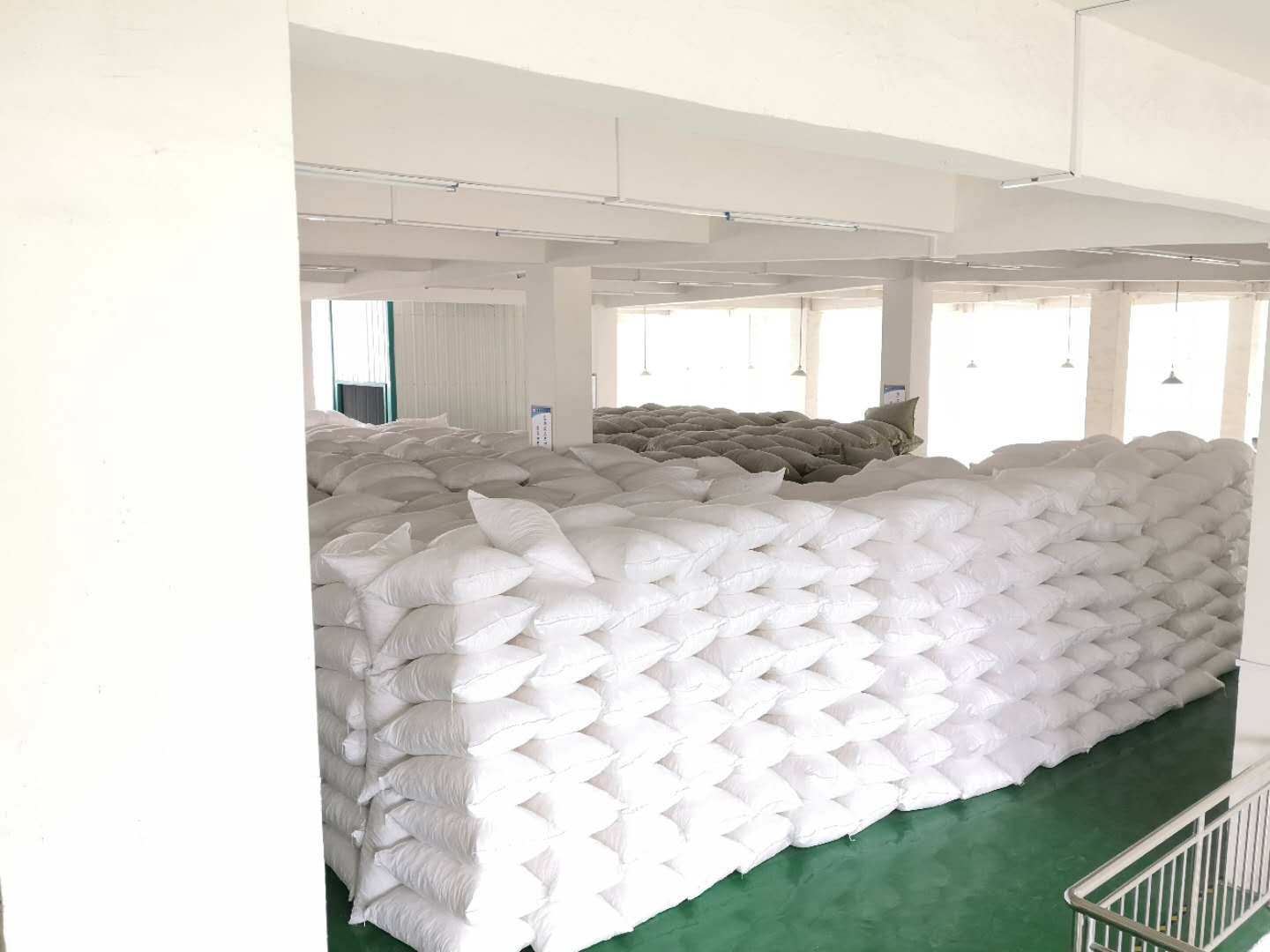

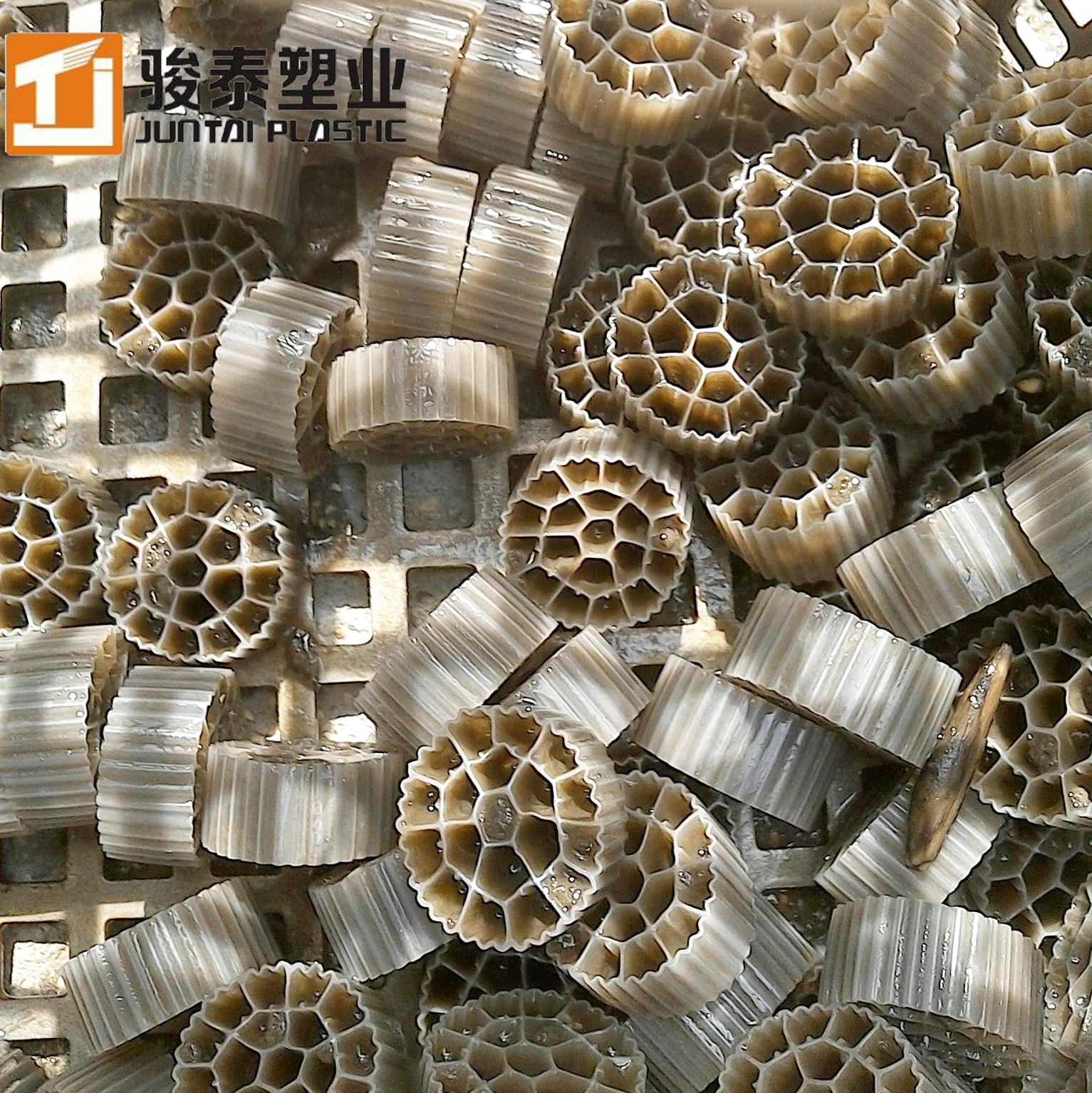

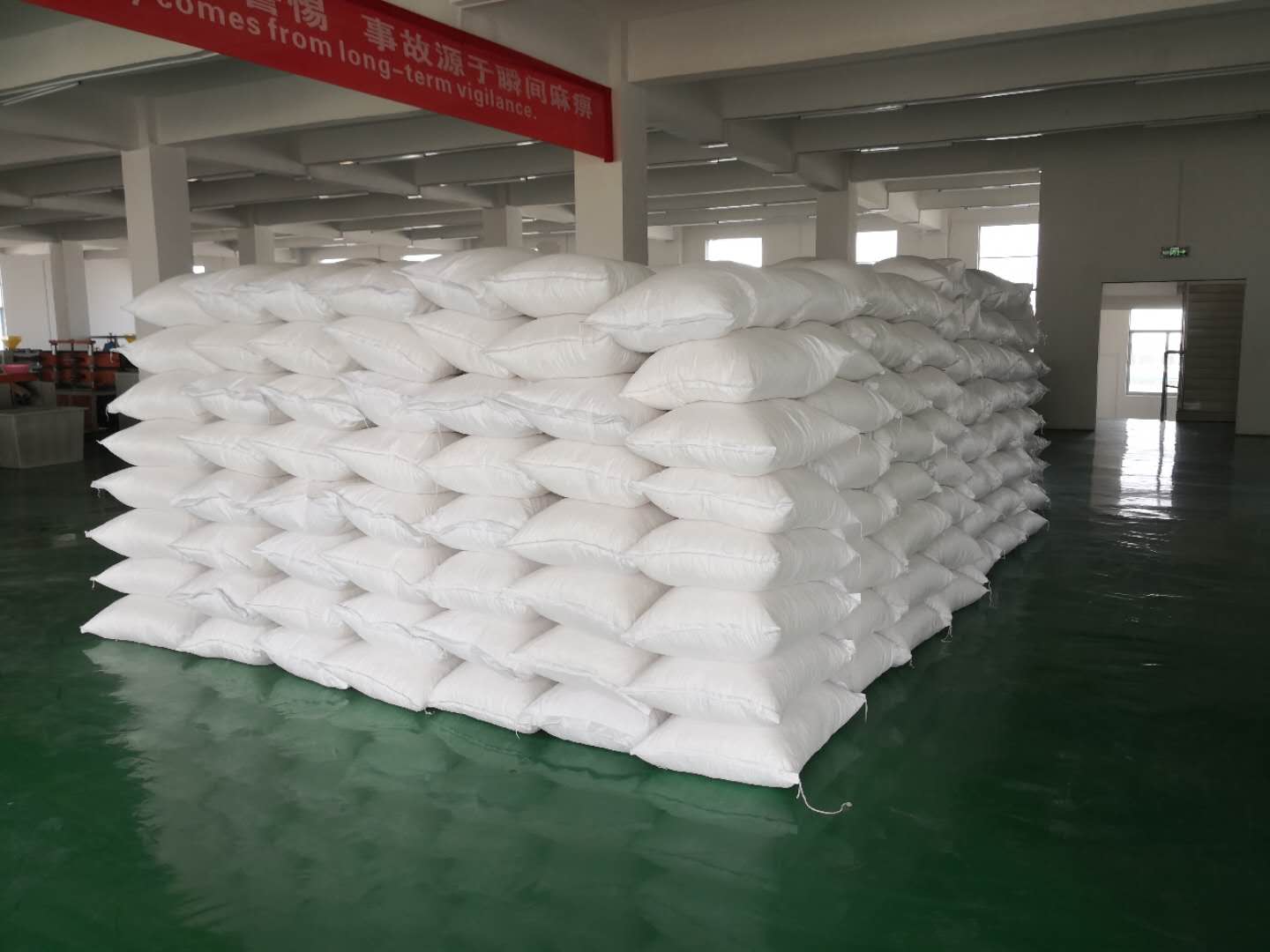

Inventory Display

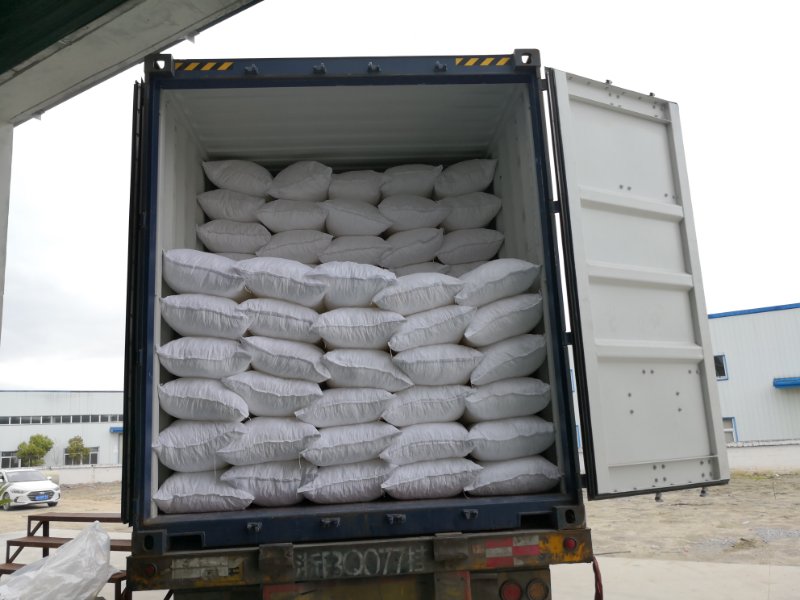

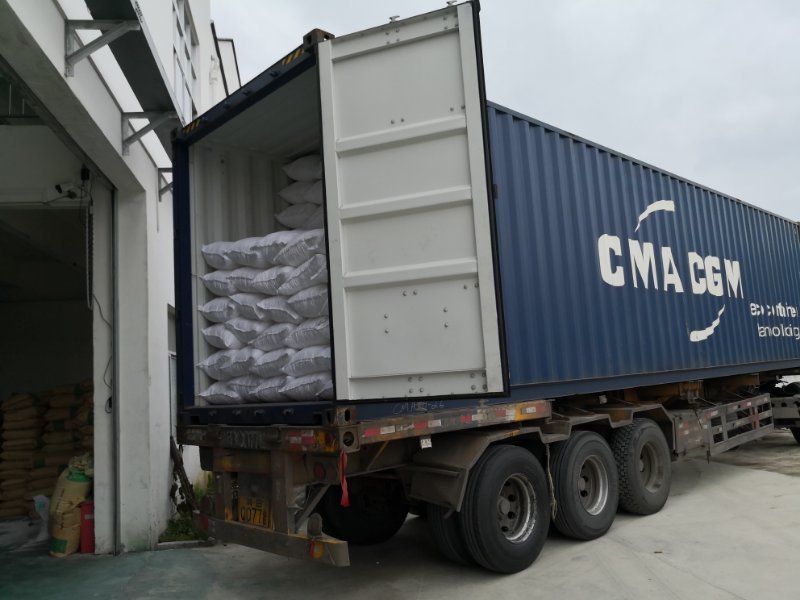

Transport Logistics

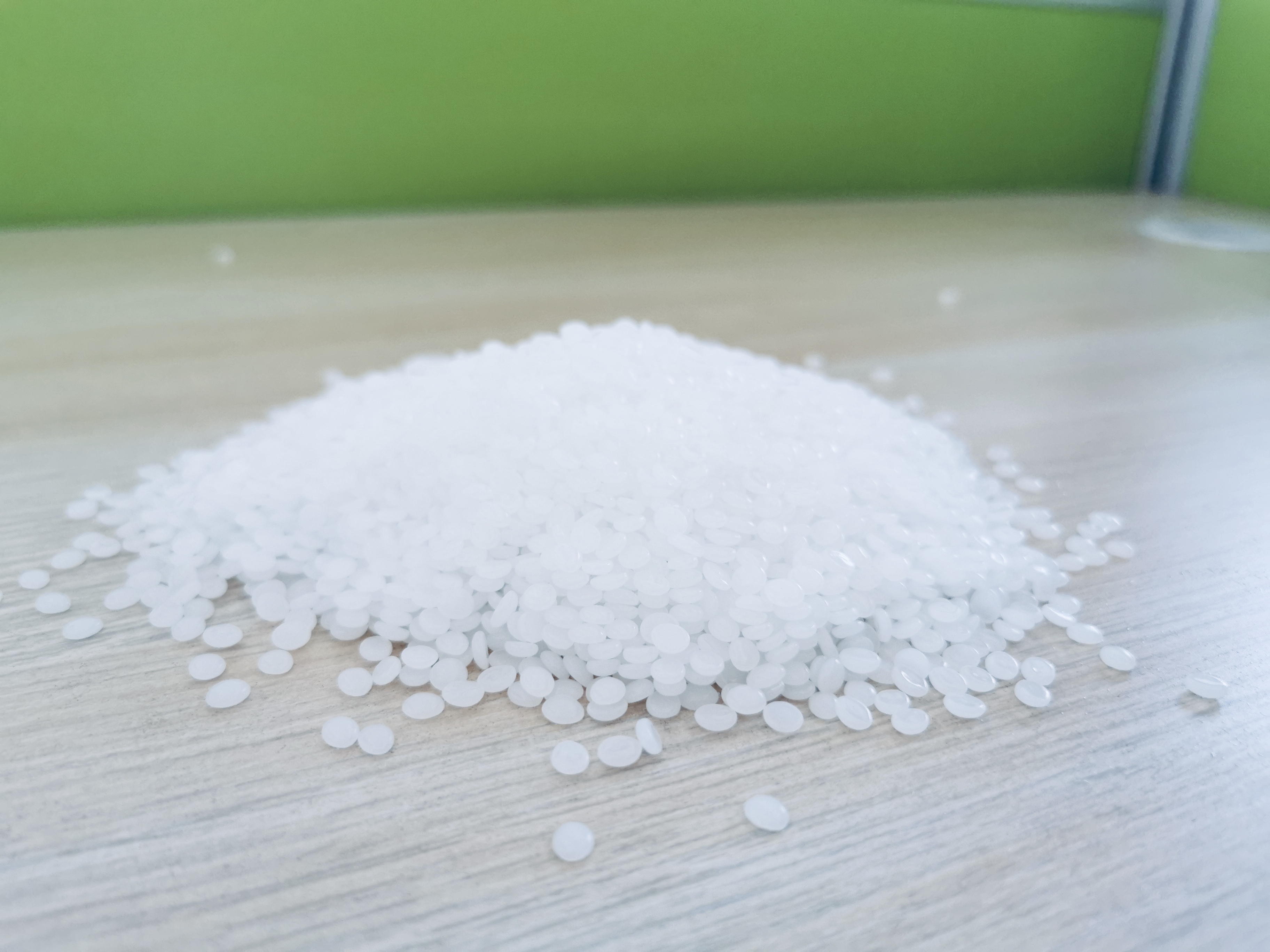

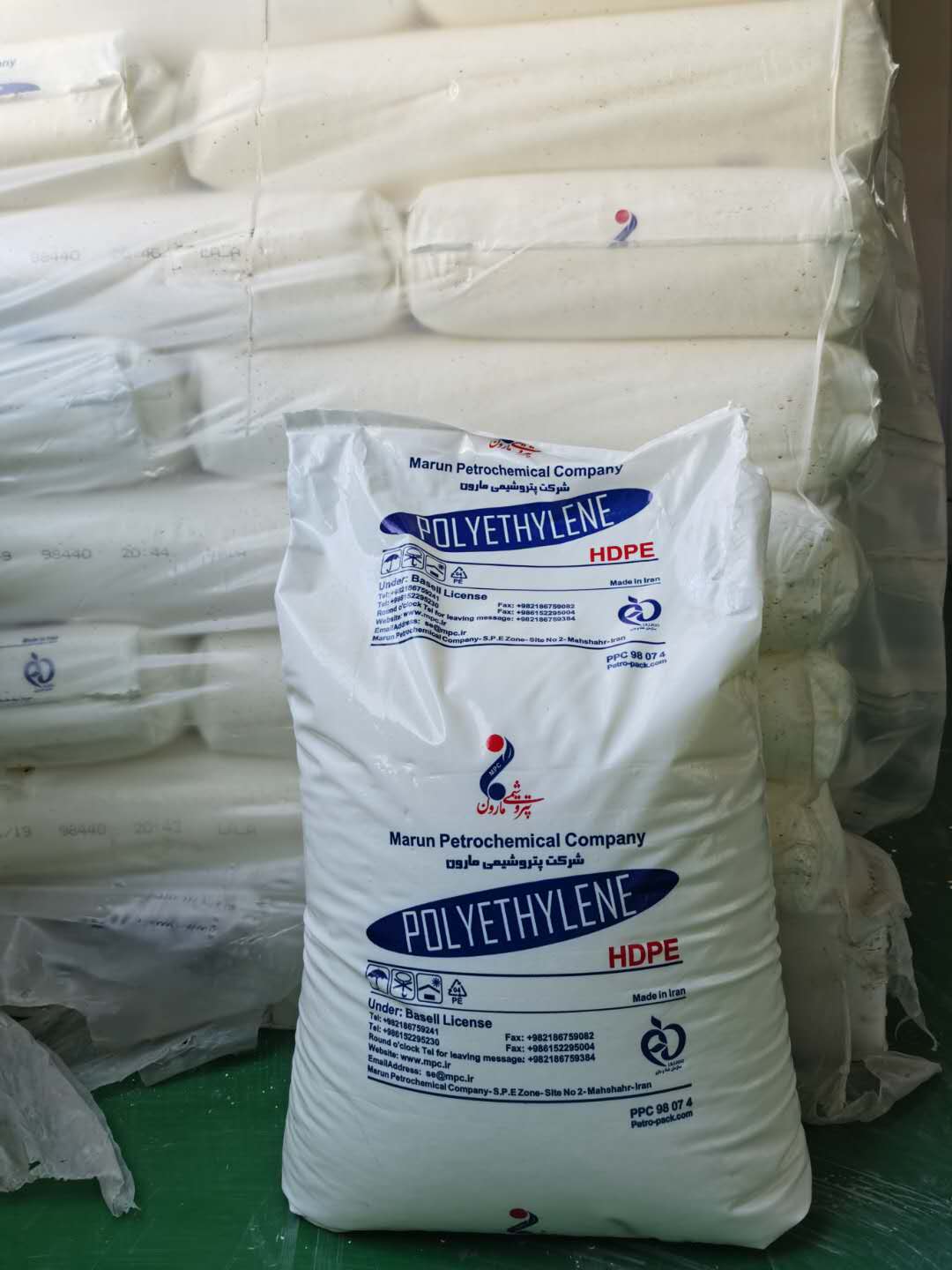

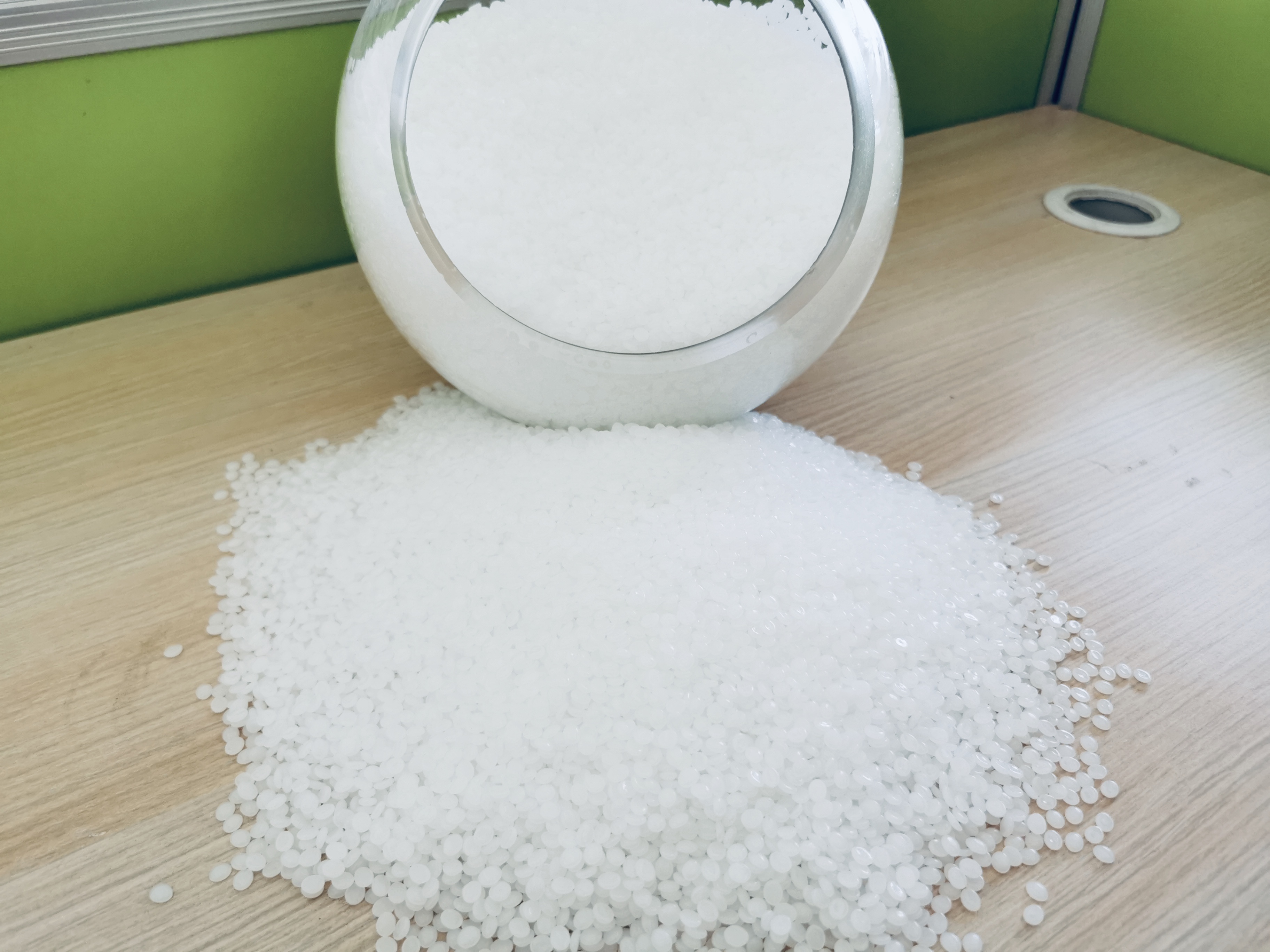

Raw Material Display
Certificate

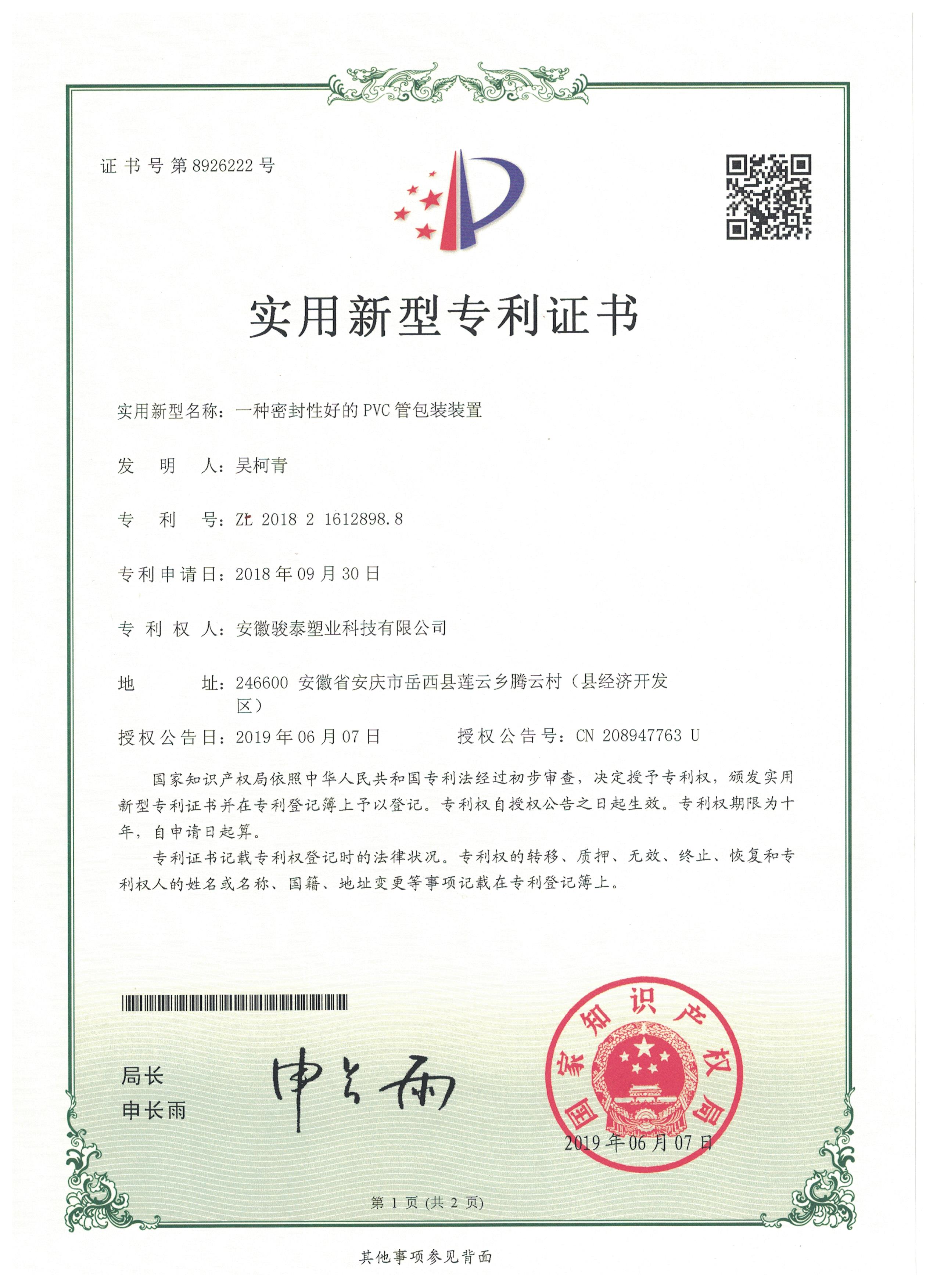

Patent
FAQ
1.Can we get samples?
Yes, 1kg free samples can supply .
2.What's Your Delivery Time?
Normally 15-20days afater order confirm.
3.What is MOQ?
Our MOQ is 1CBM .
4.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
5.How About Container Quantity?
1*20GP can load 30CBM
1*40HQ can load 70cbm
6.What's Your Packing?
Packing is woven bag;0.1m3/1m3 per bag
Yes, 1kg free samples can supply .
2.What's Your Delivery Time?
Normally 15-20days afater order confirm.
3.What is MOQ?
Our MOQ is 1CBM .
4.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
5.How About Container Quantity?
1*20GP can load 30CBM
1*40HQ can load 70cbm
6.What's Your Packing?
Packing is woven bag;0.1m3/1m3 per bag
10 Questions about MBBR Technology
1: how long will it take for the packing to hang up during the low temperature debugging in winter?A: the standard can be well achieved in one month. If the biofilm is actually a process, we divide the biofilm into two angles. the first is that our naked eye can see that there is an obvious biofilm on the filler, which takes seven days, and the second is the time to reach the standard. if this time is in winter, it is probably within a month. The third is the time when the biofilm is fully mature, which will be longer, because from a professional point of view, the biofilm has to go through at least one alternation of winter and summer before the colonies above it can finally be stable. In conclusion, although from an academic point of view, our stability is probably after a winter and summer, from the point of view of our effect, the water can reach the standard within 30 days, and about seven days from the point of view of naked eye recognition. 2. Is it necessary to add additional biological agents in the MBBR treatment process?A: strictly speaking, MBBR does not need to add bacteria, so through reasonable optimization parameters, it can be naturally enriched, such as our nitrifying bacteria or denitrifying bacteria, because its biofilm conditions are conducive to the attachment of related bacteria, for example, anamination is also beneficial to the attachment of our anaminergic bacteria under specific conditions. Well, under special water quality conditions, for example, there are some non-degradable water quality or the source of water quality is relatively single, and some specific bacterial agents have special effects, so they can be used as the initial inoculation, and there is no need to add them later. To sum up, it is not necessary under the condition of domestic sewage, but it can be used as a research proposition to do related research under some specific wastewater conditions3. Some experts in the industry say that the packing is easy to clog and the flow pattern is difficult to control?A: this question cannot be called a problem. It should be a difficult one. It is because of such difficulties that different technical teams and manufacturers can be screened out to overcome the difficulties in order to take the lead in the world. If something goes wrong, it will be gradually eliminated by the market.4. Does MBBR, need denitrification flushing?Answer: the biggest advantage of MBBR is that compared with the traditional biofilm, it does not need backwashing, because its biofilm falls off automatically. From our research, we found that when your biofilm is more active, its extracellular polymer secretion will be more, and its stickiness will be strong. So when it ages, the extracellular secretion decreases, its viscosity weakens, it will automatically fall off in the process of fluidization, and then a new biofilm will grow up, so it does not need to be washed. 5. What is the magic of MBBR?Answer: the core of MBBR is two, one is filler, the other is fluidization, and the filler is used as a carrier. At present, there is not a unified study to show how much influence its performance has, but its shape will have an impact on fluidization, so it is said that flat cylindrical packing is the most widely used at home and abroad. Then the research on fillers has been going on, and you can try to take a look at different fillers. Which is the best. However, from an engineering point of view, the dimensions to be evaluated, such as performance, biofilm speed, final stability, life, wear resistance and so on, so from now on, the core of the suspension carrier is still fluidization.
6. The filling rate of MBBR system?
A: at present, the verified limit filling rate is 67%, the maximum aerobic zone that can be achieved in the project is 60%, and the anoxic zone is 50%7. Must the fillers of MBBR be modified?A: I think the fillers do not need to be modified, and there is no problem with the existing fillers. Through numerous engineering practices, it has been proved that the fillers can still achieve very good results. In my eyes, the modification of fillers is still a category of research, but not within the scope of engineering.8. Can MBBR run at 3 degrees water temperature?A: in the current practical cases in Xinjiang, the water temperature is about 7 to 8 degrees can operate stably. The water temperature of 3 degrees has not been encountered in China, but it is understood that the water intake of the foreign Norwegian Nordheim sewage treatment plant (which serves for the Winter Olympic Games) is meltwater of ice and snow, and the water temperature is 3 degrees, which can reach the standard steadily through practice.9. With regard to Wuxi Lucun sewage treatment Plant, the first large-scale sewage treatment plant in China to apply MBBR, do its aeration and pusher exist at the same time?Answer: Wuxi Lucun sewage treatment Plant is the first water plant in China to implement Class A standard, and it is also the first water plant to adopt a large-scale IFAS/MBBR system. Lucun is a circulating flow pool type, which is similar to the traditional bottom aeration oxidation ditch mode, which has both pusher and aeration, but there can be no aeration near the thruster during installation. 10. Will the fillers easily produce sludge bulking?Answer: the main reason for sludge bulking is filamentous bacteria, so reports from foreign countries show that fillers help to weaken sludge bulking, because it can break the “long” filamentous bacteria in the sludge system. If it is a normal sludge floc, and the size of sludge floc is much smaller than the size of the filler, it will not break sludge, so foreign research shows that MBBR is beneficial to improve sludge sedimentation. From our engineering practice, it is not found that the system using MBBR has obvious characteristics of sludge bulking.
