Hydrophilic polyurethane bio MBBR carrier media of large surface area

Hydrophilic polyurethane bio MBBR carrier media of large surface area

Price:: USD 150.00-199.00
Minimum order quantity: 1
Supply Ability: 200.0 / Day
Country of Origin: shanghai

Quantity:

Product Description

Material:Polyurethane
Surface area:>3450m2/m3
Porosity:96%
Proportion:15~30%
Condition:New
After Warranty Service:Video technical support
After Warranty Service:Online support
Local Service Location:None
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Warranty of core components:Not Available
Warranty:More than 5 years
After-sales Service Provided:Online support
Productivity:200L/Hour
Place of Origin:CN;ANH
Applicable Industries:Hotels
Applicable Industries:Manufacturing Plant
Applicable Industries:Farms
Applicable Industries:water treatment
Core Components:PU
Brand Name:juntai
Material:Dry compression packaging
Weight:13kg/CBM
Size:20*20*20
Power:/

Product Description

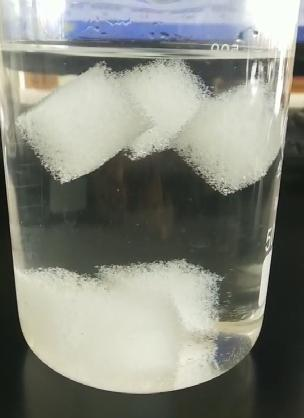

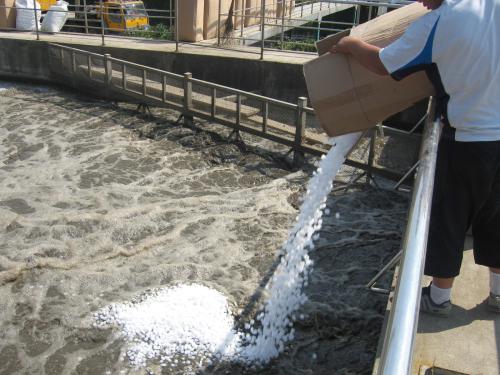

4pcs HPU MBBR floating in the

medium of the water

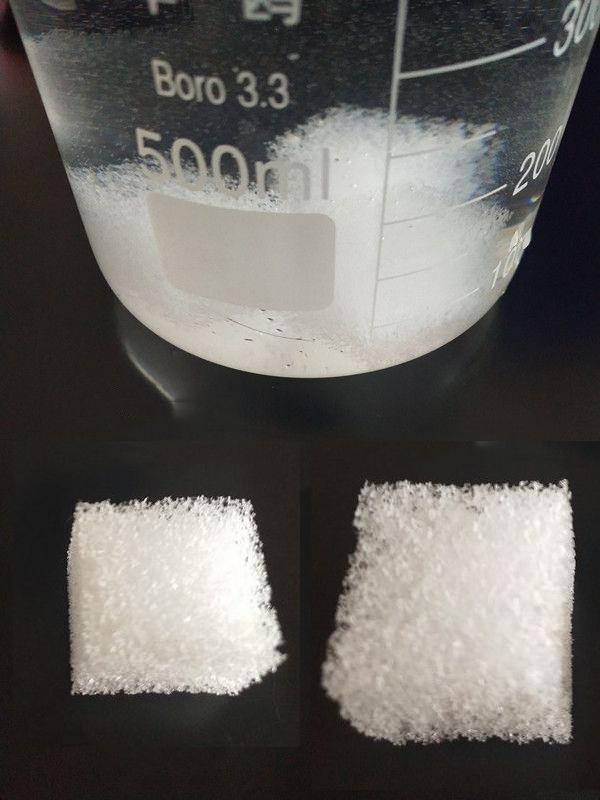

HPU MBBR Bio Media will

expand when it is exposed to water,
and the expansion coefficient is
about 1.7 times

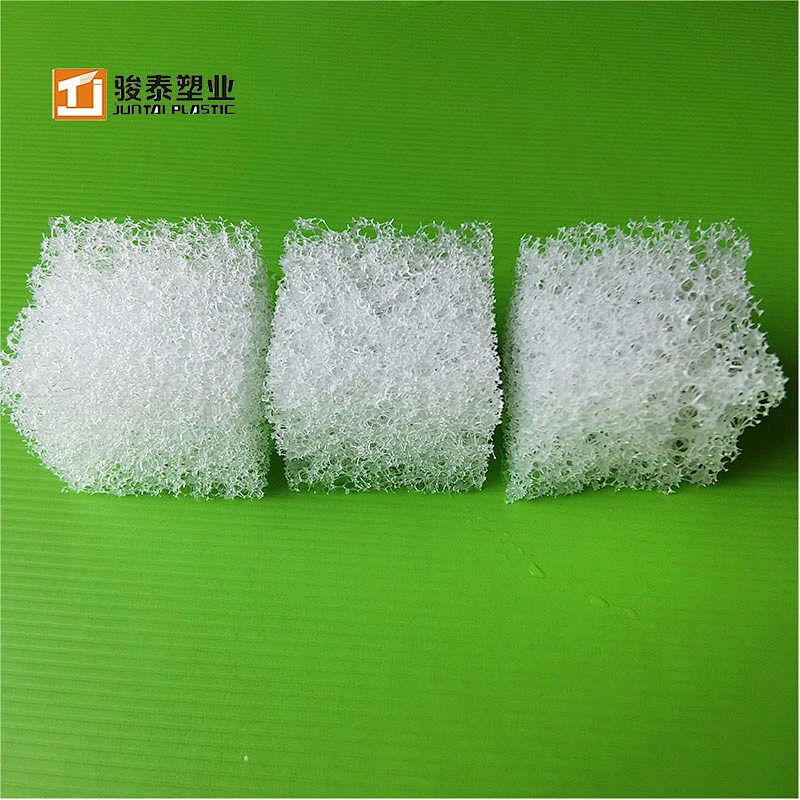

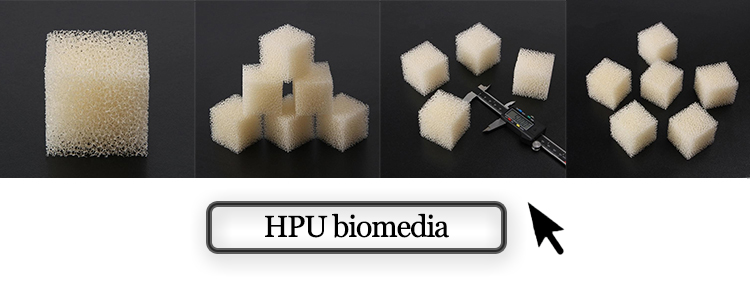

HPU Biomedia Parameter

Item	Unit	Reference Data	Mark
Material		Hydrophilic Polyurethane	HPU
Specification	mm	202020 303030
Density	kg/m³	13±0.5
Packing	n/m³	44000±2000
Packing Method		13kgs/cbm 2bags/cbm	Dry compression packaging
Surface Area	m²/m³	＞3450
Porosity	%	96
Proportion	%	15~30
Biofilm Time	day	7~10
NH₃-N	gNH₃-N/m³*d	600~1300
BOD₅	gBOD₅/m³*d	1000~5000
COD₅	gCOD₅/m³*d	1000~7500
Use PH		6~10
Temperature		1~50
Life-span		More than 5 years, add 5% every year after 3 years

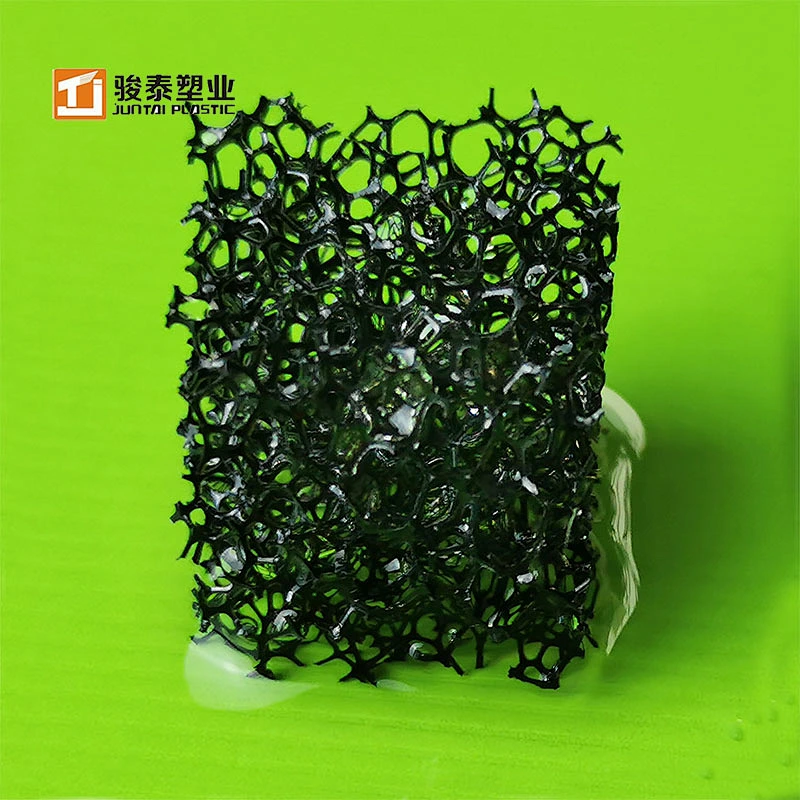

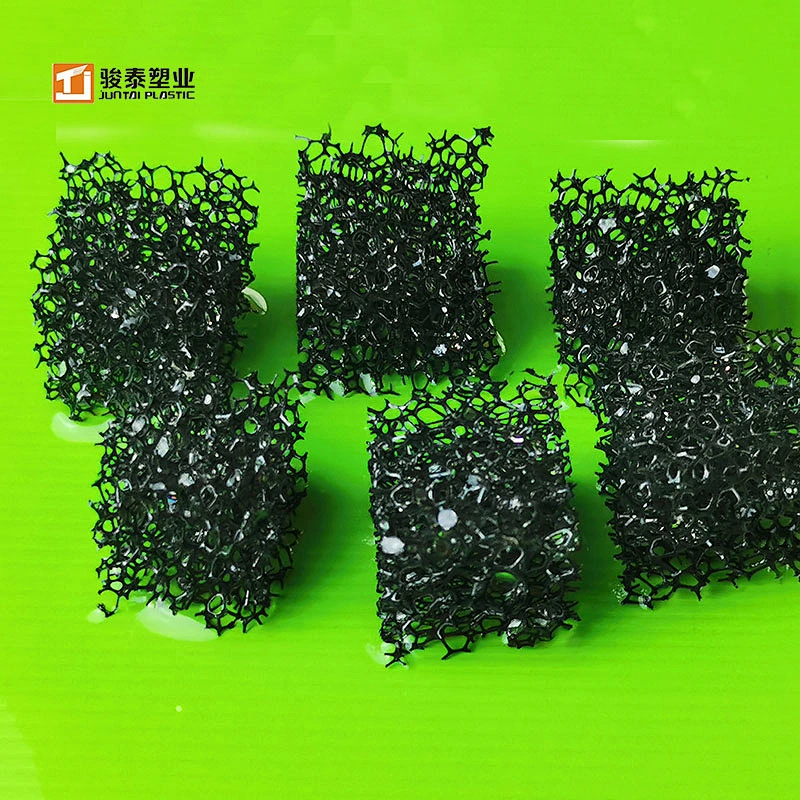

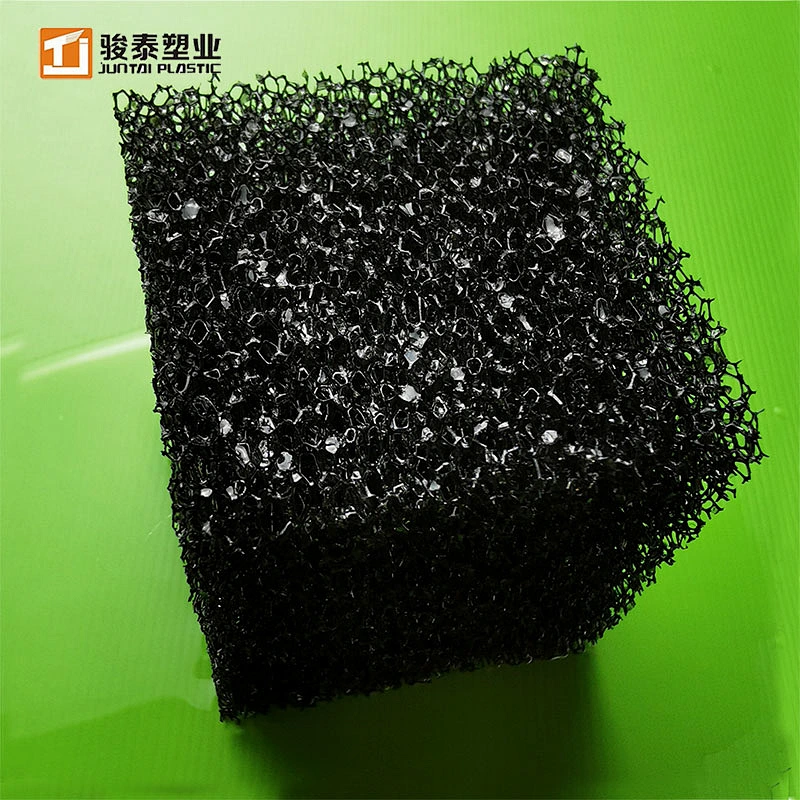

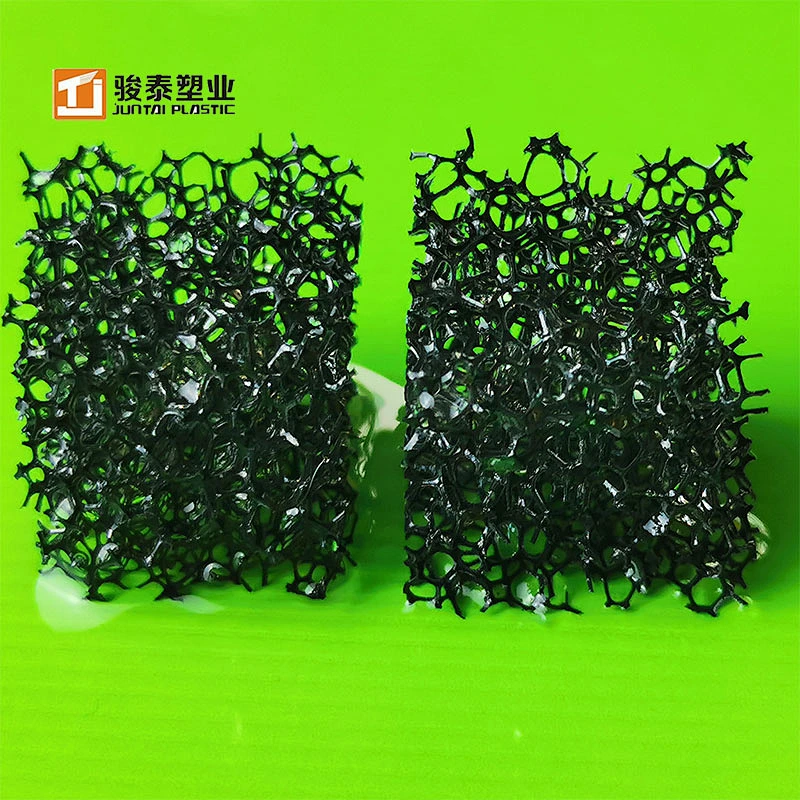

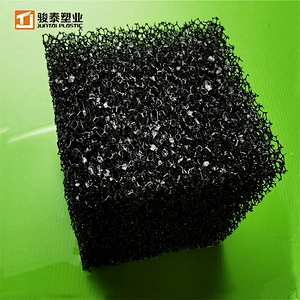

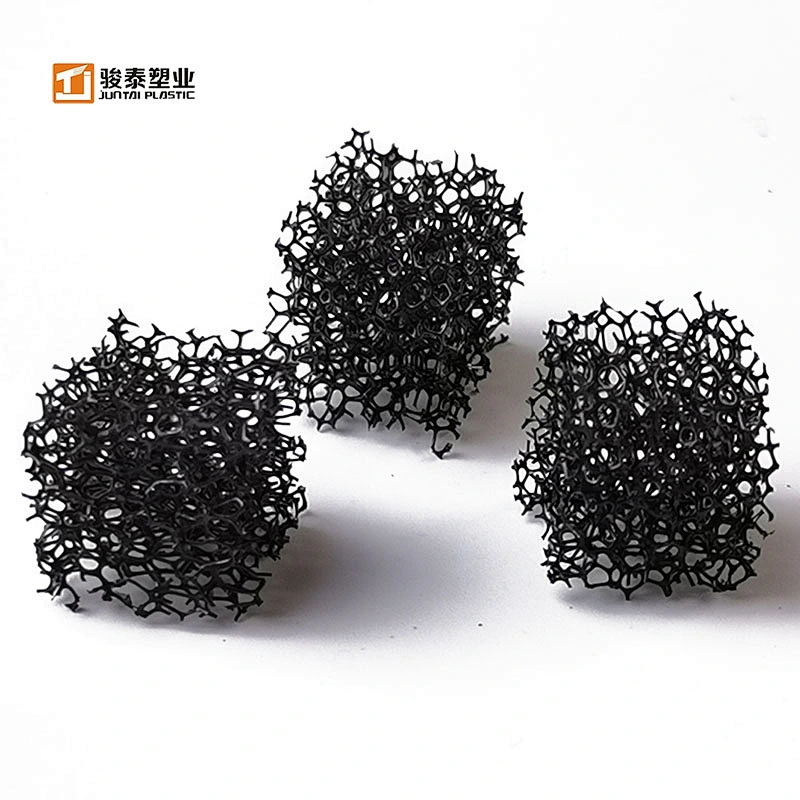

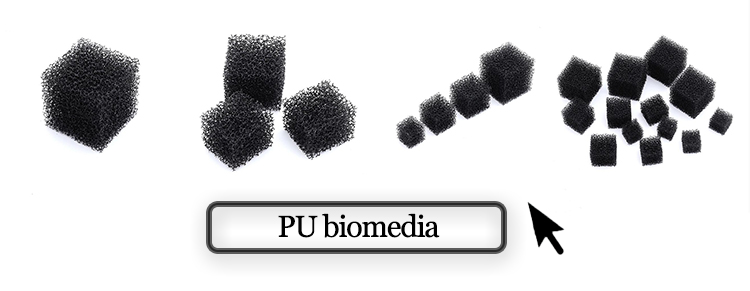

PU Biomedia Parameter

Item	Unit	Reference Data	Mark
Material		Polyurethane	PU
Specification	mm	303030
Packing Method		20kgs/cbm 5bags/cbm	Dry compression packaging
Surface Area	m²/m³	＞3450
Porosity	%	96
Proportion	%	15~30
Biofilm Time	day	7~10
NH₃-N	gNH₃-N/m³*d	600~1300
BOD₅	gBOD₅/m³*d	1000~5000
COD₅	gCOD₅/m³*d	1000~7500
Use PH		6~10
Temperature		1~50
Life-span		More than 5 years, add 5% every year after 3 years

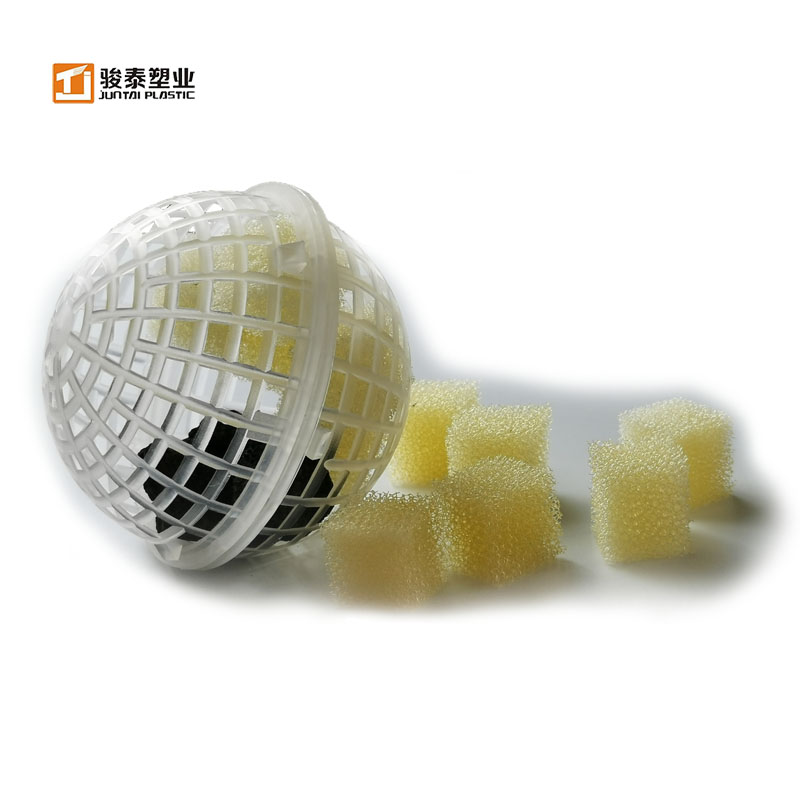

Polyurethane Suspension MBBR Bio Media

Item	Ball Spess	MBBR Specs
Ball HPU 80	Ball HPU 80 Diameter:80mm Material:PP	5pcs 202020mm Material:White
Ball PU 80	Ball PU 80 Diameter:80mm Material:PP	3pcs 303030mm Material:Black
Ball HPU 100	Ball HPU 100 Diameter:100mm Material:PP	10pcs 202020mm) Material:White
Ball PU 100	Ball PU 80 Diameter:100mm Material:PP	6pcs303030mm Material:Black

Application Field

1. Industrial Sewage

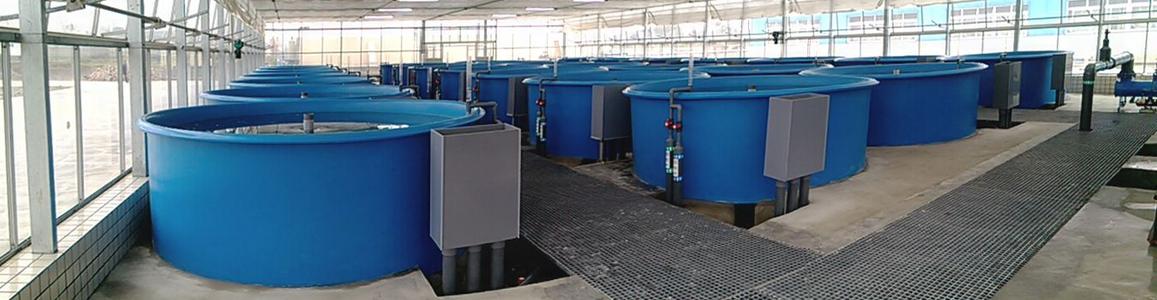

2.Recirculating Aquaculture Systems(RAS)

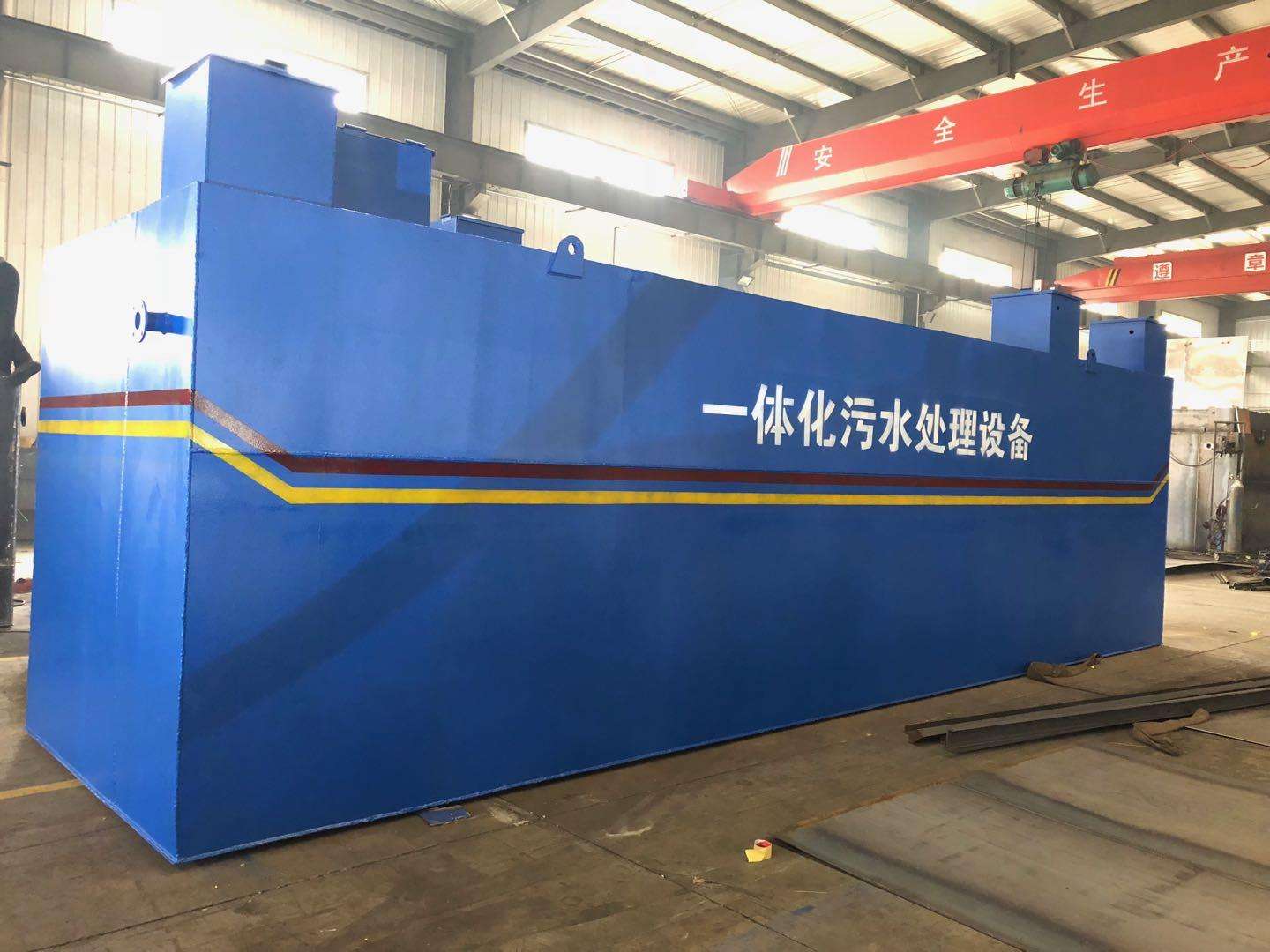

3.Integrated Equipment

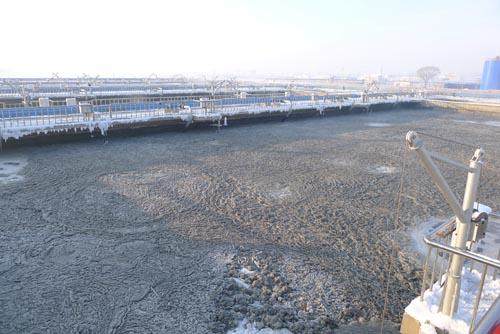

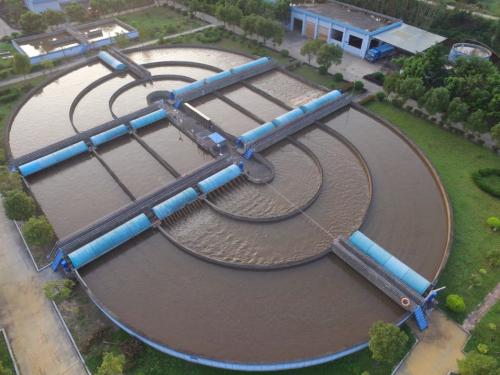

4.Oxidation Ditch Process

5.Activated Sludge Modification Process

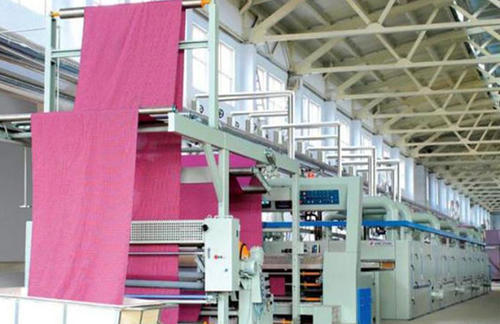

6.Textile Dyeing Industry

Company Profile

ABOUT COMPANY

Hangzhou Juntai Plastic Products Co. Ltd. , was founded in 2013 in Hangzhou.After Three years,We established factory Anhui Juntai Technology Co., Ltd in Anhui. we won the National high-tech enterprise in 2019 and has 29 patents for MBBR and pvc profiles.Now we become one of leader manufacturer for MBBR Bio Filter Media and PVC profiles.With 21000 m2 factory in Yuexi Anhui; 105 High speed automatic extruded lines and 30 injection lines, The annual capacity of MBBR is more than 70000 CBM; the annual Capacity of PVC profiles and injection parts is more than 5000 tons. High quality with ISO9001-2015, SGS, ROHS and other certifications. With 63 young people with full of passion of Juntai company and try to offer the best plastic goods to the world. Here we have 11 engineers teams of plastic and water treatment, we can design the plastic items for customers. Juntai MBBR Biofilter media widely used in waste water treatment; RAS and other field. With professional environmental engineers , cooperated with three China Universities to ensure high quality while ensuring better service. Juntai products have been exported more than 36 countries, including USA, Sweden, Malaysia, etc. The annual sale more is $15 million. Choose Juntai, and Juntai people will return back you full satisfied.

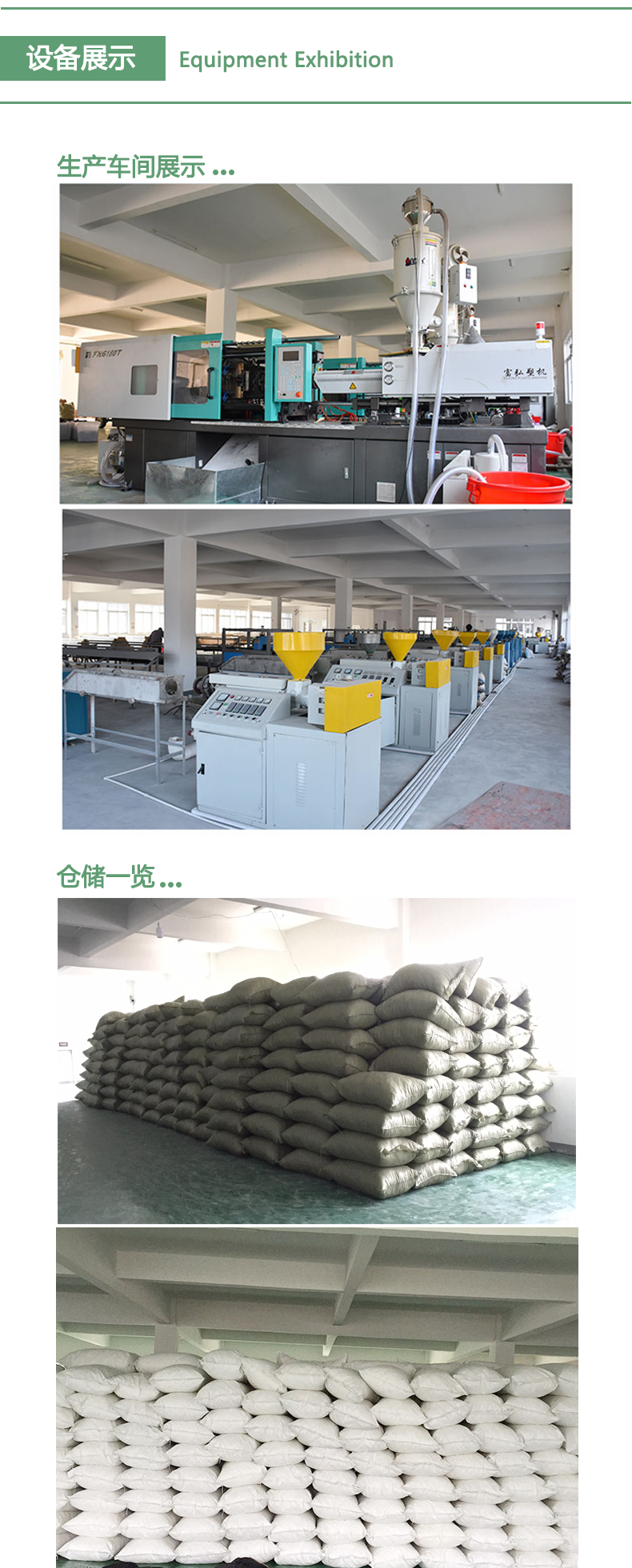

Equipments Exhibition

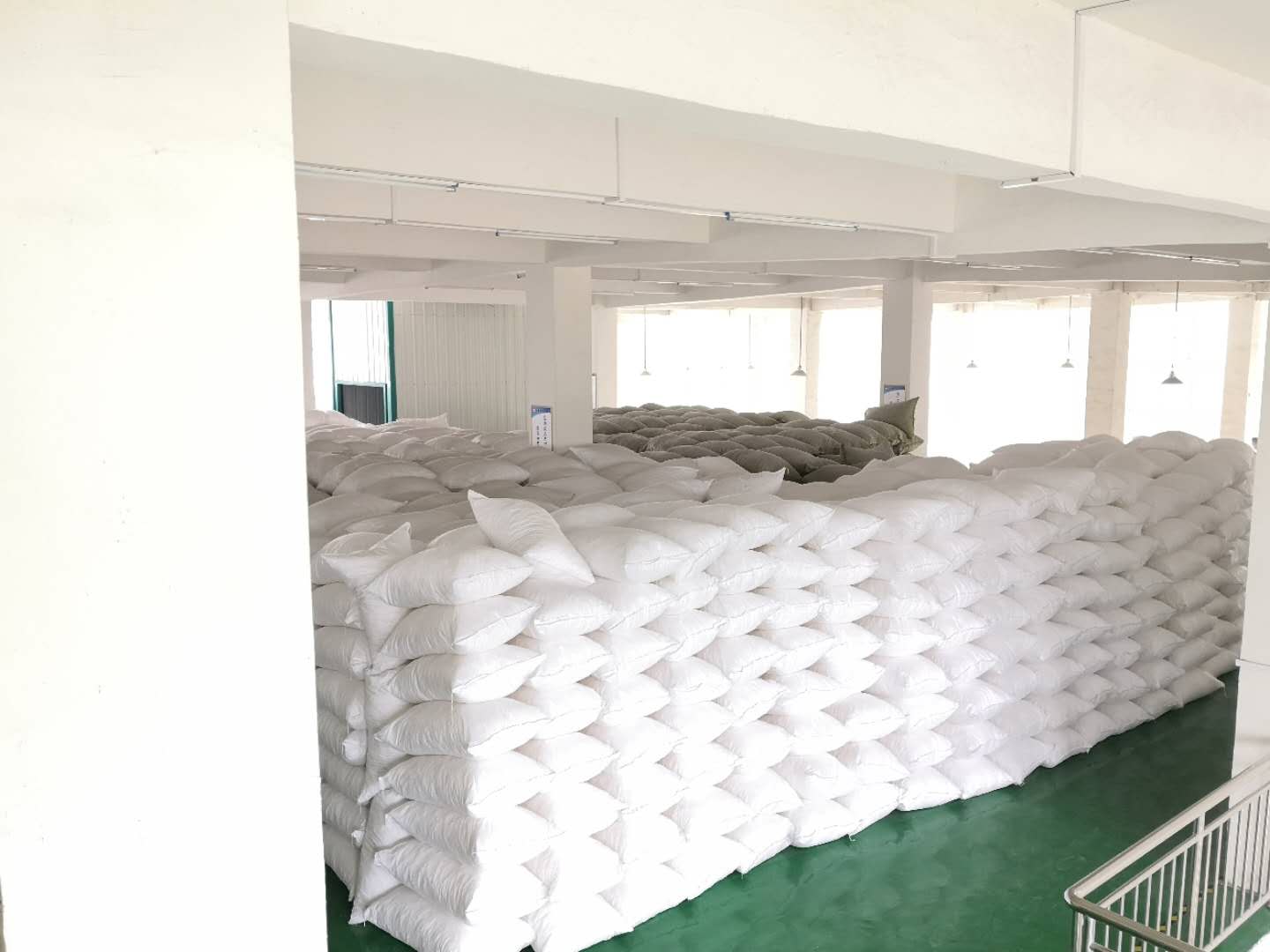

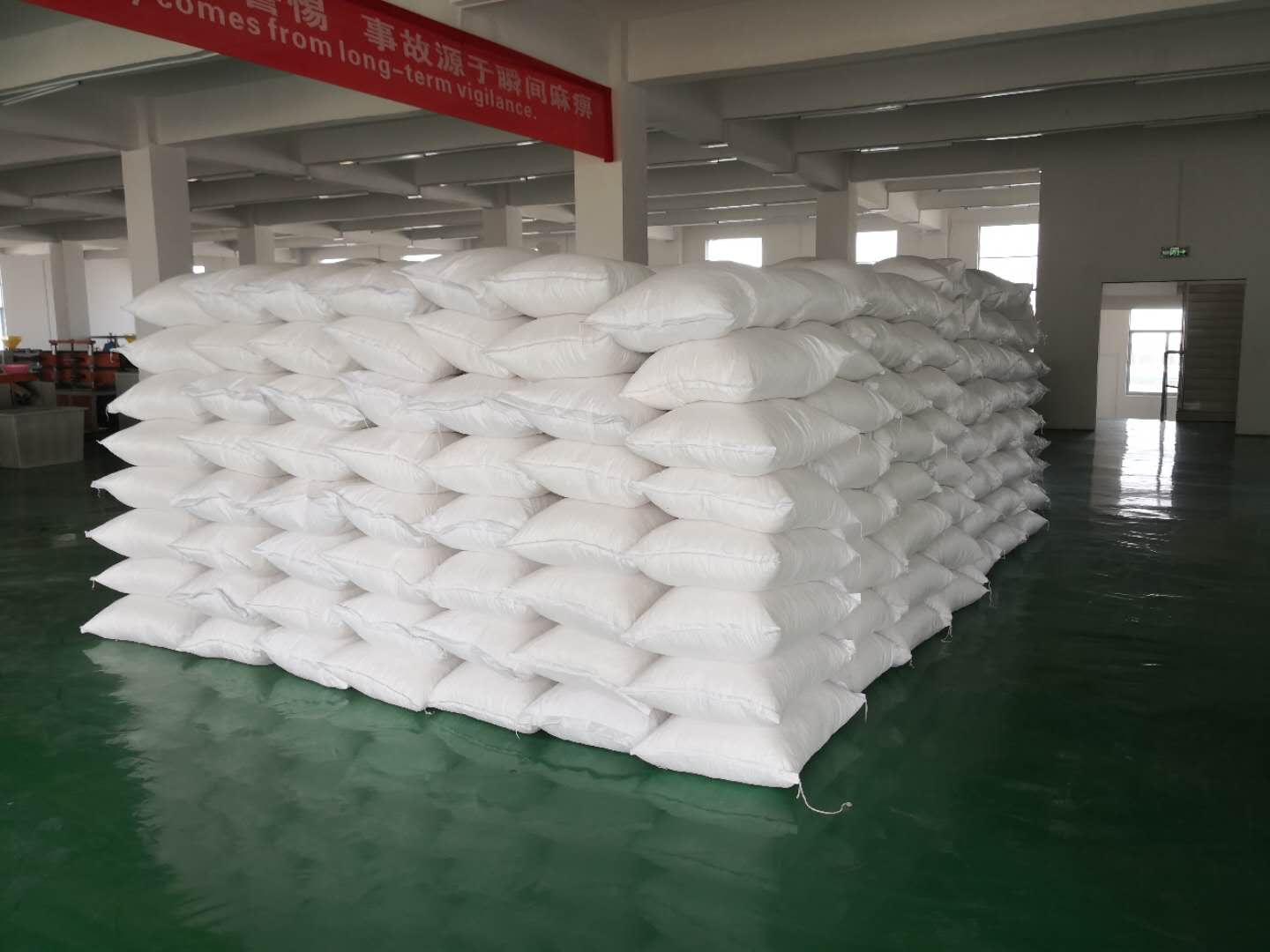

Inventory Display

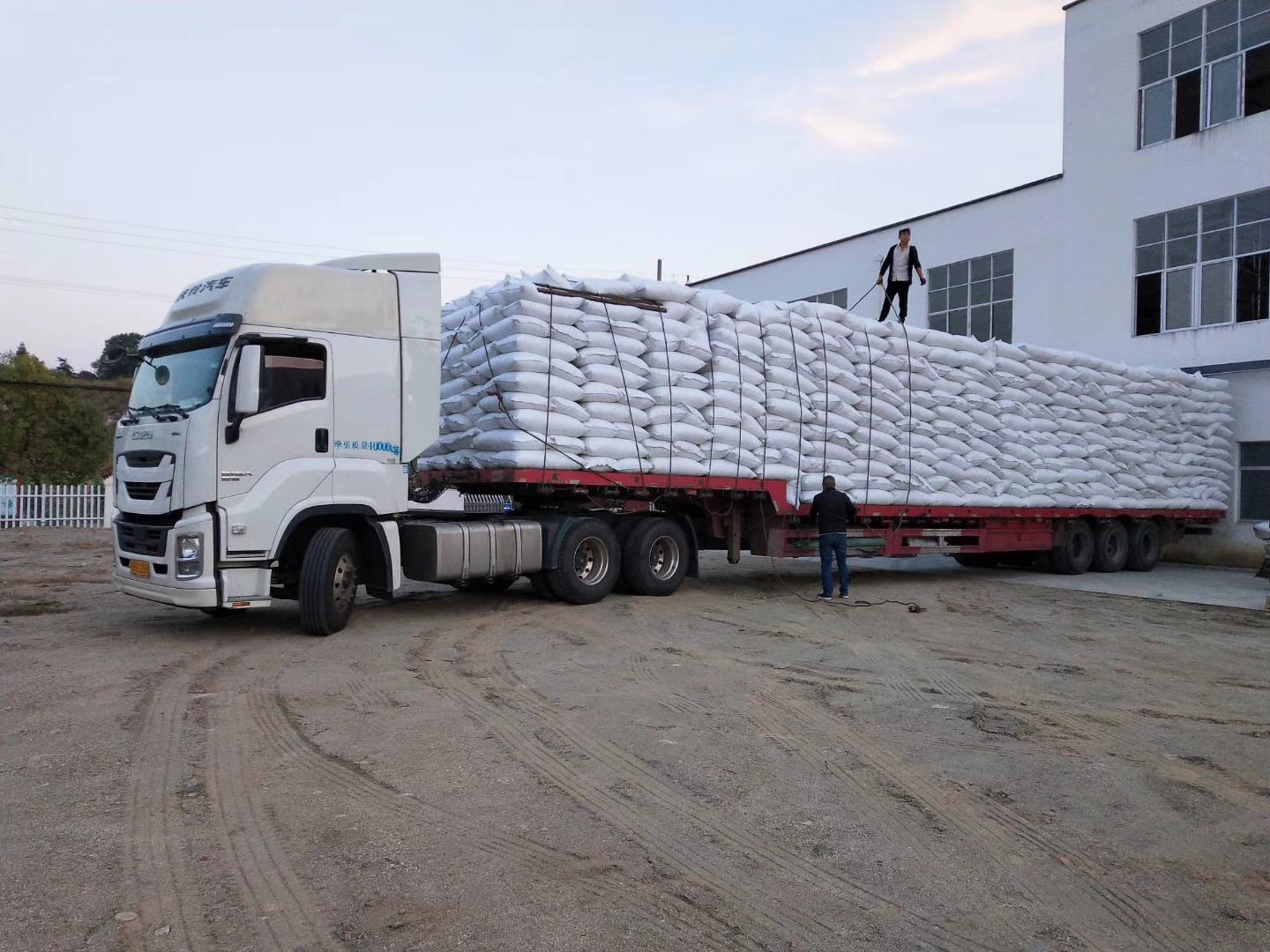

Transport Logistics

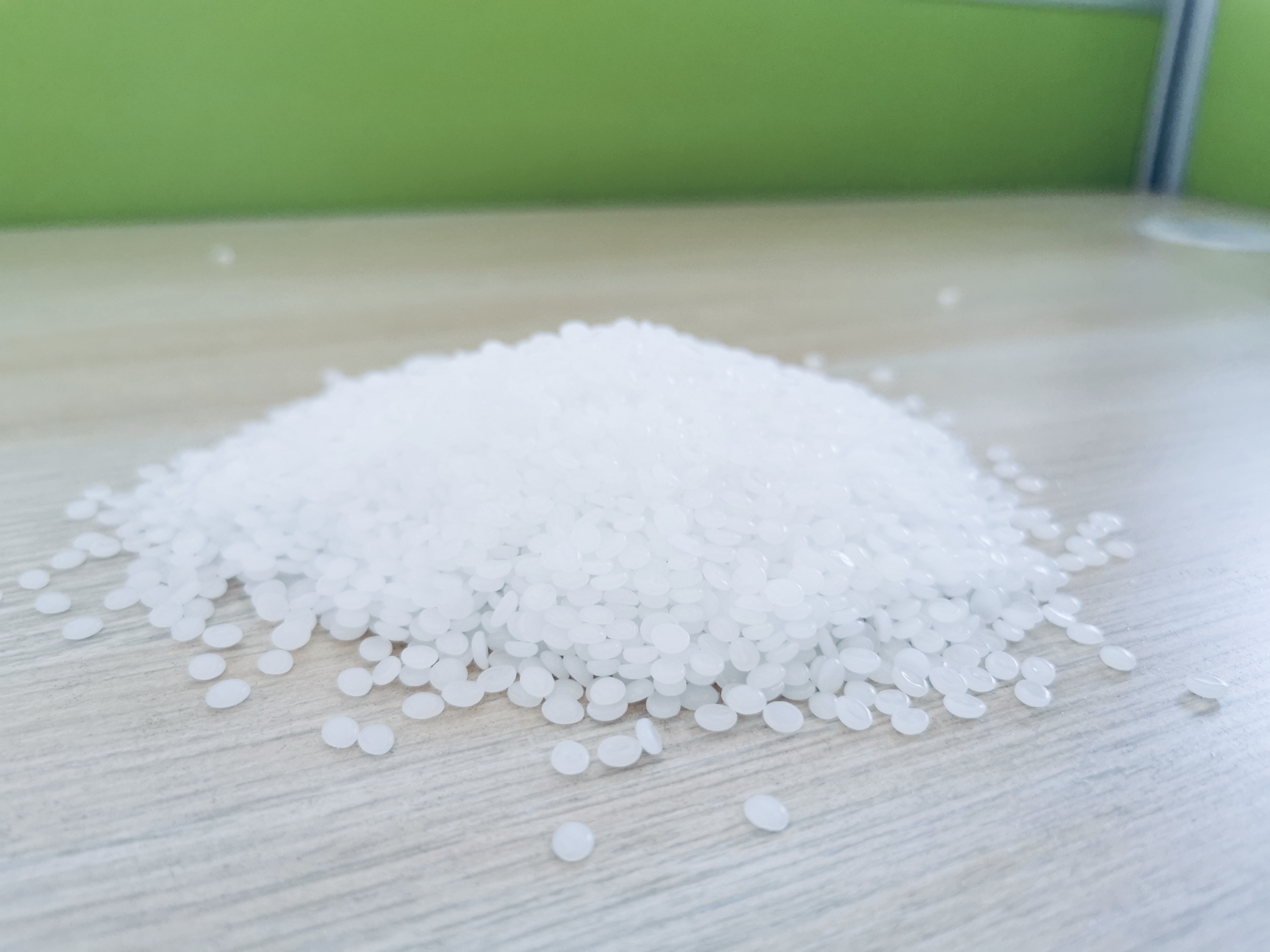

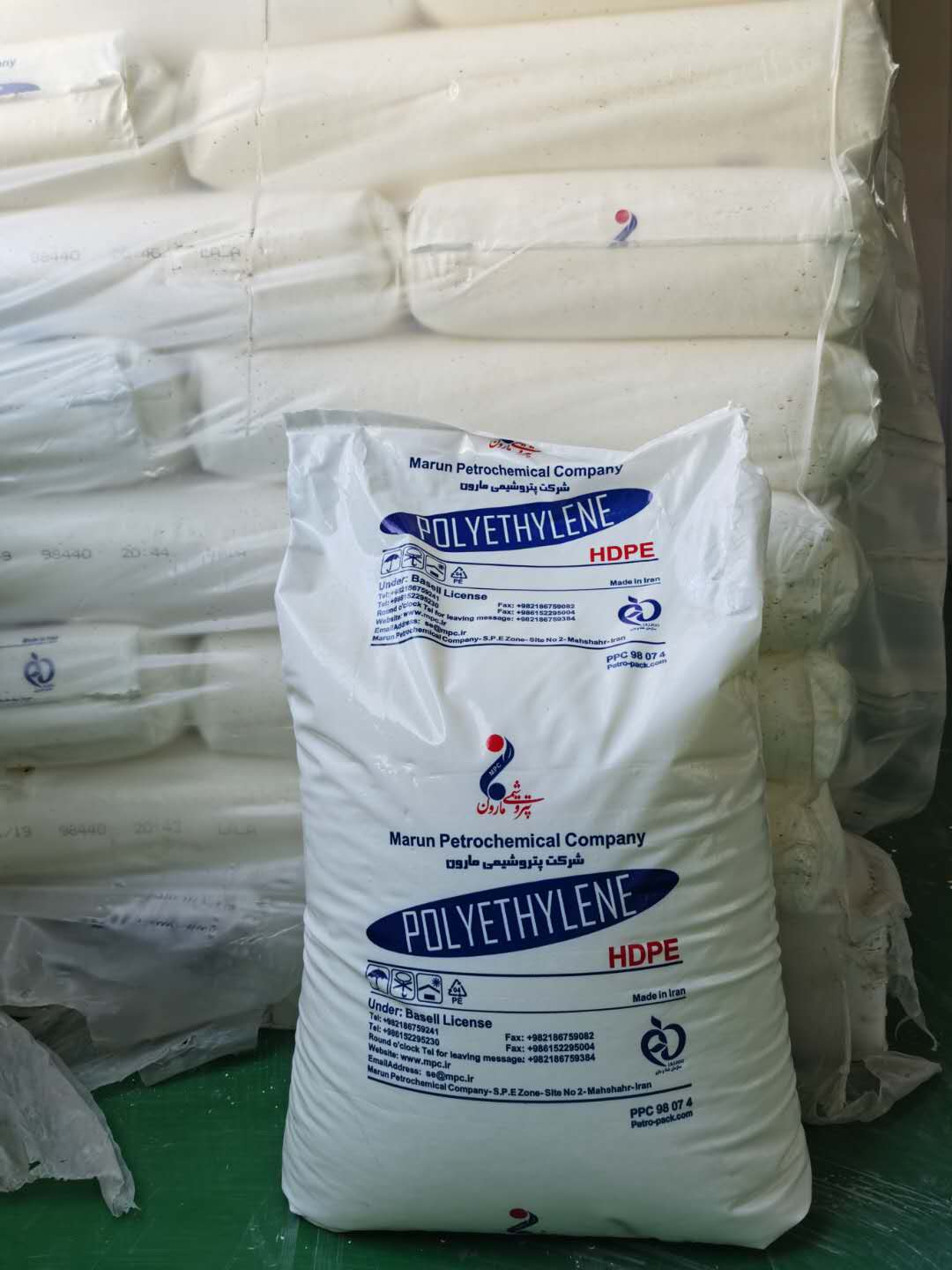

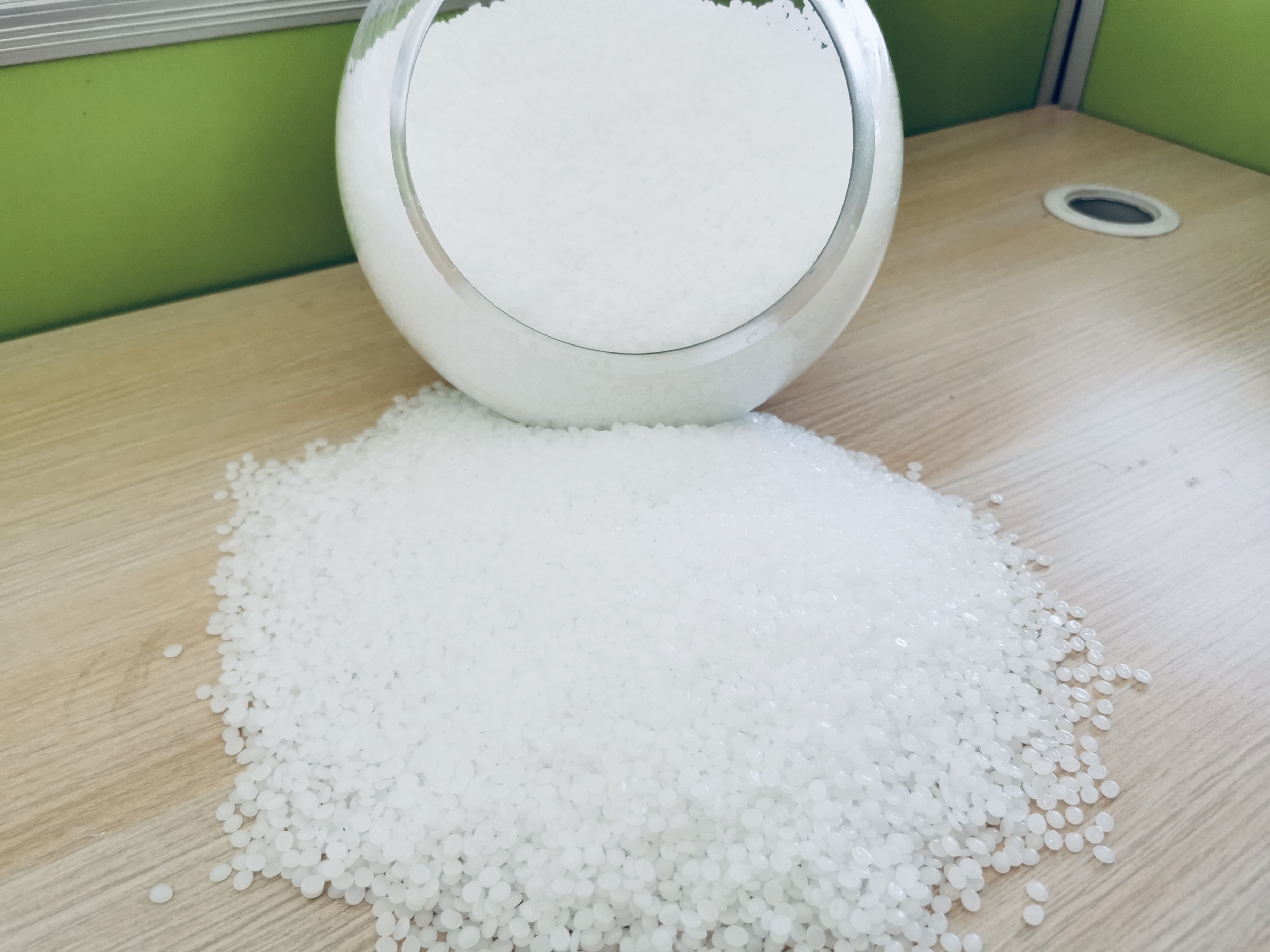

Raw Material Display

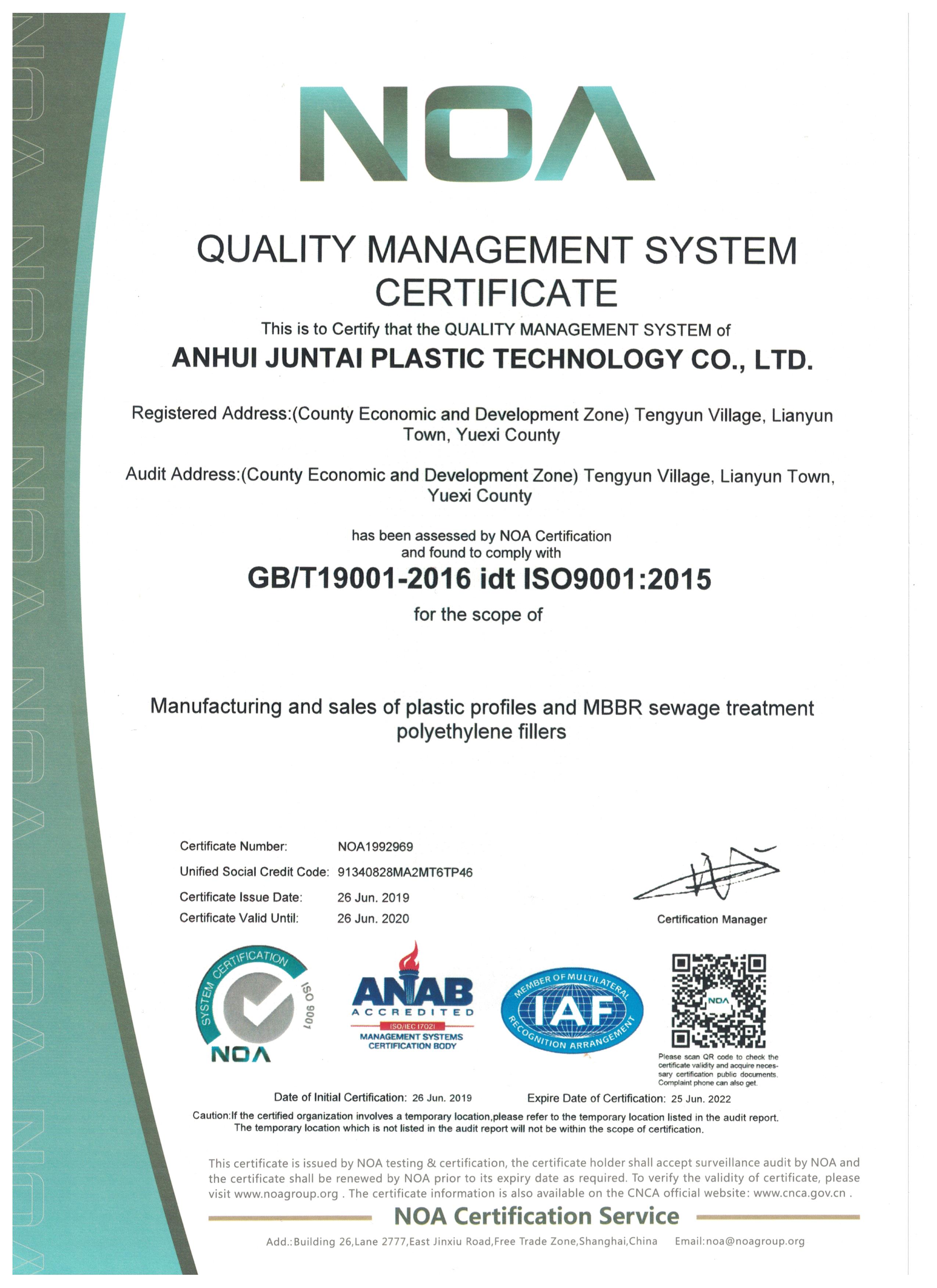

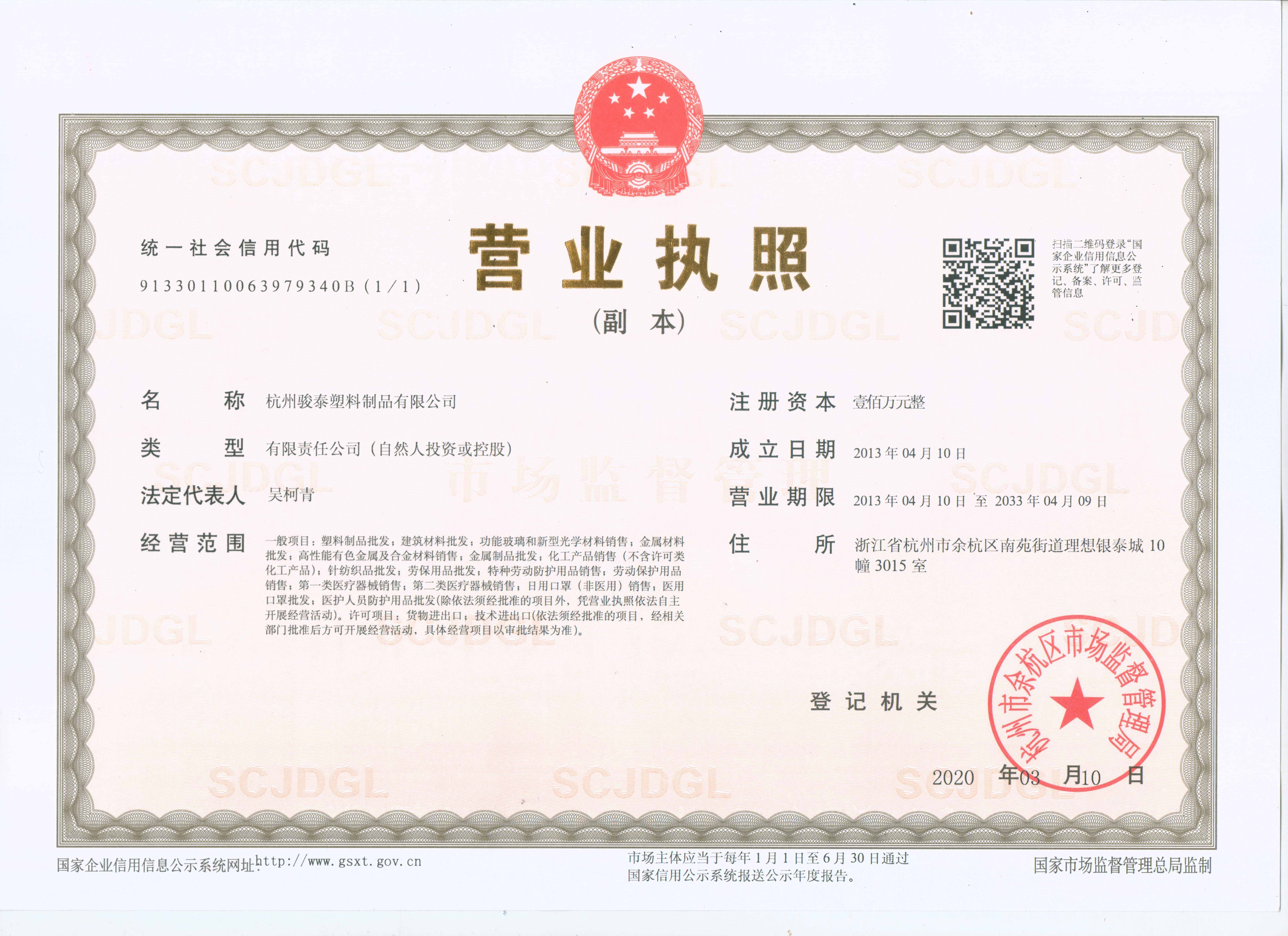

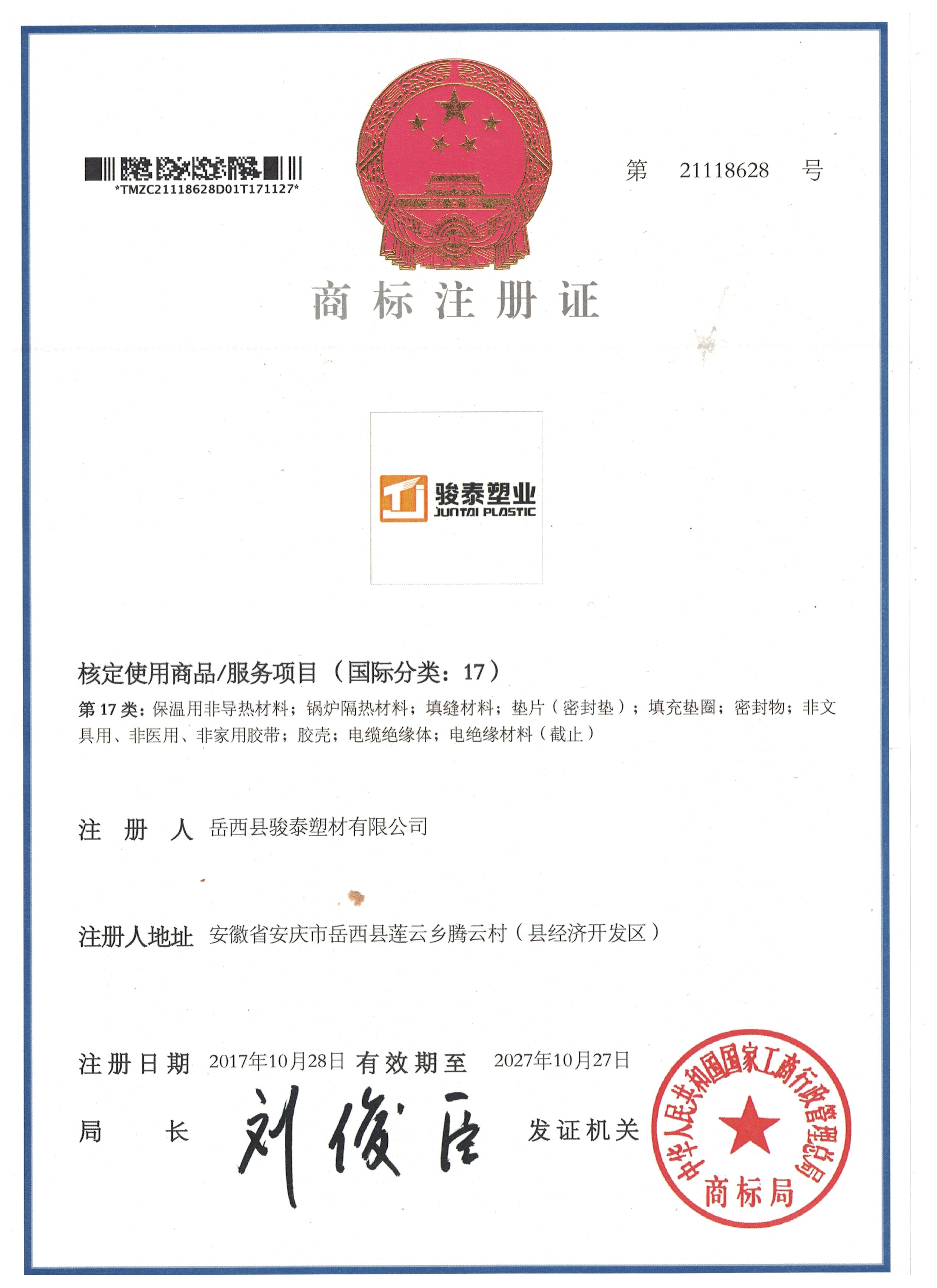

Certificate

Patent

FAQ

1.Can we get samples?
Yes, 1kg free samples can supply .
2.What's Your Delivery Time?
Normally 15-20days afater order confirm.
3.What is MOQ?
Our MOQ is 1CBM .
4.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
5.How About Container Quantity?
1*20GP can load 30CBM
1*40HQ can load 70CBM
6.What's Your Packing?
Packing is woven bag;0.1m3/1m3 per bag
